TLE4250-2G

The TLE4250-2G is a monolithic integrated low dropout voltage tracker in a tiny SMD package PG-SCT595-5 with excellent thermal resistance.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4250-2G
TLE4250-2G
ea.
Data Sheet

Product details

  • Accuracy
    0.5 %
  • Base Product
    TLE4250xx
  • Budgetary Price €/1k
    0.3
  • Dropout Voltage
    300 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear Trackers
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    4 V to 40 V
  • Output Current max
    50 mA
  • Output Voltage Type
    Tracking
  • Over Voltage Protection
    no
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    140 µA
  • Regulator Type
    Trackers
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE42502GHTSA1
Product Status active and preferred
Infineon Package
PG-SCT595-5
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SCT595-5
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Designed for automotive environments, this IC supplies off-board loads, protecting itself from overload, over temperature, reverse polarity, and output short circuit. It regulates supply voltages up to 45V with high accuracy, driving loads up to 50mA. To minimize quiescent current, switch the TLE4250-2 to stand-by mode using the adjust/enable input.

Features

  • 50 mA Output Current Capability
  • Tiny SMD-Package PG-SCT595-5
  • Low Output Tracking Tolerance
  • Stable with Small Ceramic O/P Capacitor
  • Low Dropout Voltage
  • Combined Reference / Enable Input
  • Maximum i/p V -42V ≤VI≤ +45V
  • Reverse Polarity Protection
  • Output Short Circuit Proof to Ground
  • Overtemperature Protection
  • Temperature R -40°C≤Tj≤ 150°C

Benefits

  • Efficient and accurate V replication
  • Robust tracking power supply

Diagrams

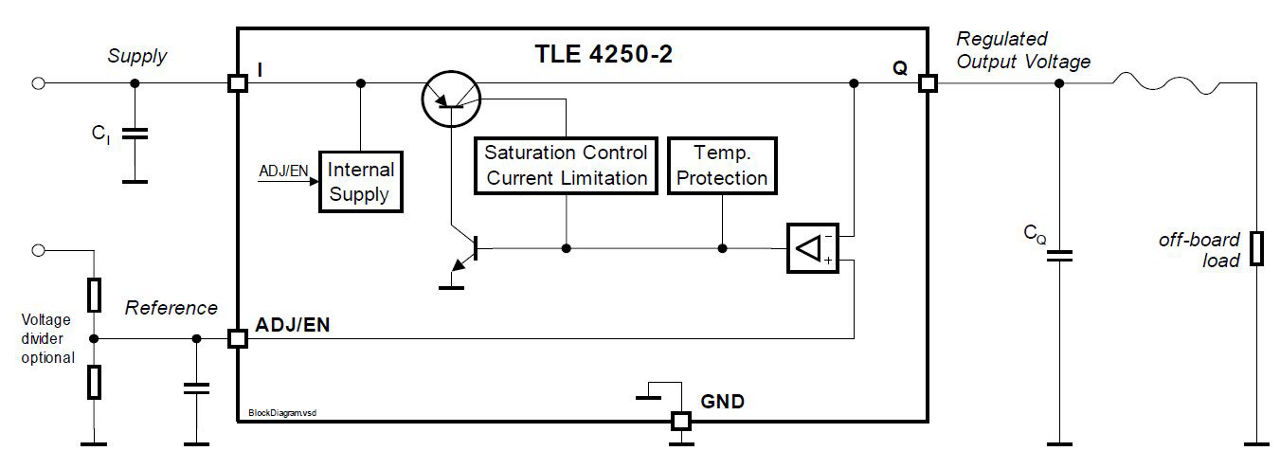

TLE4250-2-Blockdiagram
TLE4250-2-Blockdiagram
TLE4250-2-Blockdiagram TLE4250-2-Blockdiagram TLE4250-2-Blockdiagram
×
