TLE42344G

END OF LIFE
TLE42344G is a 5 V low dropout fixed voltage regulator in an PG-SOT223-4 package. The maximum output current is more than 100 mA.
Data Sheet
package
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE42344G
TLE42344G
View replacement
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    0.54, 0.54
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 45 V
  • Output Current max
    100 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    n.a
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    400 µA
  • Regulator Type
    General Purpose
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
OPN
TLE42344GHTSA1 TLE42344GHTMA1
Product Status discontinued discontinued
Infineon Package
PG-SOT223-4
PG-SOT223-4
Package Name SOT-223 SOT-223
Packing Size 1000 4000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level N/A 1
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free No No
RoHS Compliant Yes Yes
Infineon stock last updated:
View replacement
View replacement

Product Status discontinued
Infineon Package
PG-SOT223-4
Package Name SOT-223
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement

Product Status discontinued
Infineon Package
PG-SOT223-4
Package Name SOT-223
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement
The IC regulates an input voltage V I in the range 5.5 V < V I < 45 V to V Qrated = 5.0 V. The maximum output current is more than 100 mA. This IC is protected against shortcircuit and overheat by the integrated output current limitation and the overtemperature shutdown.TLE42644G is the available version of this product.

Features

  • Output voltage tolerance ≤ ±2%
  • Low dropout voltage
  • Output current up to 100 mA
  • Very low current consumption
  • Overtemperature shutdown
  • Output current limitation
  • Suitable for use in automotive electronics
  • Reverse polarity protection
  • Green Product (RoHS compliant)
  • AEC Qualified
  • Wide Temperature Range -40 °C ≤ T j  ≤ 150 °C

Benefits

  • Robust protection features
  • Wide input operation and temperature range

Diagrams

TLE42344-Application-Diagram
TLE42344-Application-Diagram

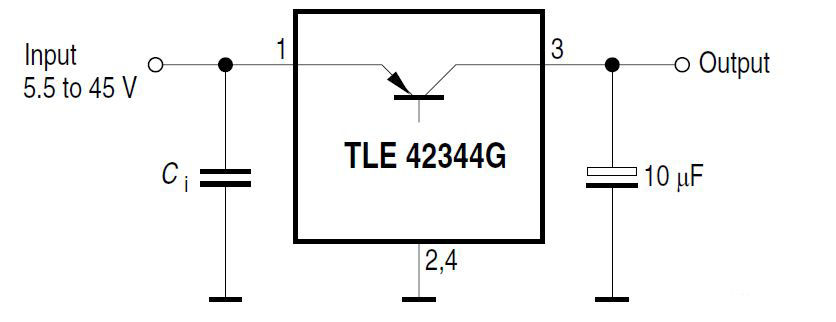

TLE42344-Application-Diagram TLE42344-Application-Diagram TLE42344-Application-Diagram

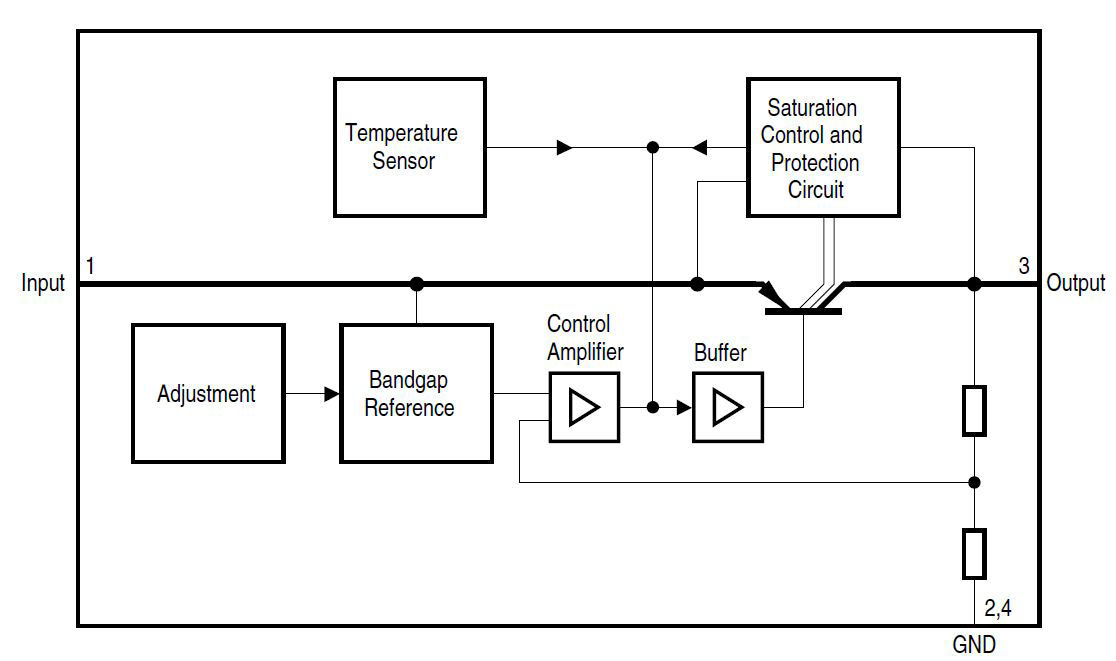

TLE42344-Block-Diagram TLE42344-Block-Diagram TLE42344-Block-Diagram
×
