SAK-TC387QP-160F300S AD

END OF LIFE
Data Sheet
package
board
software
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SAK-TC387QP-160F300S AD
SAK-TC387QP-160F300S AD
View replacement
Data Sheet

Product details

  • # of cores / lockstep cores
    4/2
  • A/D Input Lines
    100
  • Additional Features
    1Gbit/s Ethernet
  • ASIL/SIL support
    ASIL-D/ SIL-3
  • CAN Nodes
    12
  • Classification
    ISO 26262-compliant
  • DMA Channels
    128
  • DSP Functionality
    Yes
  • eMMC
    No
  • Floating Point Unit
    Yes
  • Hardware Accelerator
    No
  • I/O Operation Voltages range
    3.3 V to 5 V
  • LIN
    24
  • Number of ADC Modules
    9
  • On-chip Clock Generation
    Yes
  • On-chip Voltage Regulator
    Yes
  • Oscillator Watchdog
    Yes
  • Program Memory
    10 MByte
  • Real Time Clock
    Yes
  • SPI
    5
  • SRAM (incl. Cache)
    1568 kByte
  • Temperature
    -40°C to 125°C
  • Type of Memory
    Flash
  • Watchdog Timer
    Yes
OPN
TC387QP160F300SADKXUMA1
Product Status discontinued

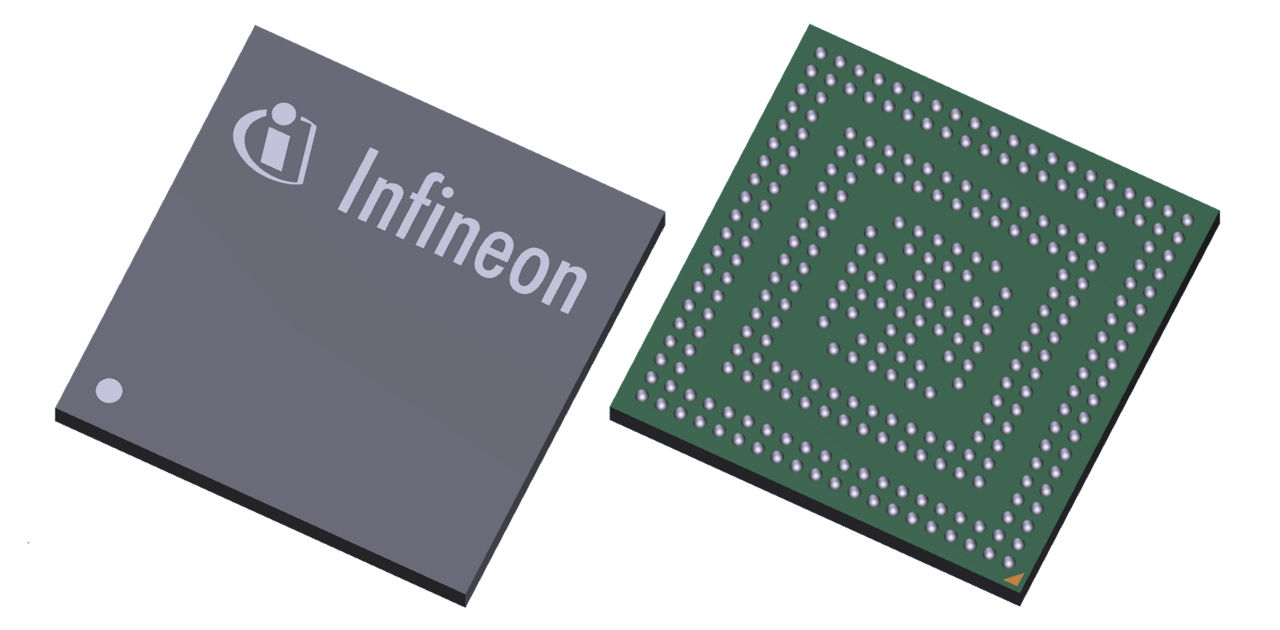

Infineon Package
PG-LFBGA-292
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
PG-LFBGA-292
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement
SAK-TC387QP-160F300S AE belongs to the AURIX™ TC38xQP family . AURIX™ second generation (TC3xx) comes back with an increase in performance, memory sizes, connectivity and more scalability to address the new automotive and industrialtrends and challenges. This family has more than 20 products to provide the most scalable portfolio of safety microcontrol­ler. In terms of performance, T38x offers 4 cores running at 300 MHz and up to 1.5 MBytes embedded RAM, and consuming below 2 W. Its mirrored embedded flash banks offers A/B swap capabilities.

Features

  • 4 TriCore™ running at 300 MHz (with 2 additional checker cores delivering 2700 DMIPS)
  • Supporting floating point and fix point with all cores
  • 10 MB flash/ECC protection
  • 1568 KB SRAM / ECC protection
  • 1 Gbit Ethernet
  • 12x CAN FD, 2x FlexRay, 24x LINs, 6x QSPI, 2x I²C, 25x SENT, 5x SPI, 1x HSSL, 3x MSC
  • eVita full HSM (ECC256 and SHA2)
  • LFBGA-292 package
  • ISO 26262 ASIL-D support
  • AUTOSAR 4.2 support
  • Single voltage supply 5 V or 3.3 V
  • 165°C junction temperature
  • Standby mode controller
  • Temperature :-40°C to 125°C

Benefits

  • Best-in-class performance enabling ASIL-D designs
  • Upward and downward scalable to the rest of AURIX™ TC3xx family
  • A/B swap software update over the air support
  • Easy migration from AURIX™ TC2xx   thanks to high software and hardware compatibility
