ITS4200S-ME-P

High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ITS4200S-ME-P
ITS4200S-ME-P
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.66
  • Channels
    1
  • Current Limit min
    1.4 A
  • Diagnostics
    n.a.
  • Family
    Classic PROFET™ Industrial
  • IL (Short Circuit Current)
    2.2 A
  • Load Current
    1.4 A
  • Mounting
    SMT
  • Nominal Load Current per channel (All channels active)
    1.4 A
  • Operating Temperature
    -40 °C to 125 °C
  • Planned to be available until at least
    2033
  • Ptot max
    1.4 W
  • Qualification
    Industrial
  • RDS (on) (@ Tj max) max
    320 mΩ
  • RDS (on) (@ Tj = 25°C)
    150 mΩ
  • Recommended Operating Voltage
    11 V to 45 V
  • toff (Turn OFF time) max
    150 µs
  • ton (Turn ON time) max
    100 µs
Recommended
OPN
ITS4200SMEPHUMA1
Product Status active
Infineon Package
PG-SOT223-4
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SOT223-4
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Current controlled input
  • Short circuit protection
  • Current limitation
  • Shutdown when undervoltage
  • Overvoltage protection (load dump)
  • Switching inductive loads
  • ESD- Protection
  • Loss GND and loss Vbb protection
  • Very low stand by current
  • Reverse battery protection
  • Improved electromagnetic compatibility

Benefits

  • Clamped Negative O/P for Inductive Loads
  • Very low standby current
  • Thermal shutdown with restart
  • ESD-Protection

Diagrams

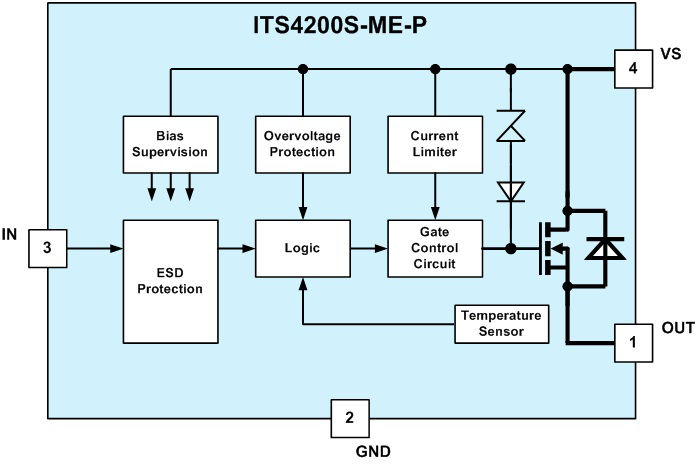

Blockdiagram_ITS4200S-ME-P
Blockdiagram_ITS4200S-ME-P
