PG-SOT223-4-34

Package details

  • Package Material
    PG
  • Package Family
    PG-SOT223
  • Terminals
    4
  • Variant
    34
  • Exposed Paddle
    No
  • Body Length (mm)
    6.5
  • Body Width (mm)
    3.5
  • Min. Terminal Pitch (mm)
    2.3
  • TAPE & REEL
    Pieces/Reel
    Reels/Box
    Reel diameter (mm)

    4000
    1
    330
Infineon small outline transistor (SOT), diode (SOD), as well as semi conductor (SC) and semi conductor transistor (SCT) packages are offered various as families. The lead frame based packages can feature symmetric or non-symmetric pinout configurations with a maximum pin count of up to 6. The dual row gullwing shaped leads allow for high-throughput board mounting using surface mount technology (SMT). The lead construction allows for high integration levels, while providing the reliability of the gullwing shape. Typical products are transistors, diodes, MOSFET and bias controllers, driver ICs, surge protection, switches, and more.

Image Gallery

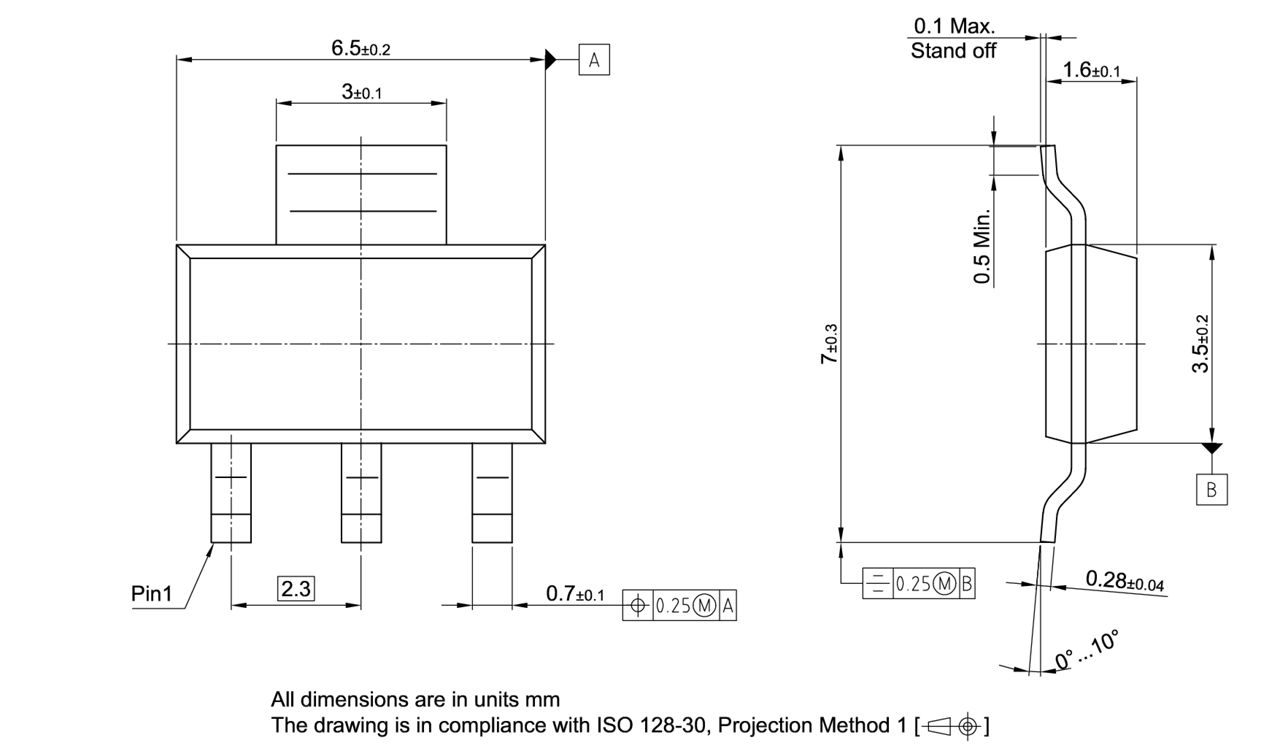

PG-SOT223-4-34_Package Outline
PG-SOT223-4-34_Package Outline
PG-SOT223-4-34_Package Outline PG-SOT223-4-34_Package Outline PG-SOT223-4-34_Package Outline

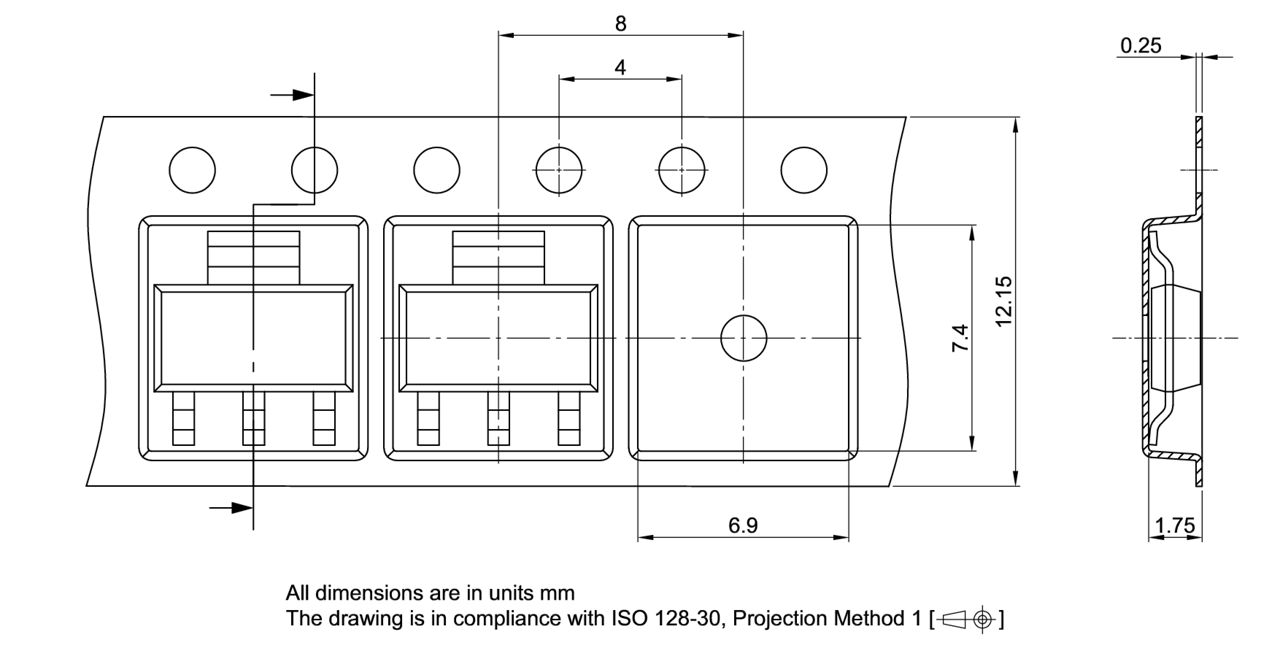

PG-SOT223-4-34_Tape and Reel PG-SOT223-4-34_Tape and Reel PG-SOT223-4-34_Tape and Reel

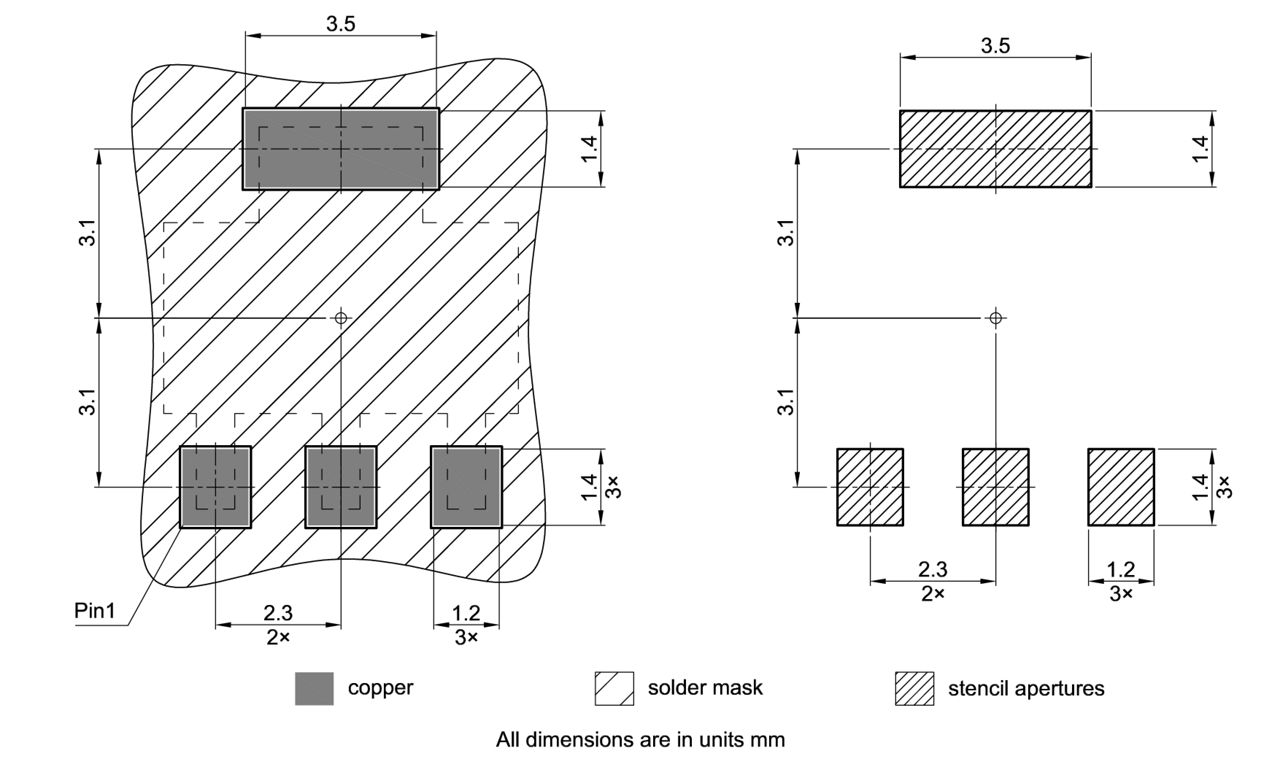

PG-SOT223-4-34_Footprint Drawing PG-SOT223-4-34_Footprint Drawing PG-SOT223-4-34_Footprint Drawing

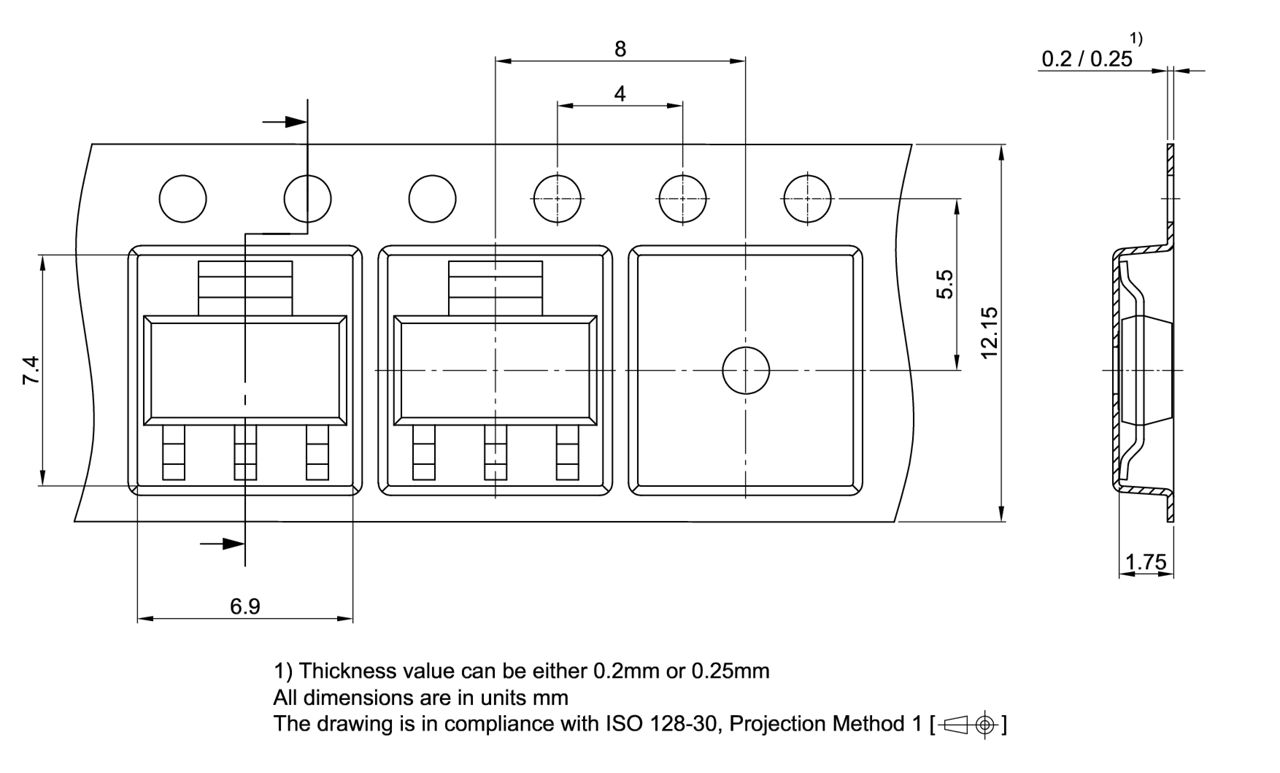

PG-SOT223-4-34_Tape and Reel_01 PG-SOT223-4-34_Tape and Reel_01 PG-SOT223-4-34_Tape and Reel_01
×
