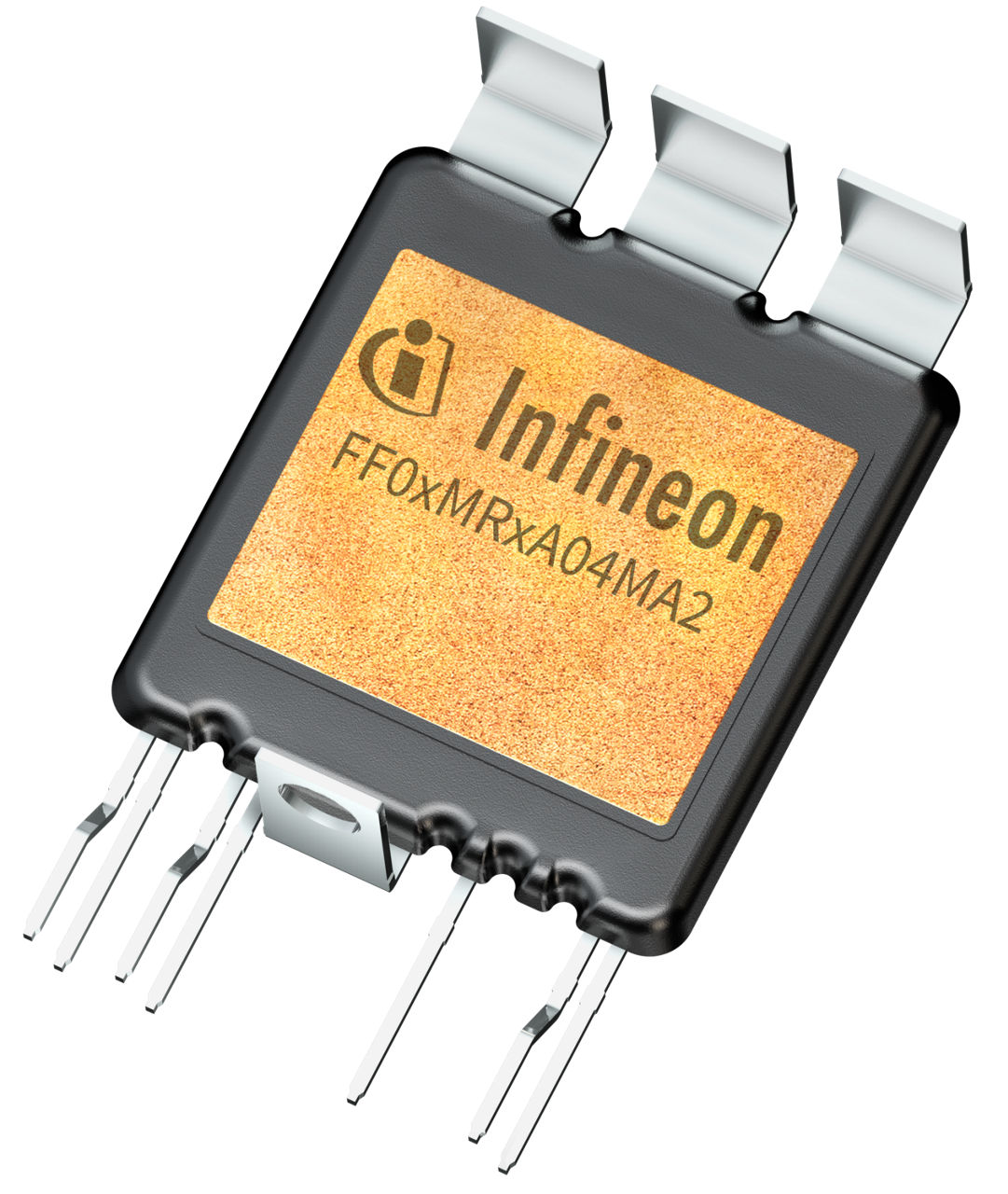

FF06MR12A04MA2

The HybridPACK™ DSC CoolSiC™ G2 module is a compact B2-bridge power module (1200 V / 190 A)
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF06MR12A04MA2
FF06MR12A04MA2
Data Sheet

Product details

  • Applications
    eMobility ; Hybrid Electric Vehicles ; Drives ; CAV ; Aircon
  • Configuration
    Dual, Half bridge
  • Cooling Concept
    Double-sided cooling
  • Features
    Double Side Cooled
  • Housing
    HybridPACK™ DSC
  • ID,nom
    190 A
  • Planned to be available until at least
    2040
  • Qualification
    Automotive
  • Technology
    CoolSiC™ G2
  • Tvj,op
    175 °C
  • VCES (Tvj=25°C typ) max
    1200 V
  • Voltage Class max
    1200 V
Recommended
OPN
FF06MR12A04MA2AKSA1
Product Status active and preferred
Infineon Package
PG-MDIP-11
Package Name N/A
Packing Size 120
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-MDIP-11
Package Name -
Packing Size 120
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The power module implements the second generation CoolSiC™ Automotive MOSFET 1200 V, optimized for electric drive train applications, from mid- to high-range automotive power classes to high-range commercial, construction, and agricultural vehicles

Features

  • VDSS = 1200 V
  • IDN = 190 A / IDRM = 380 A
  • Low inductive design ≤ 8 nH
  • Low RDS (on)
  • Low switching losses
  • Low Qg and Crss
  • New semiconductor material - silicon carbide
  • Tvj,op = 175°C

Benefits

  • 4.25 kV DC 1 second insulation
  • Compact design
  • High power density
  • AlN Substrate with low thermal resistance
  • Integrated NTC temperature sensor
  • RoHS compliant
  • UL 94 V0 module frame

Applications
