Active and preferred
RoHS Compliant

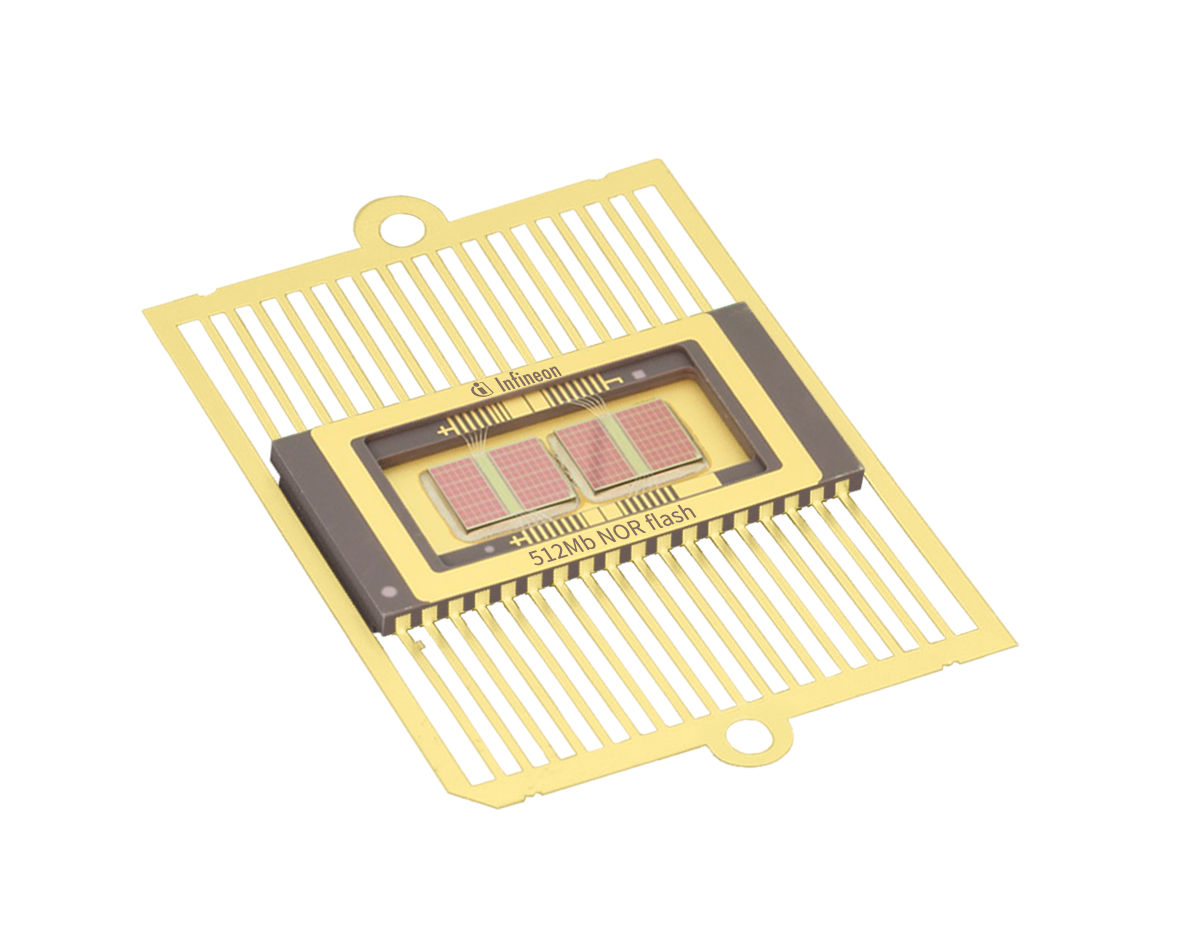

CYRS16B512-133FZMB

Data Sheet
package
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYRS16B512-133FZMB
CYRS16B512-133FZMB
Data Sheet

Product details

  • Density
    512 MBit
  • Device weight
    3878.7 mg
  • Family
    FL-L
  • Interface Bandwidth
    133 MByte/s
  • Interface Frequency (SDR/DDR) (MHz)
    133 / -
  • Interfaces
    Dual-Quad SPI
  • Lead Ball Finish
    Ni/Au
  • Operating Temperature
    -55 °C to 125 °C
  • Operating Voltage
    3 V
  • Peak Reflow Temp
    220 °C
  • Currently planned availability until at least
    2030
  • Qualification
    Military
Recommended
OPN
CYRS16B512-133FZMB
Product Status active and preferred
Infineon Package
CG-FP-36
Package Name FLATPACK-36 (002-26946)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
CG-FP-36
Package Name FLATPACK-36 (002-26946)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon’s radiation tolerant, the CYRS16B and CYPT16B, serial NOR Flash family offers the industry’s highest performance, small footprint memory devices that are QML-V equivalent qualifiedOur radiation tolerant NOR flash memories are low pin count, low power and offer flexibility, reliability and performance well beyond ordinary serial flash devices. The industry standard QSPI interface is high performance and simple to use with broad ecosystem support.

Features

  • 512 Mb density
  • QSPI / dual QSPI
  • 50MHz SDR (read) clock rate
  • 133MHz SDR fast dual quad read clockrate
  • 66MHz DDR (quad read) clock rate
  • 1000 progr/sector erase endurance cycles
  • 100-year data retention
  • 2.0 V–3.6 V operating voltage range
  • 270ms typical sector erase time 64 KByte
  • 2.7 V to 3.6 V operating voltage range
  • Low operating current (10 mA max)
  • –55°C to +125°C military temp grade

Applications
