Active and preferred
RoHS Compliant

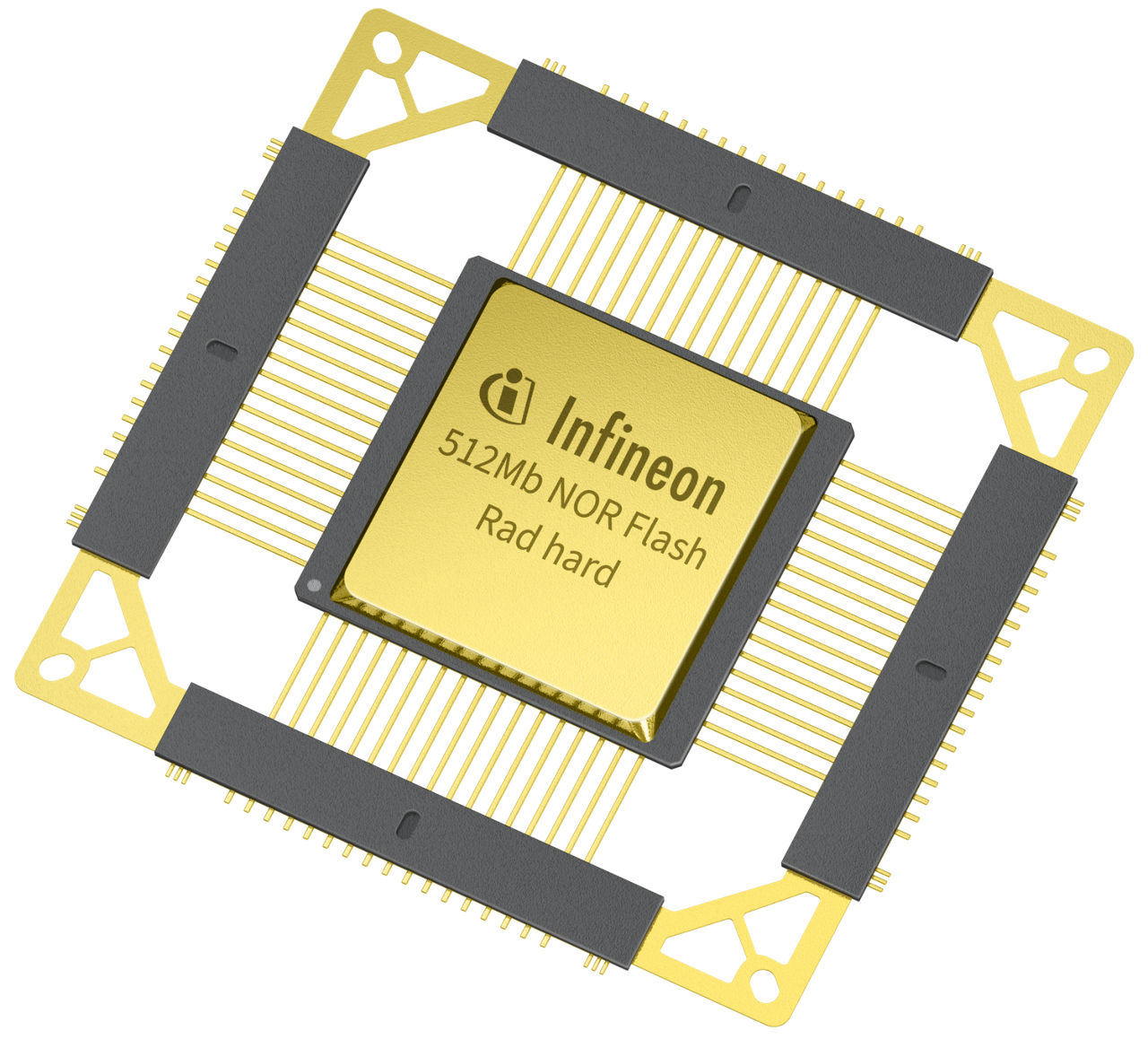

CYPT17B512-133UZMB

Infineon offers the space industry’s first QML qualified, radiation hardened by design, quad SPI (QSPI) NOR Flash.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPT17B512-133UZMB
CYPT17B512-133UZMB
Data Sheet

Product details

  • Density
    512 MBit
  • Device weight
    9600 mg
  • Family
    NOR
  • Frequency
    133 MHz
  • Interfaces
    QSPI
  • Lead Ball Finish
    Gold kover
  • Operating Temperature
    -55 °C to 125 °C
  • Operating Voltage
    2.97 V to 3.63 V
  • Organization (X x Y)
    x4
  • Package
    PG-TQFP-100-800
  • Peak Reflow Temp
    220 °C
  • Qualification
    Military
Recommended
OPN
CYPT17B512133UZMBBDSA1
Product Status active and preferred
Infineon Package
CG-FP-68
Package Name FLATPACK-68 (002-31076)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
CG-FP-68
Package Name FLATPACK-68 (002-31076)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Our rad hard NOR flash, is the first in its family from Infineon, offering the highest performance, density, radiation, and single event effects (SEE) performance combination for space FPGA boot code and configuration image storage solutions for satellites.

Features

  • 512 Mbit density, QSPI at 133 MHz
  • 10K program/erase cycle
  • 10-year data retention @ 125ºC
  • 1.8 V / 3.3 V I/O support
  • 68-pin CQFP package
  • PROTOTYPE
  • Flight devices, order CYRS17B512-133UZMB
  • DLAM qualified 5962-21222 coming soon!

Applications
