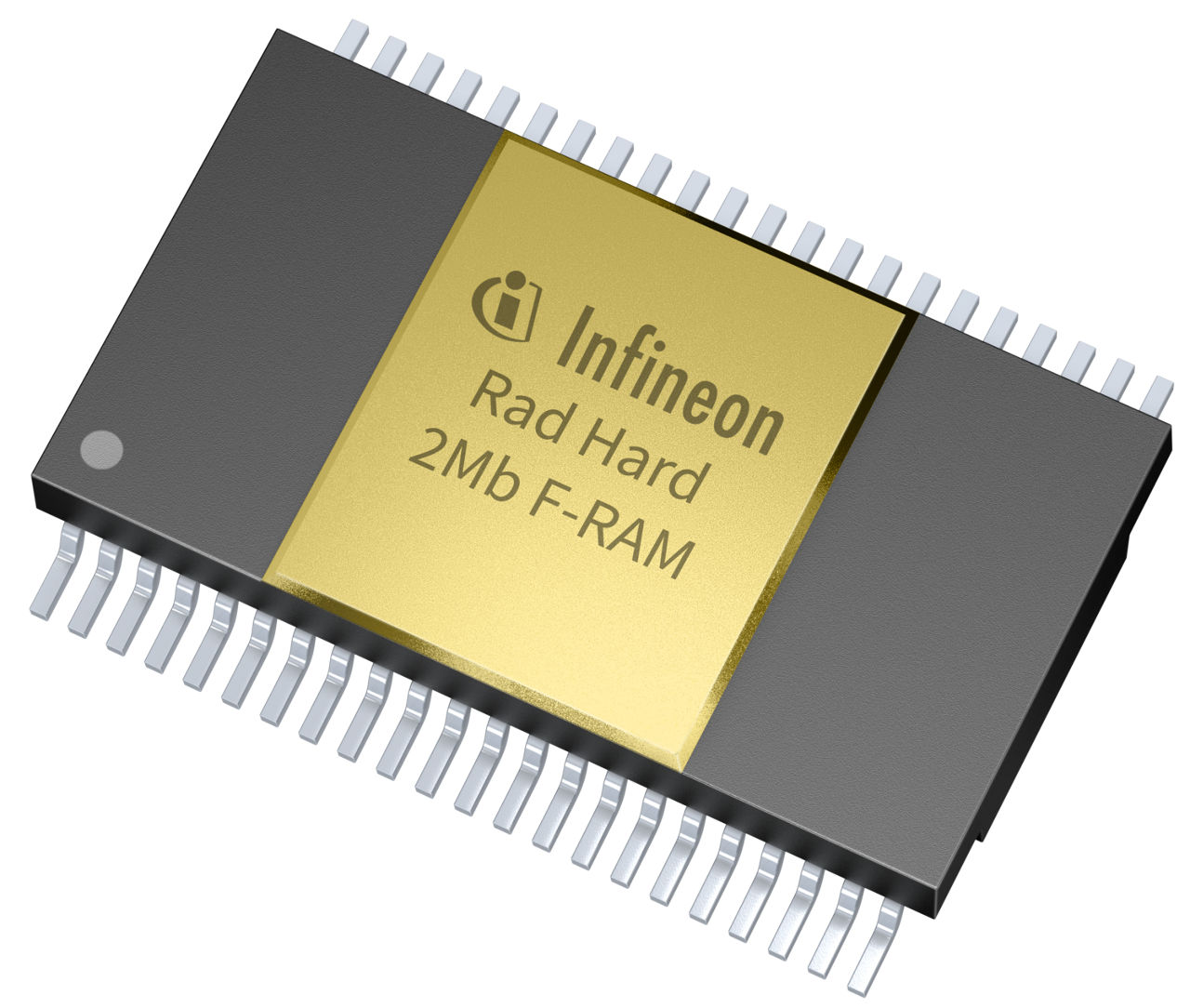

CYPT15B102N-GGMB

Infineon’s radiation hardened 2 Mb non-volatile Ferroelectric RAM (F-RAM) memory offers the utmost reliability and performance for extreme environments.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPT15B102N-GGMB
CYPT15B102N-GGMB
Data Sheet

Product details

  • Density
    2 MBit
  • Device weight
    1716.9 mg
  • Family
    F-RAM
  • Inductance
    Parallel
  • Lead Ball Finish
    Au
  • Operating Temperature
    -55 °C to 125 °C
  • Operating Voltage
    2 V to 3.6 V
  • Organization (X x Y)
    128Kx16
  • Peak Reflow Temp
    260 °C
  • Planned to be available until at least
    2033
  • Qualification
    Military
Recommended
OPN
CYPT15B102N-GGMB
Product Status active and preferred
Infineon Package CG-FP-44
Package Name CERAMIC-TSOP-44 (002-33895)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package CG-FP-44
Package Name CERAMIC-TSOP-44 (002-33895)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Our rad hard F-RAM is one of the industry’s lowest power, non-volatile memory solutions that is Single Event Upset (SEU) immune and virtually unlimited endurance. Infineon’s instant non-volatile write technology and greater than 100-year data retention provides the highest reliability for space applications. For flight devices, order DLAM QML-V part 5962R2321301VXC

Features

  • 2 Mb density, (128K x 16)
  • 10-trillion read/write cycles
  • 120 years data retention at +85°C
  • Low programming voltage (2V)
  • 2.0 V–3.6 V operating range
  • Low operating current (20 mA max)
  • –55°C to +125°C military grade
  • 44-pin ceramic TSOP (CTSOP)
  • Prototype for flight devices
