BTS81000-SSGI-6ET

6ch smart HS switch w/ SPI | 12 V | 133 mΩ | 1 A / channel | Digital diagnosis | Cap. load switching | ISO 26262-compl. | PG-TFDSO-16 | SPOC™ Smart Guard
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS81000-SSGI-6ET
BTS81000-SSGI-6ET
Data Sheet

Product details

  • Certifications
    ISO 26262-compliant
  • Channels
    6
  • Configurable overcurrent protection range
    0.14 A to 1.85 A
  • Extended operating voltage range
    3.5 V to 28 V
  • Family
    SPOC™ Smart Guard 12V
  • Mounting
    SMT
  • Nominal Load Current per channel
    1 A
  • Operating Temperature min
    -40 °C
  • Operating Temperature max
    150 °C
  • Planned to be available until at least
    2039
  • RDS (on) (@ Tj = 25°C)
    133 mΩ
  • RDS (on) (@ Tj = 150°C) max
    230 mΩ
  • Recommended Operating Voltage range
    4.1 V to 18 V
Recommended
OPN
BTS81000SSGI6ETXUMA1
Product Status active and preferred
Infineon Package
PG-TFDSO-16
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TFDSO-16
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

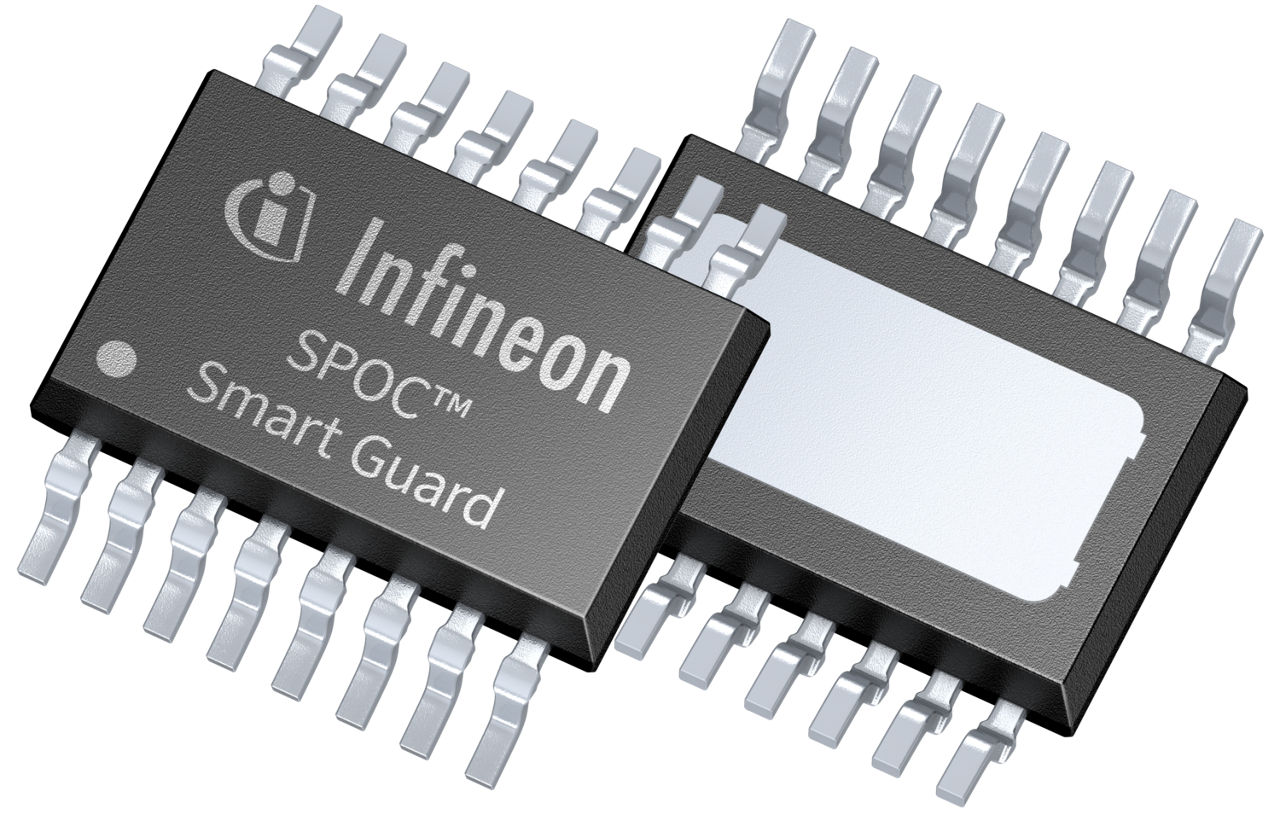

The BTS81000-SSGI-6ET, part of the SPOC™ Smart Guard family, is a 6-channel power controller with SPI, in a small package, optimized for ADAS and Power Distribution. Its main features include enhanced digital diagnosis, adjustable overcurrent limitation per channel, and limp home & idle mode. This 133 mΩ variant can drive currents of up to 1 A per channel. The switches are ISO 26262 compliant and ideal for modern vehicle power distribution systems.

Features

  • Automotive qualified, AEC-Q100
  • ISO 26262-compliant
  • Capacitive load switching
  • Adjustable current limitation (per ch.)
  • System & self-protection
  • Digital diagnosis incl. current sense
  • Limp home mode & idle mode
  • Configurable restart strategy
  • Small TFDSO-16 package

Benefits

  • High flexibility and configurability
  • PCB space savings
  • Support of active during parking
  • Support of predictive maintenance
  • Pin and footprint compatibility
  • ISO 26262-compliant

Applications

Documents

Documents

Design resources

Partner solutions

Developer community
