BGSX24MU16

High Power DP4T Cross Switch
Data Sheet

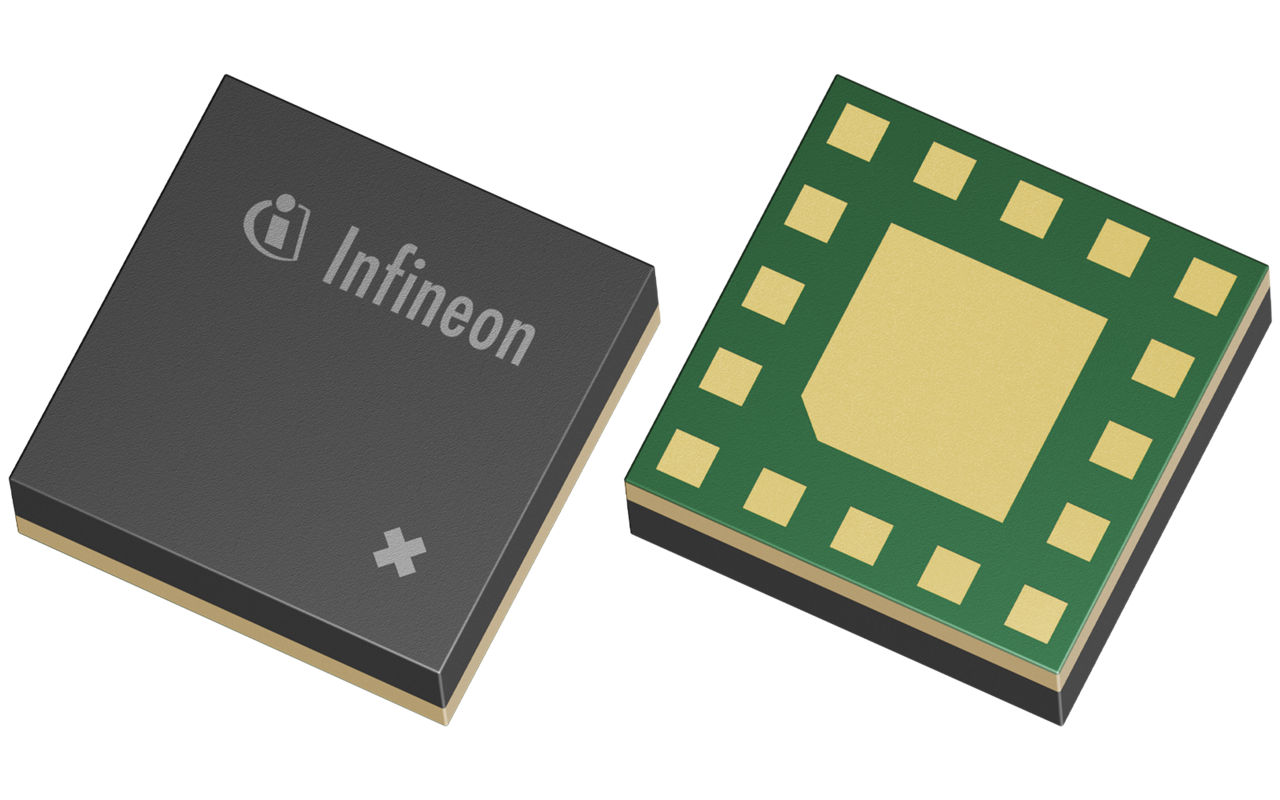

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGSX24MU16
BGSX24MU16
Data Sheet

Product details

  • Control Interface
    MIPI
  • Frequency Range
    0.1 - 5.0 GHz
  • Size
    2.0 x 2.0 mm²
  • Switch Type
    DP4T
OPN
BGSX24MU16E6327XTSA1
Product Status not for new design
Infineon Package
ULGA-16-1
Package Name N/A
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package
ULGA-16-1
Package Name -
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The BGSX24MU16 RF CMOS switch is specifically designed for LTE and WCDMA quadruple antenna applications. This DP4T offers low insertion loss and low harmonic generation. The switch is controlled via a MIPI RFFE controller. The on-chip controller allows power-supply voltages from 1.65 to 1.95 V. The switch features direct-connect-to-battery functionality and DC-free RF ports. Unlike GaAs technology, external DC blocking capacitors at the RF Ports are only required if DC voltage is applied externally. The BGSX24MU16 RF Switch is manufactured in Infineon’s patented MOS technology, offering the performance of GaAs with the economy and integration of conventional CMOS including the inherent higher ESD robustness. The device has a very small size of only 2.0 x 2.0 mm2 and a maximum thickness of 0.59 mm.

Features

  • RF CMOS DP4T antenna cross switch with power handling capability of up to 36.5 dBm
  • Suitable for multi-mode LTE and WCDMA quadruple antenna applications
  • Low insertion loss and harmonics generation
  • 0.1 to 5.0 GHz frequency coverage
  • High port-to-port-isolation
  • No blocking capacitors required if no DC applied on RF lines
  • Integrated MIPI RFFE interface operating in 1.65 to 1.95V voltage range
  • Software programmable MIPI RFFE USID
  • Leadless and halogen free package PG-ULGA-16-1 with lateral size of 2.0 mm x 2.0 mm and thickness of 0.59 mm
  • No power supply decoupling required
  • High EMI robustness
  • RoHS and WEEE compliant package
