6EDL04I06NC

600 V three-phase gate driver IC bare die with integrated bootstrap diode, over current protection, enable and fault reporting
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

6EDL04I06NC
6EDL04I06NC
Data Sheet

Product details

  • Channels
    6
  • Configuration
    Three Phase
  • Input Vcc
    13 V to 17.5 V
  • Isolation Type
    Functional levelshift SOI (Silicon On Insulator)
  • Output Current (Sink)
    0.375 A
  • Output Current (Source)
    0.17 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    490 ns
  • Turn On Propagation Delay
    530 ns
  • VBS UVLO (Off)
    9.8 V
  • VBS UVLO (On)
    11.7 V
  • VCC UVLO (Off)
    9.8 V
  • VCC UVLO (On)
    11.7 V
  • Voltage Class
    600 V
Recommended
OPN
6EDL04I06NCX1SA1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type WAFER SAWN
Moisture Level N/A
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type WAFER SAWN
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
EiceDRIVER™ 600 V three phase gate driver IC bare die for MOS-transistors and IGBTs with 0.17 A source and 0.375 A sink currents and LS-SOI technology.

Features

  • Thin-film-SOI-technology
  • Integrated bootstrap diode
  • Maximum blocking voltage +600V
  • Separate control for six drivers
  • CMOS and LSTTL compatible input
  • Cross-conduction prevention
  • OCP and UVLO protection

Benefits

  • Space saving package
  • Improved energy efficiency

Diagrams

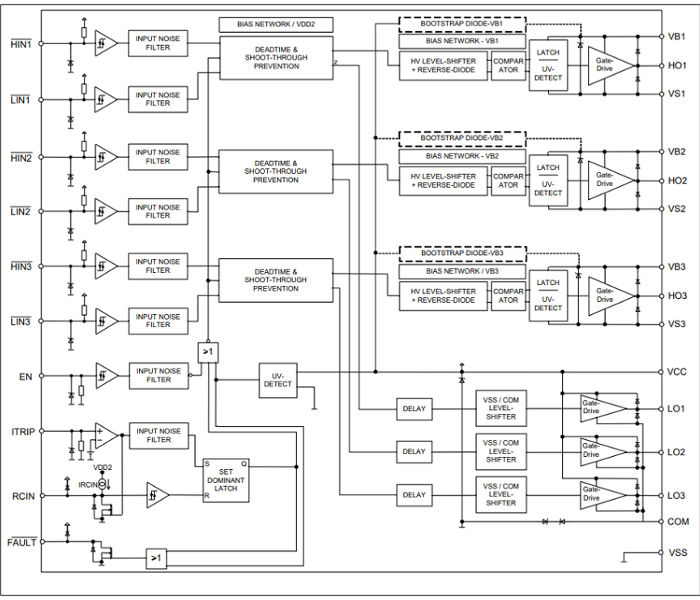

6ED003L06-C2-6EDL04I06NC
6ED003L06-C2-6EDL04I06NC
6ED003L06-C2-6EDL04I06NC 6ED003L06-C2-6EDL04I06NC 6ED003L06-C2-6EDL04I06NC
×
