5962F2122202VYC

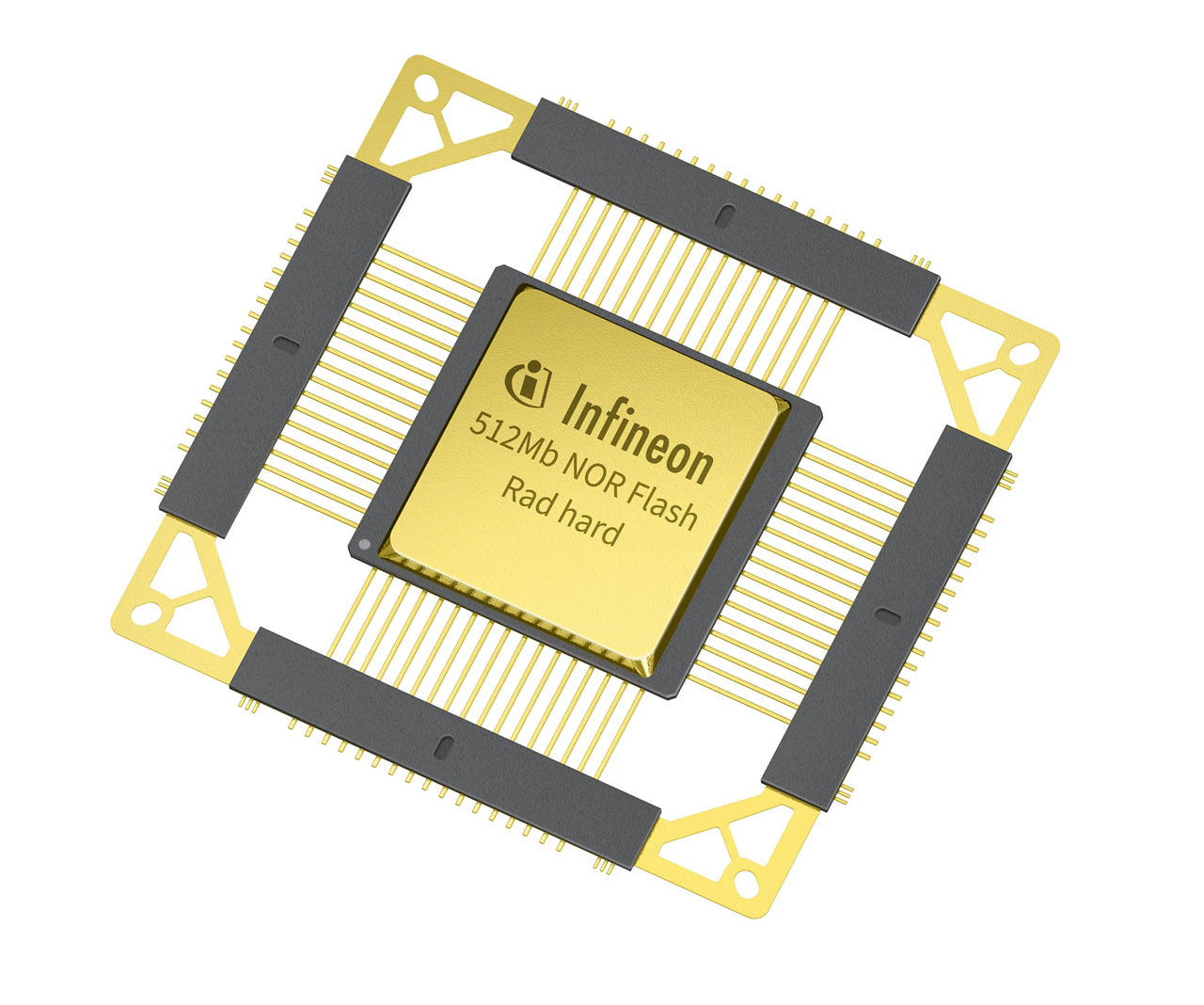

Infineon offers the space industry’s first DLAM QML-V qualified, radiation hardened by design, quad SPI (QSPI) NOR Flash.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

5962F2122202VYC
5962F2122202VYC
Data Sheet

Product details

  • Density
    512 MBit
  • Device weight
    9600 mg
  • Family
    NOR
  • Frequency
    133 MHz
  • Interfaces
    QSPI
  • Operating Temperature
    -55 °C to 125 °C
  • Operating Voltage
    2.97 V to 3.63 V
  • Organization (X x Y)
    x4
  • Currently planned availability until at least
    2035
  • Qualification
    Military
Recommended
OPN
5962F2122202VYCBDSA1
Product Status active and preferred
Infineon Package CG-FP-68
Package Name FLATPACK-68 (002-31076)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package CG-FP-68
Package Name FLATPACK-68 (002-31076)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Our rad hard NOR flash, is the first in its family from Infineon, offering the highest performance, density, radiation, and single event effects (SEE) performance combination for space FPGA boot code and configuration image storage solutions for satellites.

Features

  • 512Mb density, QSPI at 125MHz
  • 10k cycle write/infinite read endurance
  • 10-year data retention @ 125ºC
  • 1.8 V / 3.3 V I/O support
  • 68-pin CQFP package
  • DLAM QML qualified SMD 5962-21222
  • Radiation performance
  • TID > 300krad
  • SEU IMMUNE
  • SEL > 80 LET MeV.cm2/mg [LET]
  • SEFI 4.75e-5 err/dev.day

Benefits

  • Superior radiation performance
  • 512Mbit density, 133MHz QSPI interface
  • TQFP plastic package option
  • Lower weight for SWaP-C benefits
  • DLAM QML-P certification
  • Highest reliability standard (QML-P)

Applications
