2EDN7534U

EiceDRIVER™ 2EDN Gate Driver for MOSFETs and WBG switches
Data Sheet

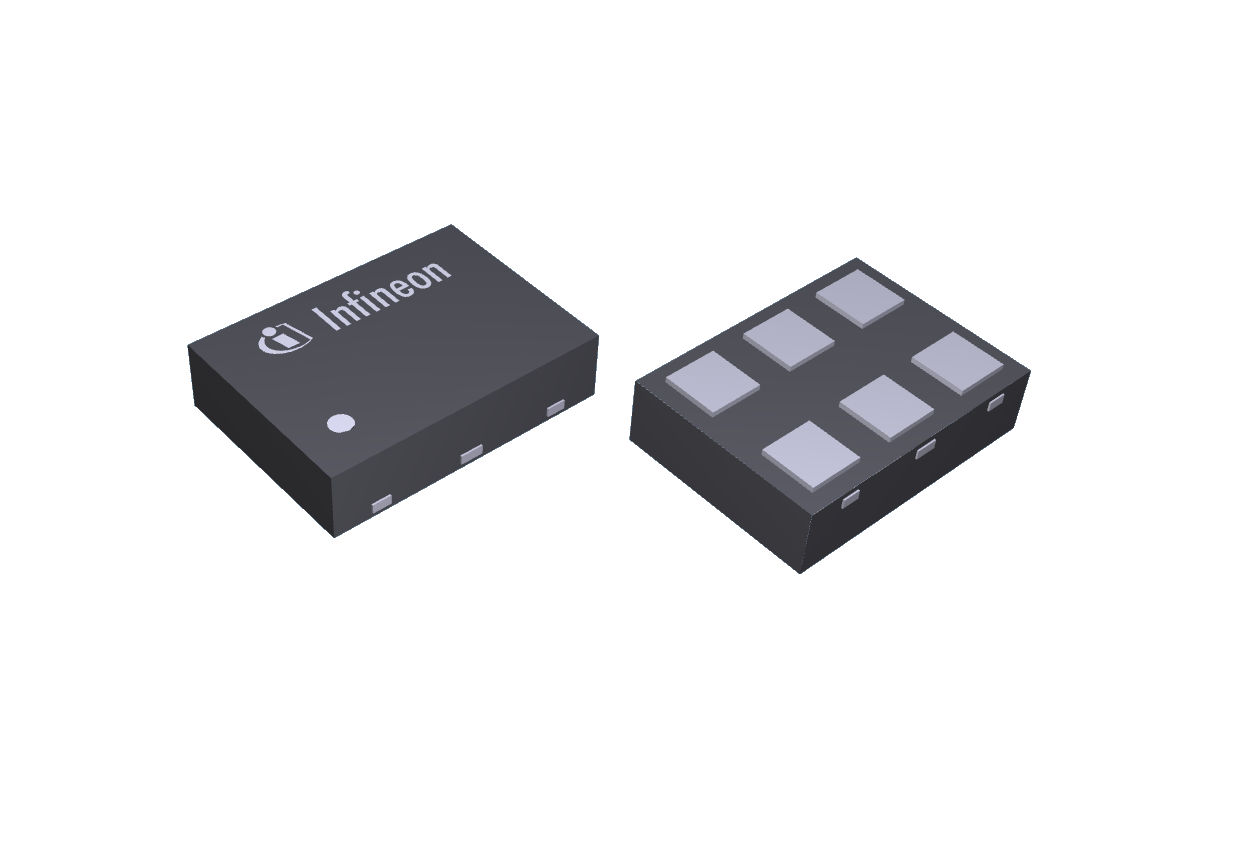

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2EDN7534U
2EDN7534U
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Low-side
  • Isolation Type
    Non-isolated
  • Output Current (Source)
    5 A
  • Output Current (Sink)
    5 A
  • Qualification
    Industrial
  • Voltage Class
    20 V
Recommended
OPN
2EDN7534UXTSA1 2EDN7534UXTSA2
Product Status active and preferred active and preferred
Infineon Package
PG-TSNP-6
PG-TSNP-6
Package Name N/A N/A
Packing Size 7500 6000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 1 1
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TSNP-6
Package Name -
Packing Size 7500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status
Active
Infineon Package
PG-TSNP-6
Package Name -
Packing Size 6000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The EiceDRIVER™ 2EDN family is offered in 8-pin DSO, TSSOP and WSON packages as well as in small and versatile 6-pins SOT23 and TSNP package. High-output-current capability, tight-timing specifications, and reduced output start-up and shut-down times, make the 2EDN family the first choice for many fast-switching applications. Active output clamping shortens the startup time of bootstrapped designs.

Features

  • Up to ±5 A source/sink currents
  • 19 ns typ. propagation delay
  • +6/-4 ns propagation delay accuracy
  • 1.8 µs output start-up time
  • 500 ns output shut-down time
  • Active output voltage clamping
  • 5 A reverse current robustness
  • 4 V UVLO
  • 6-pin TSNP package
  • Qualified for industrial applications

Benefits

  • High power efficiency
  • Instant FETs protection in abnormal op
  • Safety margin drives pulse transformer
