LINEARFET_40V_STOLL
NEW
Active and preferred

LINEARFET_40V_STOLL

NEW
LINEARFET_40V_STOLL
User manual
Video

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

LINEARFET_40V_STOLL
LINEARFET_40V_STOLL
User manual


Product details

  • Output Current
    280 A
  • Package
    sTOLL
  • RDS (on) max
    0.43 mΩ
  • Rth
    0.63 K/W
  • Topology
    Full Bridge
  • VDS
    40 V

Recommended
OPN
LINEARFET40VSTOLLTOBO1
Product Status active and preferred
Infineon Package L-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package L-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

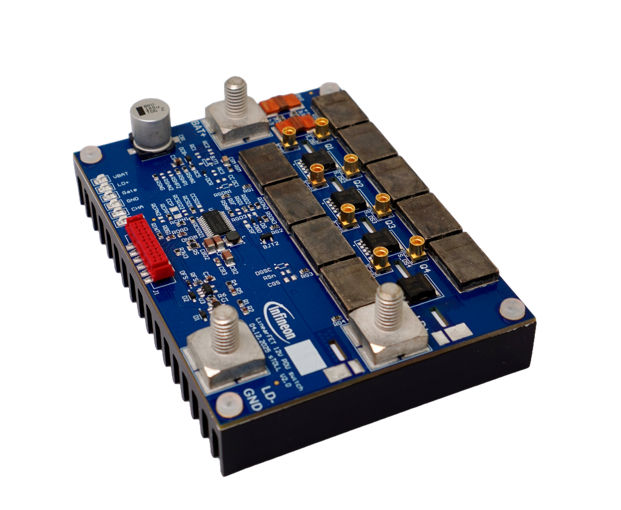

LinearFET 40V – 12V PDU switch Board

Features

  • Dual mode MOSFET
  • Low RDS(on) + linear mode
  • Ultra low on resistance
  • High SOA (linear mode)
  • sTOLL, compact and durable package
  • Good paralleling capability

Benefits

  • Heat: Reduced thermal losses
  • Reliable: Safe in stress & linear mode
  • Protection: Clamping + inrush control
  • Flexible: Easy parallel scaling
  • Stable: Smooth switching, better EMC
