KIT_LED_XMC1202_AS_01
KIT_LED_XMC1202_AS_01
View replacement
User Manual

Product details

  • Applications
    Lighting, Building Automation
  • Board Type
    Evaluation Board
  • Family
    Microcontroller
  • Input Type
    DC
  • Language
    SPICE
  • Product Category
    Evaluation Boards
  • Product Name
    RGB LED Lighting Shield with XMC1202 for Arduino
  • Sub Application
    Building Automation, Lighting
  • Supply Voltage
    12 V to 48 V
  • Target Application
    Industrial
  • Topology
    Buck
OPN
KITLEDXMC1202AS01TOBO1
Product Status discontinued
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

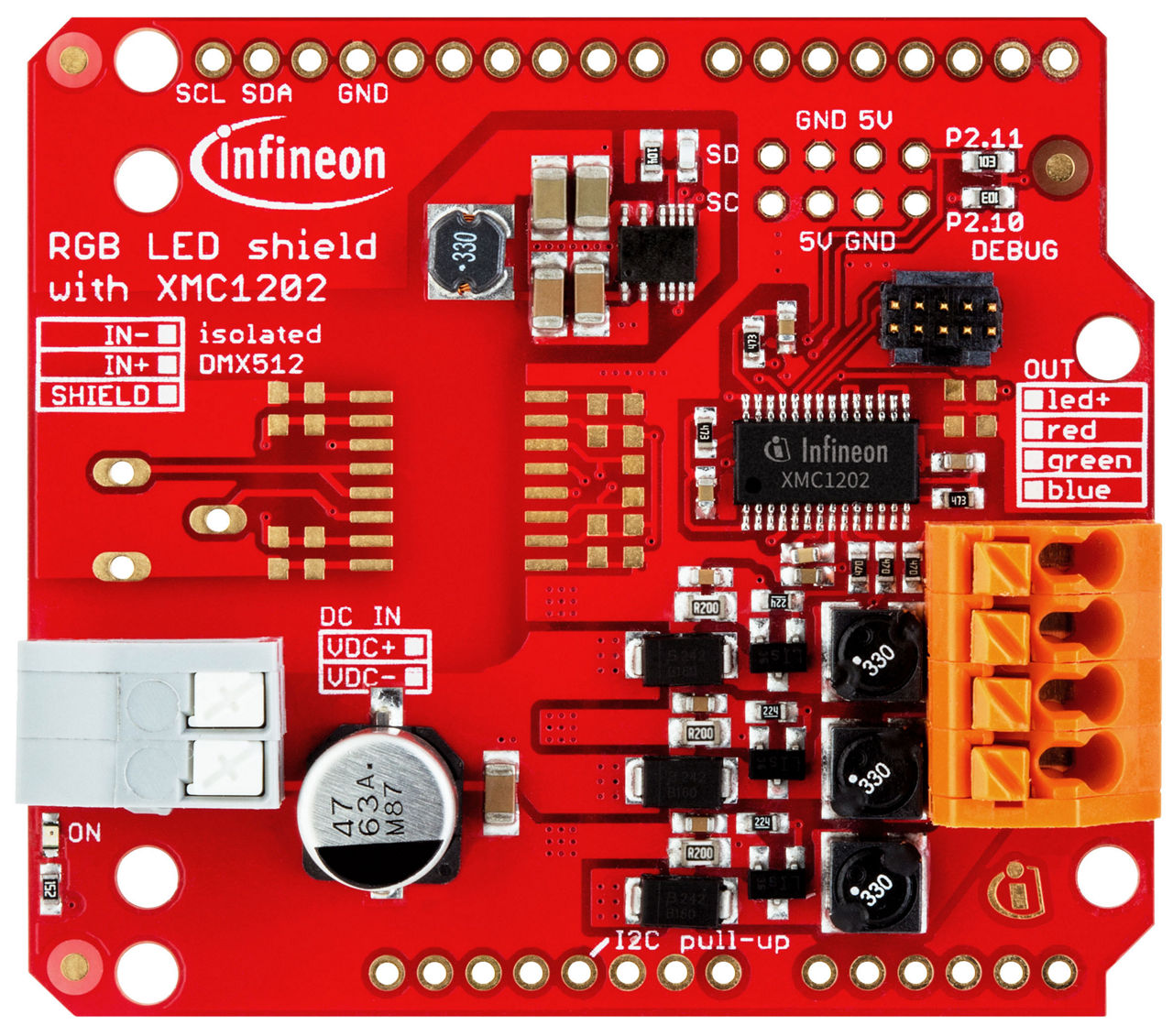

RGB LED Lighting Shield with XMC1202Hardware Compatible with Arduino Order Nr: KIT_LED_XMC1202_AS_01 Related Products: XMC1000 family, XMC1100 Boot KIT, DAVE™ IDE, BSR606NContain: KIT_LED_XMC1202_AS_01using XMC1202-T028X0016 MCUThe RGB LED lighting shield from Infineon technologies is one of the first intelligent evaluation boards compatible with Arduino as well as Infineon’s XMC1100 BOOT KIT. It is designed to be easily configurable and combinable for different LED light engines an

Features

  • Compatible with Arduino Uno R3 and XMC1100 Boot Kit from Infineon
  • Easy configurable for various light engines and any input voltage (within operating conditions)
  • Wide DC input voltage range
  • Simple I 2C interface

Benefits

  • Fast prototyping of LED lighting
  • Flicker-free light thanks to high-speed pulse density modulation
  • Easy-to-use dynamic dimming and color control
  • Small size thanks to high-frequency current control (high power density)
  • Backdoor access to on-board-microcontroller for advanced users and parameterization

Applications
