IGCT/IGBT - freewheeling diodes

Freewheeling diodes with a voltage range up to 6500 V

anchor

Overview

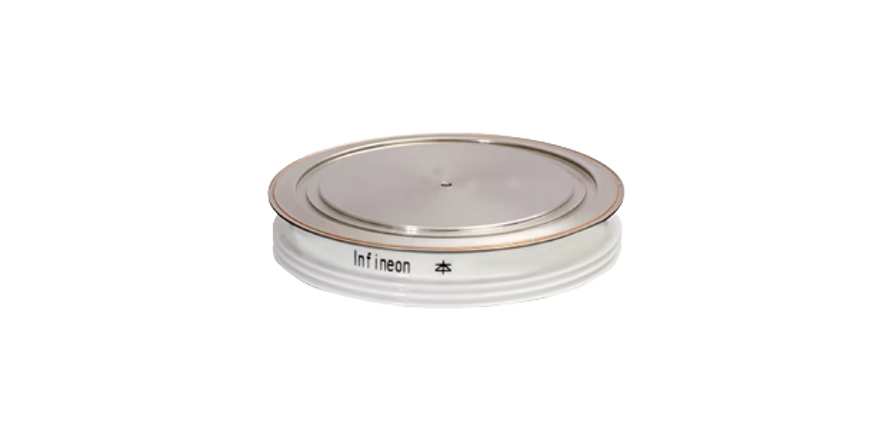

We offer IGCT and IGBT freewheeling diodes in disc housings with a voltage range of 4500 V and 6500 V and a current range of 910 A up to 1950 A. These diodes are the perfect fit for modern IGBT applications such as HVDC voltage source converters and medium voltage drives.

Key Features

  • Disc housings
  • Voltage range of 4500 V to 6500 V
  • Current range of 910 A up to 1950 A
  • Perfect fit for IGBT applications

Products

About

Introduction to the IGCT and IGBT freewheeling diodes

Our diodes have an excellent soft recovery behavior even under the most demanding turn-off conditions to avoid overvoltage at the switching device. Our high-tech production processes deliver outstanding dynamic parameters for the best cost and longest lifetime.

Benefits for medium voltage IGCT inverters

The major benefits of freewheeling and clamping diodes for medium voltage IGCT inverters, marked as SH-diodes, are the soft-switching behavior optimized for IGCT devices and the current turn-off capability up to 5 kA/µs which leads to optimized system performance.

Benefits for medium-voltage press pack IGBT inverter

The major benefits of freewheeling and clamping diodes for medium-voltage press pack IGBT inverters, marked as U-diodes, are the soft-switching behavior optimized for IGCT or IGBT devices with a current turn-off capability up to 5 kA/µs and less snubber effort.

Introduction to the IGCT and IGBT freewheeling diodes

Our diodes have an excellent soft recovery behavior even under the most demanding turn-off conditions to avoid overvoltage at the switching device. Our high-tech production processes deliver outstanding dynamic parameters for the best cost and longest lifetime.

Benefits for medium voltage IGCT inverters

The major benefits of freewheeling and clamping diodes for medium voltage IGCT inverters, marked as SH-diodes, are the soft-switching behavior optimized for IGCT devices and the current turn-off capability up to 5 kA/µs which leads to optimized system performance.

Benefits for medium-voltage press pack IGBT inverter

The major benefits of freewheeling and clamping diodes for medium-voltage press pack IGBT inverters, marked as U-diodes, are the soft-switching behavior optimized for IGCT or IGBT devices with a current turn-off capability up to 5 kA/µs and less snubber effort.
