TLD7002-16ES

Multi-channel LED driver
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD7002-16ES
TLD7002-16ES
ea.
Data Sheet

Product details

  • Classification
    ISO 26262-compliant
  • Family
    LITIX™ Pixel Rear
  • Open Load Detection
    yes
  • Operating Temperature
    -40 °C to 150 °C
  • Planned to be available until at least
    2039
  • PWM
    yes
  • Short Circuit Protection
    yes
  • Tolerance
    5%
  • Topology
    Linear
  • VS
    6 V to 28 V
Recommended
OPN
TLD700216ESXUMA1
Product Status active and preferred
Infineon Package
PG-TSDSO-24
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-24
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

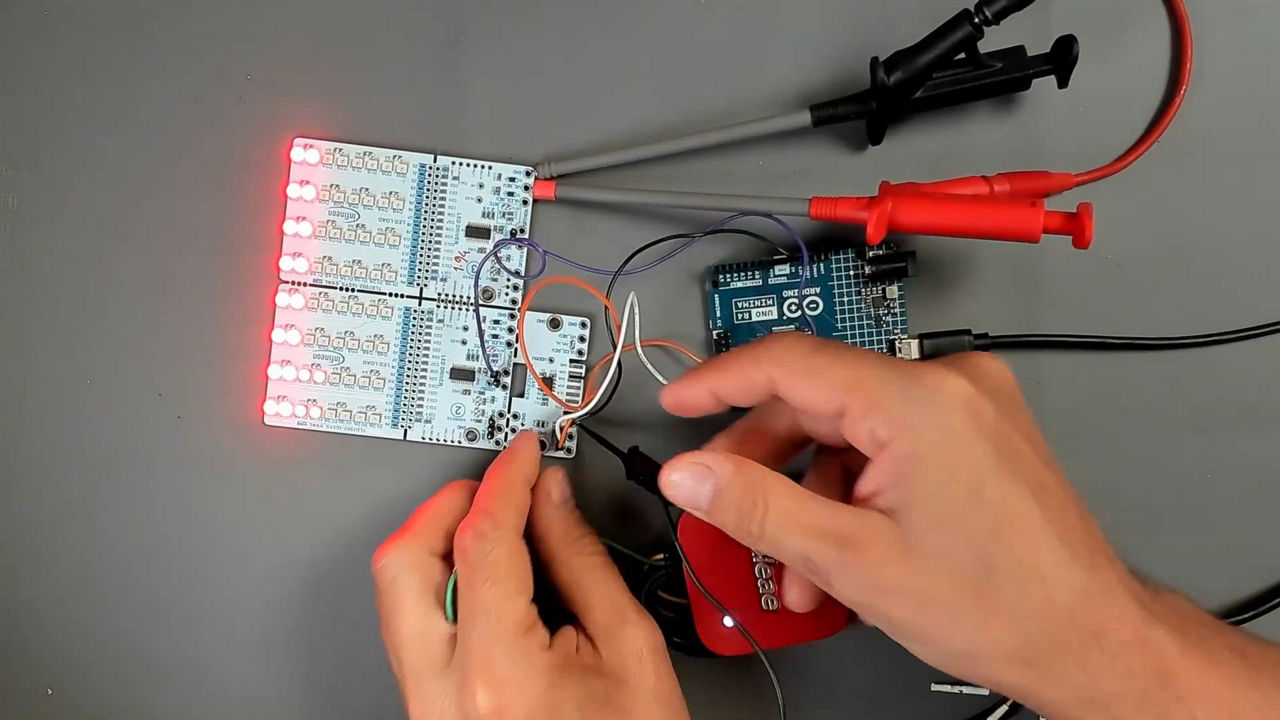

The TLD7002-16ES is a 16-channel device with protected output stages. It controls LEDs up to 76.5 mA as linear current sink (LCS). Power stages can be parallelized for higher load currents. Each output stage is configured with a 6-bit current value stored in OTP. 16 independent PWM configurations are available. A high-speed interface enables OTP programming, configuration, control, and diagnostics.

Features

  • 16 channel device optimize to drive LEDs
  • High regulated O/P current upto 76.5mA
  • Parallel O/P operation for higher load
  • Configurations ranging from 5.62to76.5mA
  • 16 independent 14-bit PWM engines
  • Configurable thermal derating
  • Two voltage measurements (NTC/PTC)
  • Integrated HSLI transceiver
  • Developed according to ISO26262

Benefits

  • Future proof BUS driven architecture
  • ISO26262-compliant Safety Design

Diagrams

tld7002 16 detailed app
tld7002 16 detailed app
tld7002 16 detailed app tld7002 16 detailed app tld7002 16 detailed app
tld7002 16internal tld7002 16internal tld7002 16internal
TLD7002-16DetailedAppBlockDiagram TLD7002-16DetailedAppBlockDiagram TLD7002-16DetailedAppBlockDiagram
TLD7002-16InternalBlockDiagram TLD7002-16InternalBlockDiagram TLD7002-16InternalBlockDiagram
×
