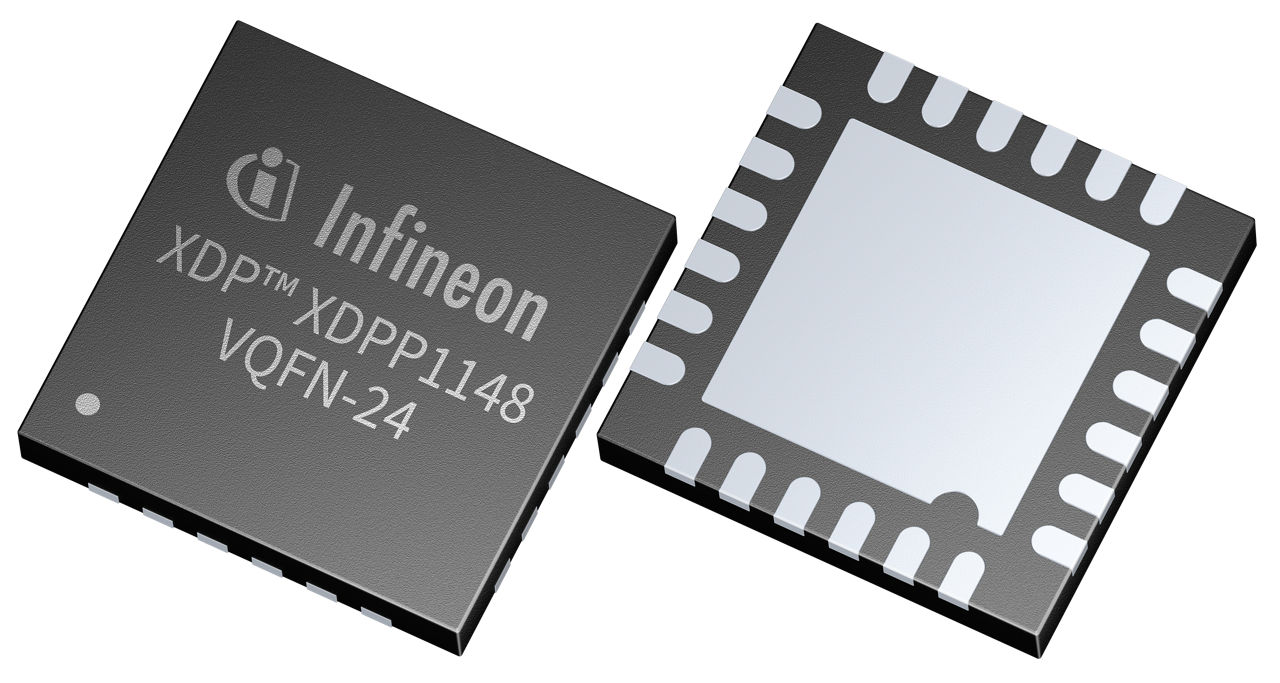

XDPP1148-100C
NEW
coming soon
RoHS Compliant
Lead-free

XDPP1148-100C

NEW
XDP™ digital power controller for DC-DC conversions with PWM, PFM, and LLC support
Datasheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPP1148-100C
XDPP1148-100C
Datasheet

Product details

  • Communication Interfaces
    I2C, PMBUS, UART, SPI
  • DPWM Resolution
    75.125 ps
  • I-ADC
    2
  • Memory
    80kB ROM; 32kB RAM; 64kB OTP
  • Package
    PG-VQFN-24
  • PWM Frequency
    2 MHz
  • PWM Outputs
    6
  • Supply Voltage
    3.3 V
OPN
XDPP1148100CXUMA1
Product Status coming soon
Infineon Package
PG-VQFN-24
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-VQFN-24
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
XDPP1148-100C expands the XDP™ digital power controller family & offers additional close-loop LLC topology support, enhanced feed-forward, non-linear fast transient, light load power management & a bi-directional configuration. The high-performance Analog Frontend (AFE), state-machine-based digital control loop & Arm® Cortex®-M0 processor integrated into a VQFN-24 4x4 package enable high power quality, low latency & flexible power supply designs.

Features

  • Small 4 mm x 4 mm VQFN-24 package
  • 100 MHz, 32-bit Arm® Cortex®-M0
  • Feed-forward control
  • PWM and PFM mode support
  • Phase-current balancing
  • 1 V-sense ADC & 2 I-sense ADCs
  • Burst mode, diode-emu & phase shedding
  • Fast transient & non-linear PID response
  • Firmware-based system configuration
  • Active current sharing
  • I2C/PMBus 1.4, UART and SPI interface
  • Low power consumption sleep mode

Benefits

  • Easy product differentiation
  • User-specific customization
  • Fast Time-to-Market
  • Excellent dynamic transient performance
  • Reduced BOM size & low system cost
  • Sophisticated fault handling
  • Housekeeping with configurable GPIOs
