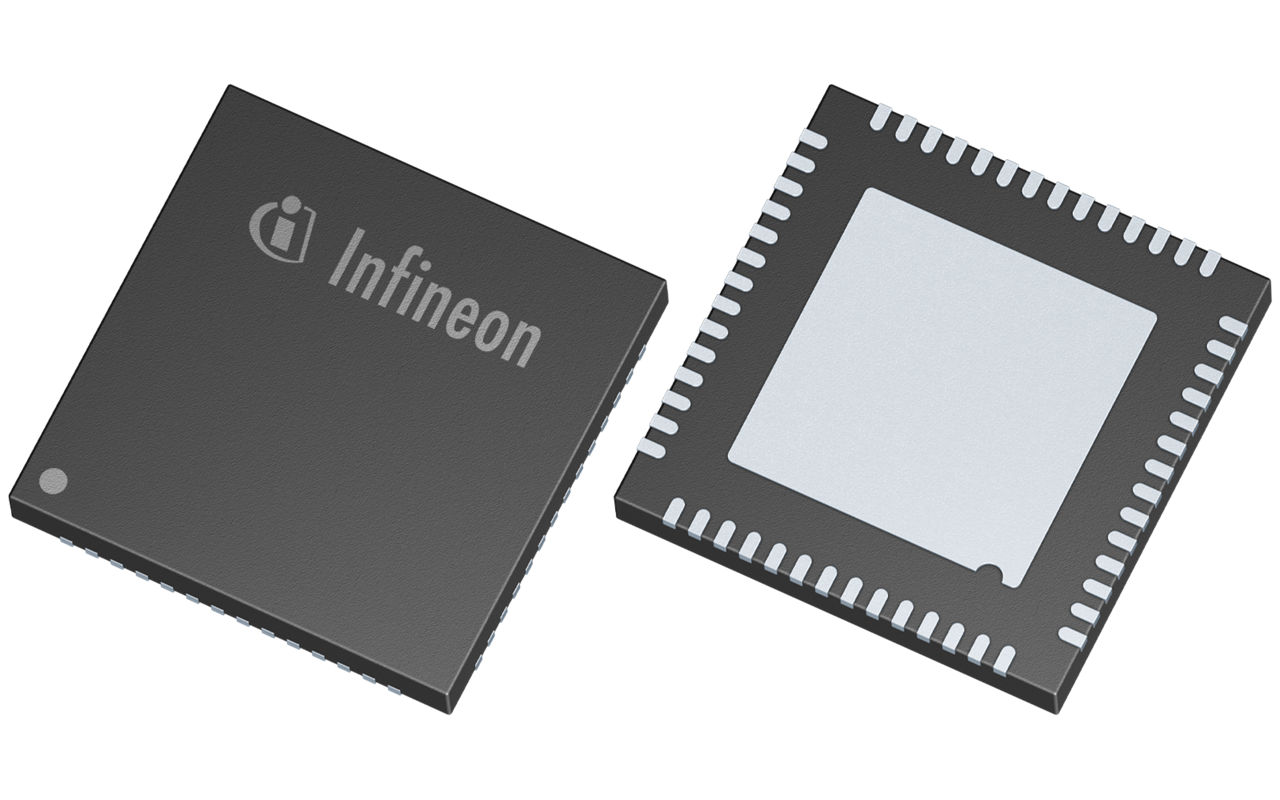

XDPE1D2G3C-0000

Digital dual loop 16-phase controller for AMD™ SVI3 server, workstation, and high-end desktop applications
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPE1D2G3C-0000
XDPE1D2G3C-0000
Data Sheet

Product details

  • Configuration
    16+0 to 0+16
  • Interfaces
    AMD SVI3 Rev 3.12, PMBus rev 1.4
  • Maximum Phases
    16
  • Moisture Sensitivity Level
    MSL3
  • Package
    QFN 7x7 56-pin
  • Qualification
    Industrial
  • Switching Frequency range
    250 kHz to 3000 kHz
  • Voltage Outputs
    2
  • Voltage Outputs range
    0.25 to 3.1
Recommended
OPN
XDPE1D2G3C0000XUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-56
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-56
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Core voltage is provided by a multi-phase buck regulator controlled by XDPE1D2G3C that can be configured in one of the following phase combinations between the two loops: 16+0 to 0+16. Command and monitor functions are controlled through the SVI3 interface, supporting dynamic voltage changes (VOTF), power states (PS), and VR telemetry and status requirements. XDPE1D2G3C provides the ultimate system solution in terms of flexibility and stability.

Features

  • Compliant with AMD™ SVI3 Rev 3.12
  • Compliant with PMBus Rev 1.4
  • Digitally controlled phasing
  • Differential output voltage sense
  • Fast current balancing with CM control
  • Digitally programmable PID
  • Digitally programmable loadline slope
  • Digital temperature compensation
  • Direct input 12 V voltage, current sense
  • Extensive fault detection, protection
  • Internal NVM
  • Flexible PWM phase order, phase mapping

Benefits

  • Supports AMD SVI3 Rev 3.1 interface CPUs
  • PMBus for telemetry and regulation
  • Improved thermal balance, reliability
  • Supports tight voltage regulation specs
  • Advanced thermal management
  • Highest degree of design flexibility
  • Ultra-fast CPU load transient response
  • Reduced BOM
  • Measure the input power consumption
  • System reliability and robustness
  • High degree of customization
  • Maximize ripple cancellation, robustness
