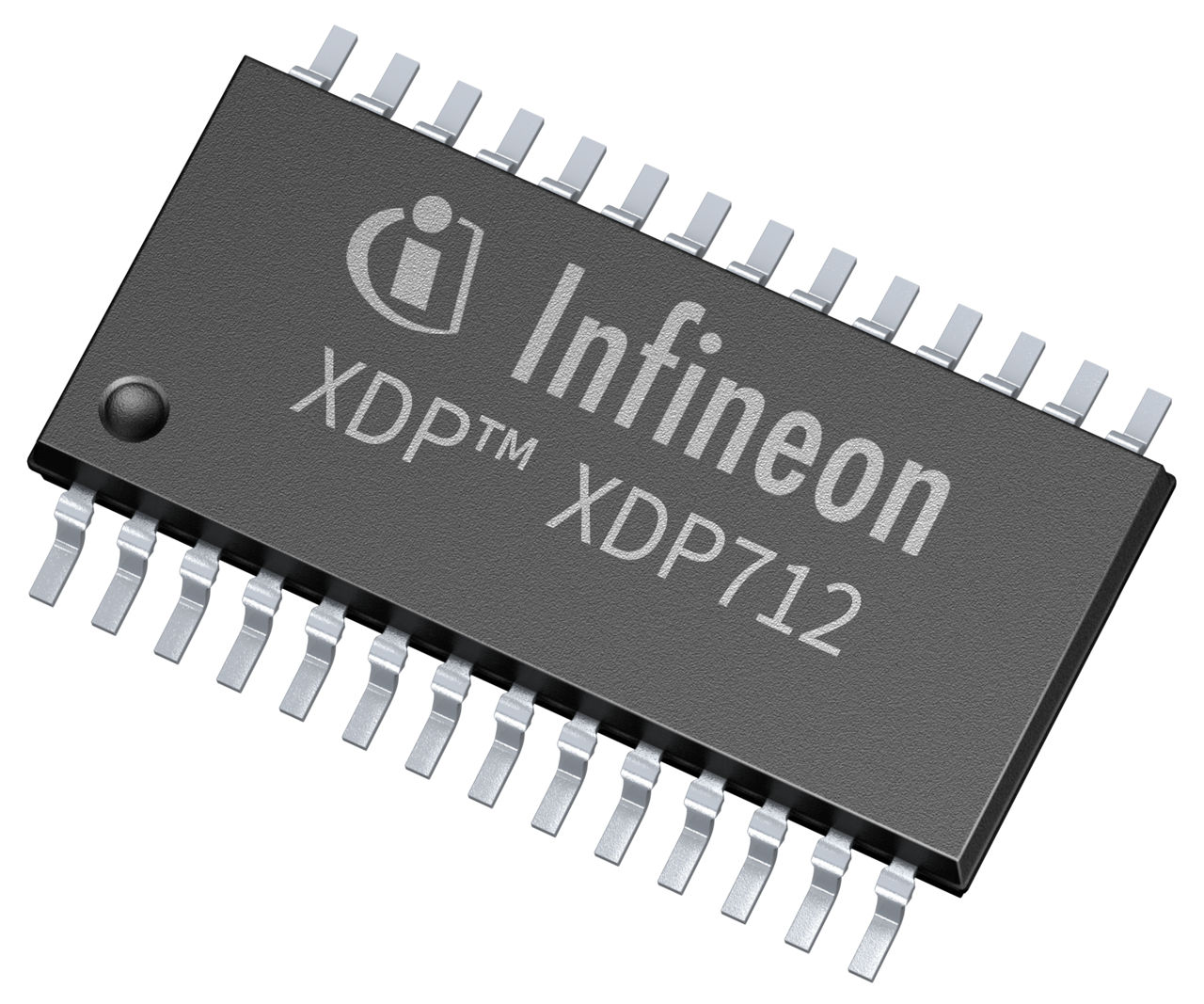

Digital hot-swap controller with programmable SOA control for 7 V to 80 V DC rails in a TSSOP-28 package
Datasheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDP712-001
XDP712-001
Datasheet

Product details

  • Analog reporting
    Current, Power
  • Communication Interfaces
    PMBus® v1.3 up to 1MHz
  • Current sensing
    High-side
  • Energy reading register size
    40-bit
  • Fault response
    Latch off, auto retry or digitally configurable
  • Input Voltage fault hysteresis configurability
    Both OV and UV are configurable
  • Input Voltage range
    7 V to 80 V
  • Inrush current control type
    SOA current control, pulsed SOA control (boost mode) with auto boost or full boost
  • Package
    PG-TSSOP-28
  • Power averaging ((32,768 samples)) max
    3 s
  • Protection Features
    Overcurrent, short circuit current, input overvoltage, input undervoltage, output under voltage, over temperature, FET faults, VDS fault, fast input overvoltage, watchdog timer fault, SOA violation fault and memory fault
  • Supported rails
    Positive
  • Telemetry accuracy
    V ≤ 0.4%, I ≤ 0.75%, P ≤ 1.15%, E ≤ 2.7%
OPN
XDP712001XUMA1
Product Status coming soon
Infineon Package
PG-TSSOP-28
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-TSSOP-28
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
XDP712-001 is a wide input voltage range digital hot-swap controller featuring a digital SOA control and pulsed SOA current control mode to meet the high availability & reliability requirements of AI servers. It drives single or multiple parallel MOSFETs, enables continuous system health monitoring & high-speed communication via PMBus®, which allows system designers to disable the downstream sub-systems fully or partially.

Features

  • Wide VIN: 7 V to 80 V (100 V for 500 ms)
  • Integrated gate driver: up to 250 μA
  • 1.5 A gate pull-down on short-circuit
  • Programmable & pre-set FET SOA profiles
  • 12-bit ADC: V ≤ 0.4%, I ≤ 0.75% accuracy
  • NVM programmable fault & warning levels
  • Pulsed SOA current control technology
  • PMBus® v1.3 interface: up to 1 MHz
  • FET health monitoring
  • Analog current & power reporting
  • TSSOP-28 (9.7 mm x 6.4 mm) package
  • Peak and valley detection

Benefits

  • Increased system reliability
  • Optimized system performance
  • Higher flexibility in design
  • Allows for system scalability
  • Robust design due to protection features
  • Reduced BOM
  • Common industry footprint compatible
  • Compliance with industry standards
  • Turn-off in <1 μs on short-circuit
  • Support for non-optimized SOA FETs
Documents

Design resources

Partner solutions
