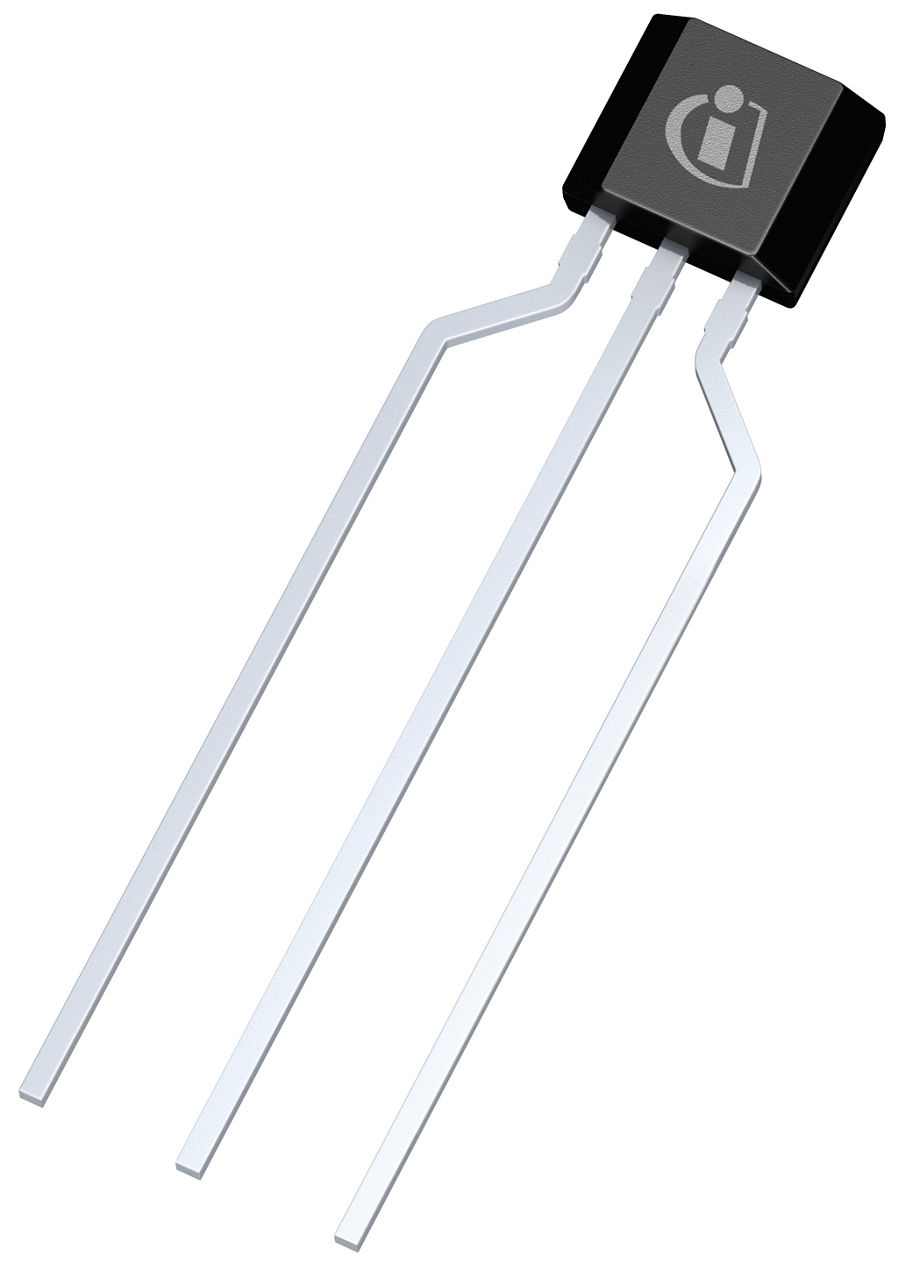

TLV4964-5TB

XENSIV™ - TLV4964-5TB magnetic Hall switch with active error compensation
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLV4964-5TB
TLV4964-5TB
Data Sheet

Product details

  • Bhyst
    2.5 mT
  • Bop
    7.5 mT
  • Brp
    5 mT
  • Interfaces
    open collector
  • Language
    Magnetics
  • Planned to be available until at least
    2038
  • Product Category
    Sensors
  • Product Description
    Low cost unipolar Hall switch for consumer applications in a leaded package
  • Supply Voltage
    3 V to 26 V
  • Temperature
    -40 °C to 125 °C
  • Type
    Unipolar
Recommended
OPN
TLV49645TBXALA1
Product Status active and preferred
Infineon Package PG-TO92S-3
Package Name N/A
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package PG-TO92S-3
Package Name -
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
XENSIV™ TLV496x-xTA/B magnetic sensor family: Ideal for contactless position sensing. Cost-effective solution for precise Hall switches/latches (unipolar/bipolar). Suited for index counting with a pole wheel, rotor position detection in BLDC motors, and open/closing detection. Wide operating temperature range and excellent magnetic behavior.

Features

  • 3.0 V to 26 V operating supply voltage
  • Low current consumption 1.6 mA
  • ESD protection 4 kV HBM
  • Operating from unregulated power supply
  • Output overcurrent, overtemp protection
  • Active error compensation (chopping)
  • Operating temp R from -40 °C to 125 °C
  • High ESD performance
  • JESD47 qualified

Applications
