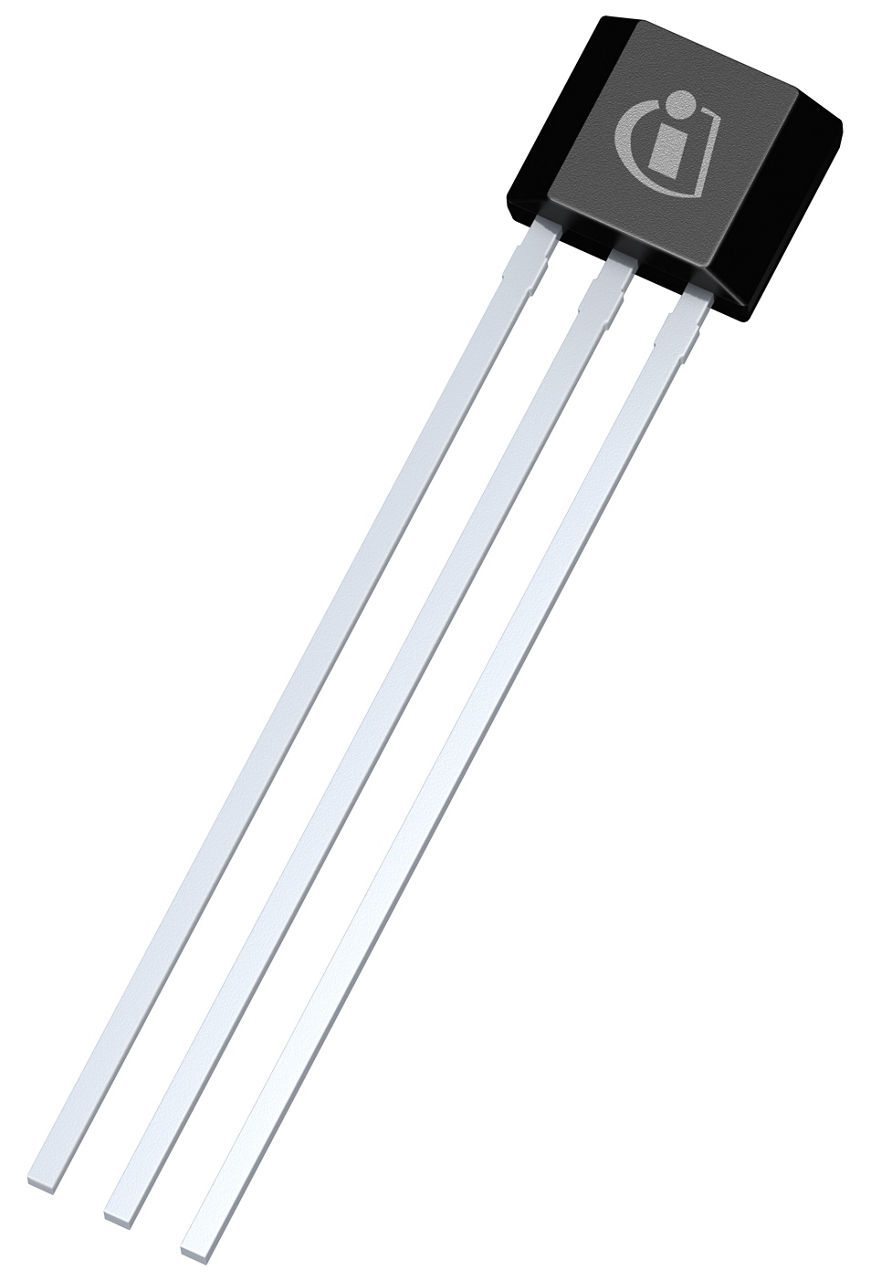

TLV4964-5TA

XENSIV™ - TLV4964-5TA magnetic Hall switch with low power consumption
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLV4964-5TA
TLV4964-5TA
ea.
Data Sheet

Product details

  • Bhyst
    2.5 mT
  • Bop
    7.5 mT
  • Brp
    5 mT
  • Interfaces
    open collector
  • Language
    Magnetics
  • Online Simulation
    https://design.infineon.com/hallsim/
  • Currently planned availability until at least
    2033
  • Product Category
    Sensors
  • Product Description
    Low cost unipolar Hall switch for consumer applications in a leaded package
  • Supply Voltage
    3 V to 26 V
  • Temperature
    -40 °C to 125 °C
  • Type
    Unipolar
Recommended
OPN
TLV49645TAXBXA1
Product Status active and preferred
Infineon Package PG-TO92S-3
Package Name N/A
Packing Size 4000
Packing Type BULK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-TO92S-3
Package Name -
Packing Size 4000
Packing Type BULK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLV496x-xTA/B magnetic sensor family offers cost-effective and easy-to-use Hall switches for contactless position sensing applications. Ideal for precise Hall switch or Hall latch needs, they excel in various applications, including index counting with a pole wheel, rotor position detection in BLDC motors and open/closing detection. With a wide operating temperature range and excellent magnetic behavior, Infineon's sensors provide a reliable solution.

Features

  • 3.0 V to 26 V operating supply voltage
  • Low current consumption 1.6 mA
  • ESD protection 4 kV HBM
  • Operating from unregulated power supply
  • Output overcurrent, overtemp protection
  • Active error compensation (chopping)
  • Operating temp R from -40 °C to 125 °C
  • High ESD performance
  • JESD47 qualified

Applications
