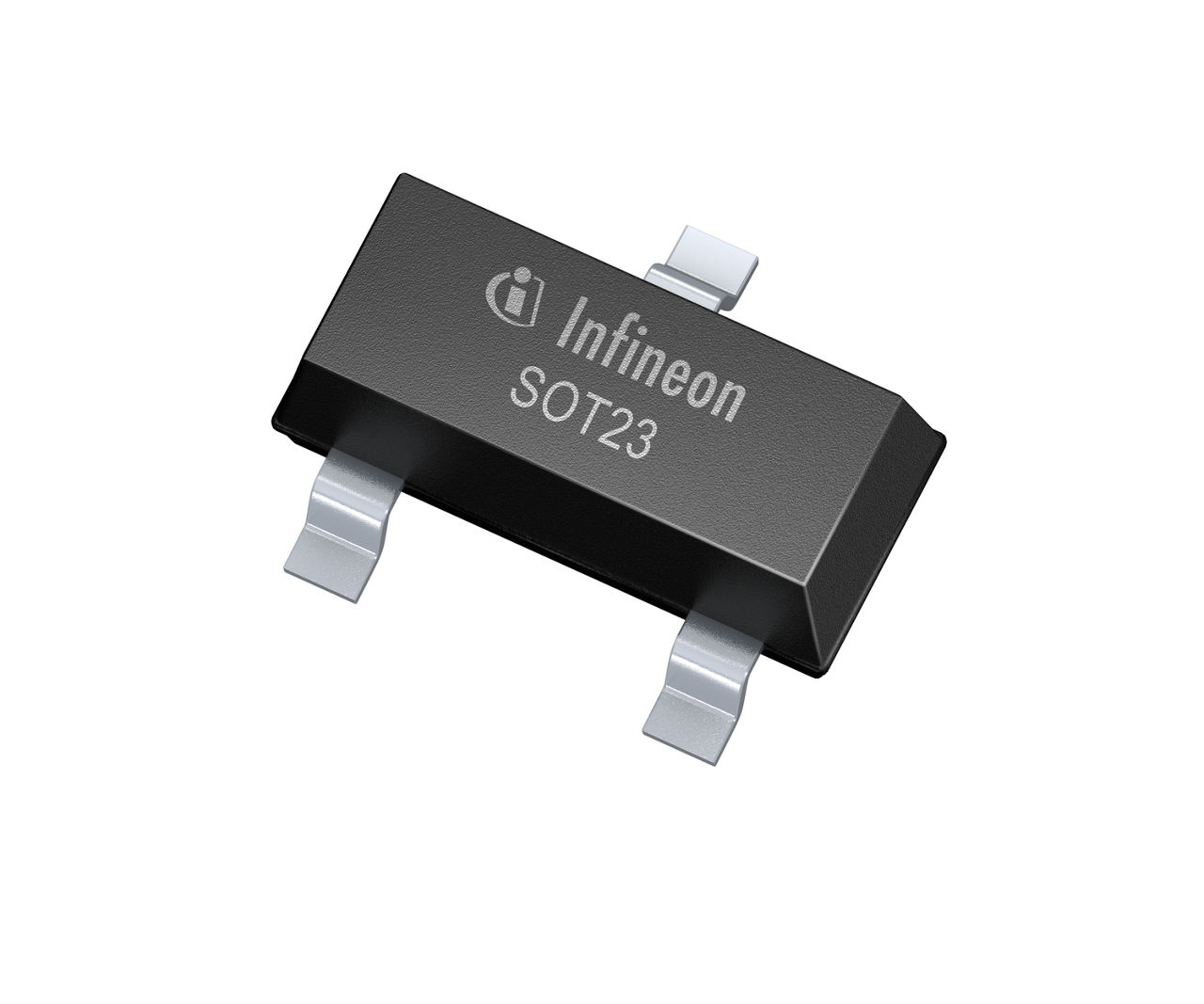

TLV4964-1M

XENSIV™ - TLV4964-1M magnetic switch for index counting applications such as power closing and window lifter
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLV4964-1M
TLV4964-1M
Data Sheet

Product details

  • Bhyst
    5.5 mT
  • Bop
    18 mT
  • Brp
    12.5 mT
  • Interfaces
    open collector
  • Language
    Magnetics
  • Online Simulation
    https://design.infineon.com/hallsim/
  • Currently planned availability until at least
    2038
  • Product Category
    Sensors
  • Product Description
    High precision unipolar Hall switch for consumer applications
  • Supply Voltage
    3 V to 32 V
  • Temperature
    -40 °C to 85 °C
  • Type
    Unipolar
Recommended
OPN
TLV49641MXTSA1
Product Status active and preferred
Infineon Package
PG-SOT23-3
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level N/A
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SOT23-3
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The TLV4964-1M, an integrated Hall effect switch, is designed for highly accurate position detection applications. It offers superior supply voltage capability from 3.0 V to 32 V, with overvoltage capability up to 42 V without an external resistor, ideal for automotive and industrial use.

Features

  • 3.0 V to 32 V operating supply voltage
  • Operation from unregulated power supply
  • Reverse polarity protection (-18 V)
  • 42V overvoltage, no external resistor
  • Output overcurrent, overtemp protection
  • Active error compensation
  • Low jitter (typ. 0.35 μs)
  • High ESD performance
  • JESD47 qualified

Benefits

  • position detection inautomotive

Applications
