TLS805B1SJV

The TLS805B1SJV is a linear voltage regulator featuring wide input voltage range, low drop out voltage and ultra low quiescent current.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS805B1SJV
TLS805B1SJV
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Base Product
    TLS805B1xx
  • Budgetary Price €/1k
    0.55
  • Dropout Voltage
    100 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear High Performance
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    2.75 V to 42 V
  • Output Current max
    50 mA
  • Output Voltage Type
    adj.
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    5 µA
  • Regulator Type
    High Performance
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLS805B1SJVXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLS805B1SJV is a low quiescent current regulator with input range of 2.75V to 42V, ideal for automotive applications. Adjustable output voltage, 2% accuracy, and 50mA current capability. Requires just 1μF ceramic capacitor for stability. Enable feature for on/off control, consuming <1μA. Suitable for systems during cranking. Includes internal protection for current limitation and over-temperature shutdown.

Features

  • Wide Input Voltage Range: 2.75V to 42 V
  • 50 mA Current Capability
  • Adjustable Output from 1.2V
  • Ultra Low Quiescent Current: 5μA
  • Low Dropout Voltage: 100 mV @50mA
  • Enable Feature
  • Stable with 1μF Output Capacitor
  • Stable Aluminium,Tantalum or Ceramic
  • Output Current Limit Protection
  • Overtemperature Protection
  • PG-DSO8 package

Benefits

  • Automotive-grade:Robust & Cost-Effective
  • Optimized 1µF ceramic output capacitance
  • Save energy with ultra-low standby. nt

Diagrams

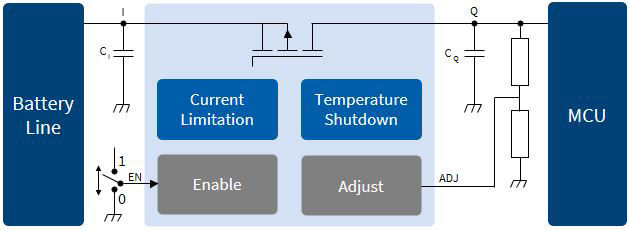

application_schematic_TLS805B1
application_schematic_TLS805B1
application_schematic_TLS805B1 application_schematic_TLS805B1 application_schematic_TLS805B1
application_schematic_TLS805B1 application_schematic_TLS805B1 application_schematic_TLS805B1
×
