TLS715B0EJ V50

The TLS715B0EJ V50 is a low dropout linear voltage regulator for load current up to 150 mA.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS715B0EJ V50
TLS715B0EJ V50
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Base Product
    TLS71xB0EJ V50
  • Budgetary Price €/1k
    0.48
  • Dropout Voltage
    200 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    4 V to 40 V
  • Output Current max
    150 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    36 µA
  • Regulator Type
    General Purpose
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLS715B0EJV50XUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLS715B0, with 36 μA quiescent current, suits low-power systems connected to the battery. It has a dropout voltage of 200 mV (I<100 mA) and starts at 4.0 V input voltage. Ideal for automotive start-stop systems, it offers control and requires a single 1 μF output capacitor for stability. The device provides output current limit, overtemperature shutdown, and protection against failures. It's a fit for applications needing a stable 5 V supply.

Features

  • input voltage range from 4.0 V to 40 V
  • Output voltage 5 V
  • Output voltage precision ± 2%
  • Output current up to 150 mA
  • Low current consumption of 36 μA
  • Very low dropout Voltage of typ. 200 mV
  • Overtemperature shutdown
  • Output current limitation
  • temperature range from -40°C up to 150°C
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Very wide input voltage range
  • Supports voltage cranking application
  • very low dropout

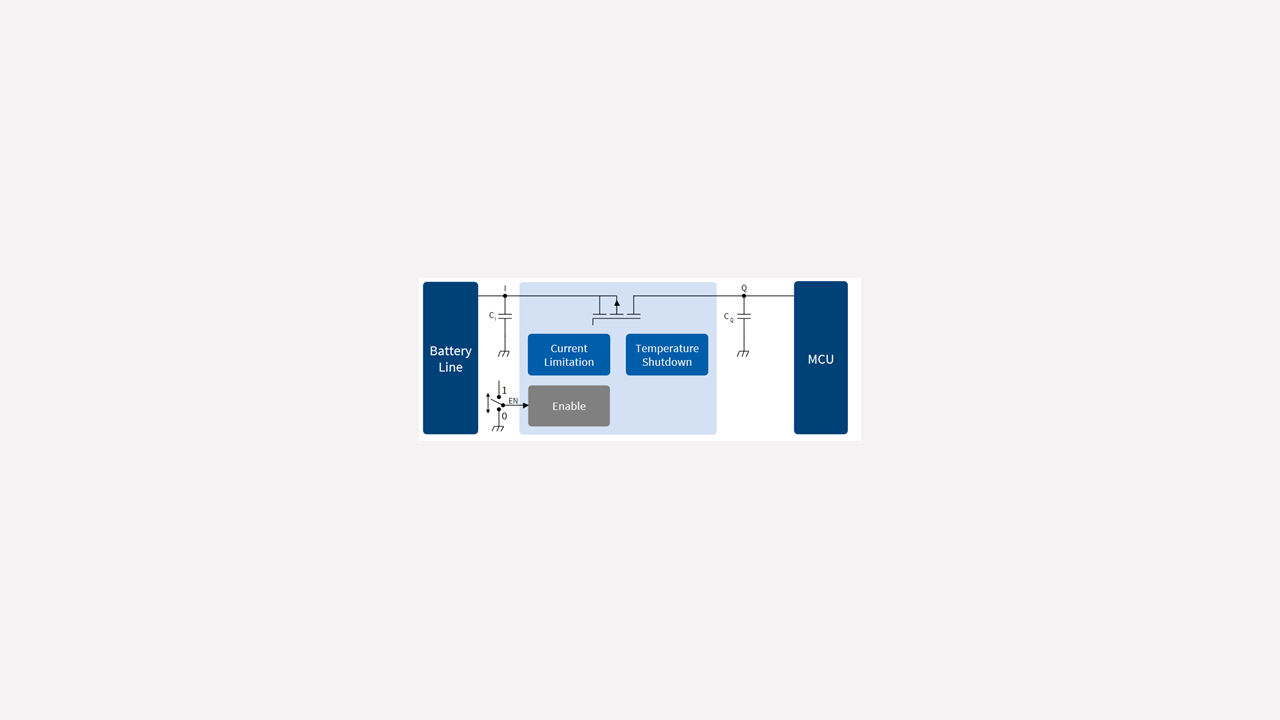

Diagrams

TLS715B0EJ V50
TLS715B0EJ V50
TLS715B0EJ V50 TLS715B0EJ V50 TLS715B0EJ V50
×
