TLI55950-A6E-E0002

NEW

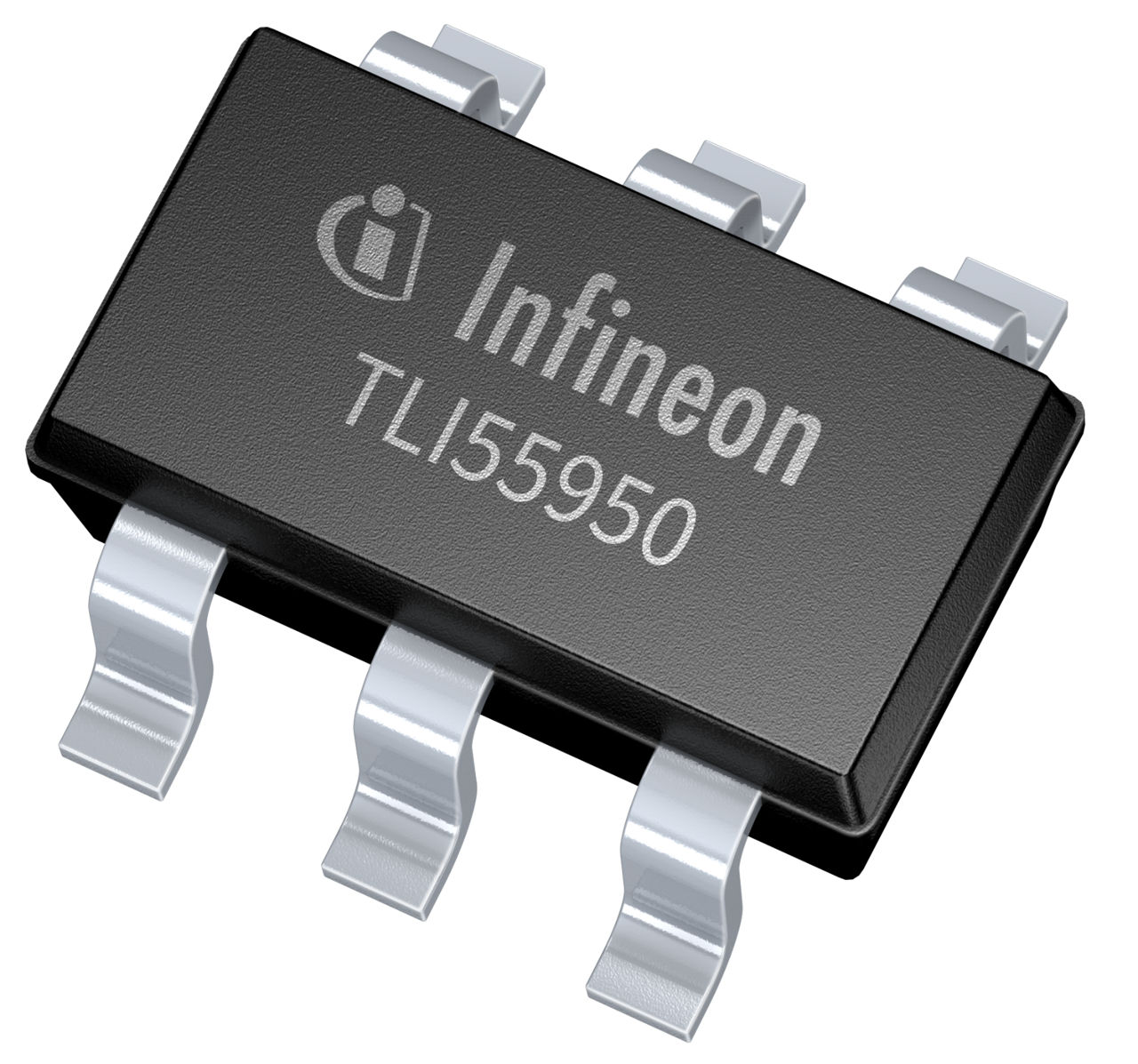

XENSIV™ TLI55950-A6E-E0002 amplified TMR linear sensor with integrated OpAmp and high sensitivity for precise position and angle sensing in SOT23-6.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLI55950-A6E-E0002
TLI55950-A6E-E0002
Data Sheet

Product details

  • Applications
    Linear TMR
  • Classification
    JEDEC JESD47
  • Interfaces
    Analog
  • Package
    SMD
  • Programmable
    No
Recommended
OPN
TLI55950A6EE0002XTSA1
Product Status active and preferred
Infineon Package
PG-SOT23-6
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SOT23-6
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The XENSIV™ TLI55950-A6E-E0001 is a TMR-based amplified linear sensor with integrated OpAmp for single-ended full-range voltage output. With sensitivity up to 85.5 mV/mT, ultra-low noise of 8.1 µTRMS, and a magnetic measurement range of ±25/16 mT, it delivers high-precision position and angle sensing for robotics, industrial automation, home appliances, and drones. JEDEC JESD47 validated in a compact SOT-23-6 package.

Features

  • Tunneling magnetoresistance technology
  • Integrated OpAmp & temperature compensation
  • Magnetic measurement range of ±25/16 mT
  • High sensitivity of 85.5 mV/mT
  • Ultra-low noise of 8.1 µTRMS
  • Supply voltage 3 V to 5.5 V
  • JEDEC JESD47 qualified
  • Very low temperature drift
  • SOT23-6 compact package

Benefits

  • Ultra-responsive input detection
  • No external OpAmp required
  • Enabling cost-effective magnet design
  • Reliable readings in noisy environments
  • Stable operation in harsh environments
  • Enabling various sensing use cases
