TLI5590-A6W
END OF LIFE
discontinued
RoHS Compliant
Lead-free

TLI5590-A6W

END OF LIFE

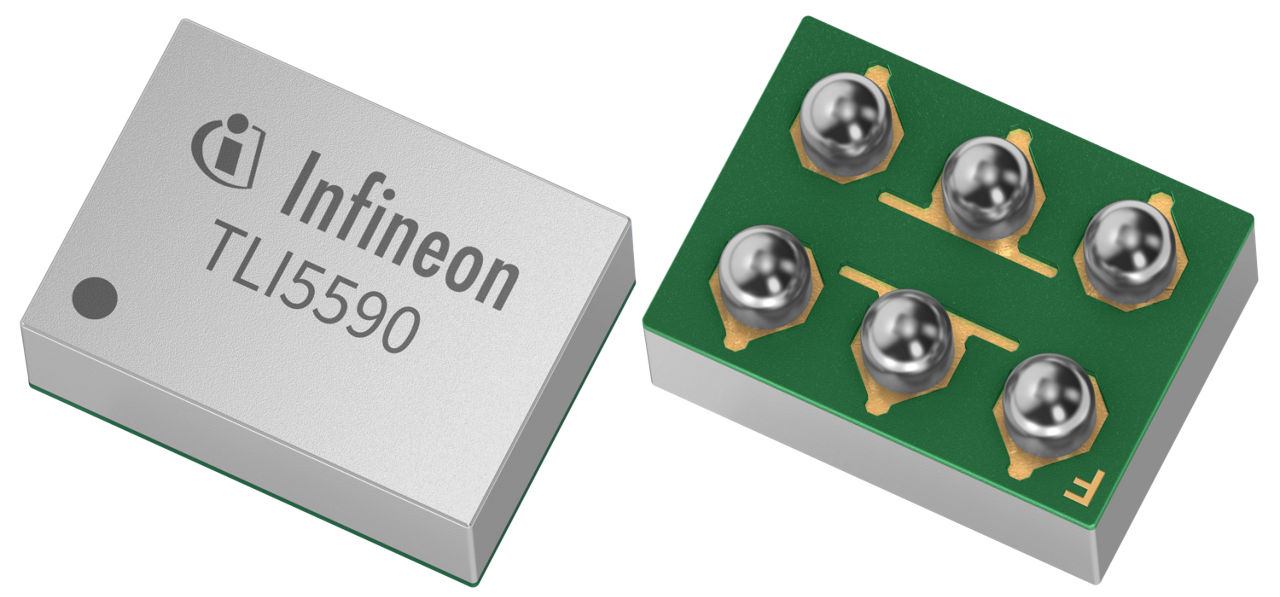

XENSIV™ TLI5590-A6W TMR-based magnetic linear sensor with a two-channel ratiometric gradiometer for high-precision length measurement
Datasheet
View product family

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLI5590-A6W
TLI5590-A6W
View product family
Datasheet


Product details

  • Applications
    Linear TMR
  • Classification
    JEDEC JESD47K
  • Interfaces
    Analog
  • Package
    wafer level
  • Programmable
    ---

OPN
TLI5590A6WXTMA1
Product Status discontinued
Infineon Package SG-WFWLB-6
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Country of Assembly (CoA)
DE
Country of Diffusion (CoD)
DE
View product family

Product Status discontinued
Infineon Package SG-WFWLB-6
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
DE
Country of Diffusion (CoD)
DE
View product family
TLI5590-A6W is a two-channel radiometric gradiometer for high precise length measurement. Qualified for industrial / consumer applications acc. to JEDEC JESD47K standard. It has super high accuracy better than 10 µm achievable by use of proper linear or rotary magnet encoder. The excellent channel matching of less than 5 % over full magnetic input range of ±5 mT. Potential application is lens positioning for zoom and focus adjusting in cameras.

Features

  • Differential ratiometric output
  • Magnetic field range: 5 mT
  • Low current 1 mA @ 3.3 V
  • Sensitivity bridge 1: 18 mV/V/mT
  • Sensitivity bridge 2: 9 mV/V/mT
  • Operating temperature: -40…125° C
  • Angle error: < 2 %
  • Extremely small wafer level package

Benefits

  • High accuracy
  • Stray field robust
  • Low hysteresis
  • Excellent linearity
  • High sensitivity
  • Low noise

Applications
