TLI5570-RE35E1-E0001

XENSIV™ - TLI5570-AE35E1-E0001 high precision coreless current sensor with differential analog interface in miniaturized package
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLI5570-RE35E1-E0001
TLI5570-RE35E1-E0001
ea.
Data Sheet

Product details

  • Interfaces
    Analog
  • Measurement range
    35 mT
  • Supply Voltage
    1 - 5.5
Recommended
OPN
TLI5570RE35E1E0001XTSA1
Product Status active and preferred
Infineon Package PG-SOT23-6
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-SOT23-6
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

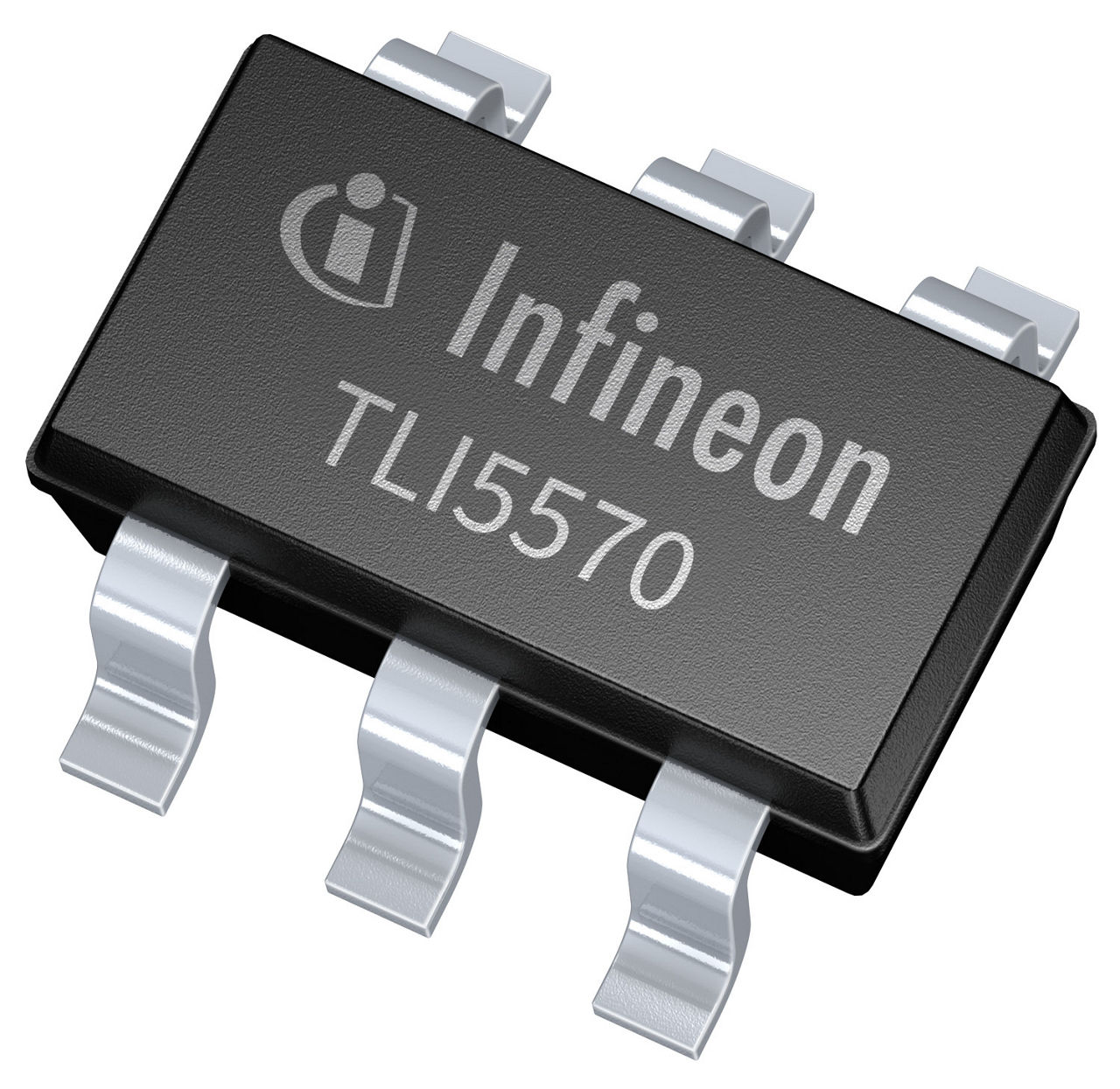

The XENSIV™ TLI5570-AE35E1-E000 is a high-precision miniature coreless magnetic sensor for AC and DC measurement. Our revolutionary and robust, highly linear monolithic TMR (tunnel magneto resistance) technology enables accurate current measurement. With a bandwidth of a more than 1.1 MHz, this sensor provides a non-amplified high-speed differential analog output signal to be directly connected to replacing shunts.

Features

  • Accurate AC & DC current sensing
  • Stable sensitivity over temperature
  • Galvanically isolated measurement
  • Contactless current sensing up to >1kA
  • From 1V and 5V supply voltage
  • >1.1MHz bandwidth
  • Ultra-low noise analog out
  • Temperature range -40°C to +125°C
  • Magnetic measurement range ±35mT

Benefits

  • Cost-efficient TMR current sensor
  • Shunt replacement
  • Isolated current measurement
  • Small design footprint
  • Wide range of applications
  • Highly robust system design
  • Reduced power losses
  • Lowest parasitic inductance

Applications
