TLF80511TC

The TLF80511TC is a linear low dropout voltage regulator for load currents up to 400 mA with fixed output voltage (5V and 3.3V).
Data Sheet
package
board
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF80511TC
TLF80511TC
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Base Product
    TLF80511xx
  • Budgetary Price €/1k
    0.75, 0.75
  • Dropout Voltage
    100 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Family
    OPTIREG™ linear High Performance
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3.3 V to 45 V
  • Output Current max
    400 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    38 µA
  • Regulator Type
    High Performance
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLF80511TCATMA2 TLF80511TCATMA1
Product Status active and preferred not for new design
Infineon Package
PG-TO263-3
PG-TO263-3
Package Name D2PAK D2PAK
Packing Size 1000 1000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 1 1
Moisture Packing NON DRY NON DRY
Lead-free No No
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock ea. in stock

Product Status
Active
Infineon Package
PG-TO263-3
Package Name D2PAK
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status not for new design
Infineon Package
PG-TO263-3
Package Name D2PAK
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLF80511TC regulates input voltage up to 40V to VQ,nom = 5V with ±2% precision. Ideal for low operating current systems connected to batteries, it has a quiescent current of 38µA. Dropout voltage is 100mV for output current < 100mA. Works from 3.3V input voltage, making it suitable for automotive systems. Requires only 1µF output capacitor for stable regulation.

Features

  • Output Voltage 5 V
  • Output Voltage Precision ± 2 %
  • Output Current up to 400 mA
  • Ultra Low Current Consumption 38 µA
  • Low Dropout V: 100 mV at 100 mA O/P I
  • Ext Operating Range Starting at 3.3 V
  • Small Output Capacitor 1 µF
  • Output Current Limitation
  • Overtemperature Shutdown
  • Suitable for Use in ATV Electronics
  • Wide Temp Range from -40 °C up to 150 °C

Benefits

  • Very Wide Input Voltage Range
  • Supports Voltage Cranking Application
  • Very Low Dropout

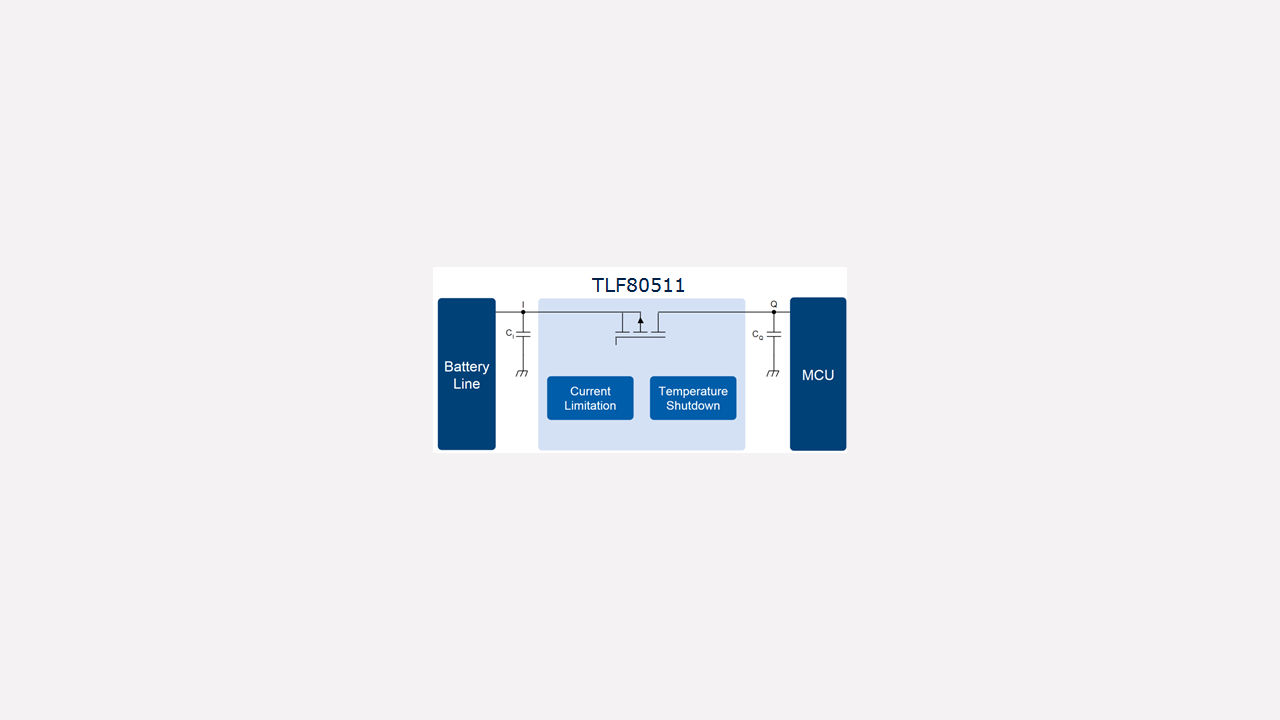

Diagrams

TLF80511TC
TLF80511TC
TLF80511TC TLF80511TC TLF80511TC
×
