Active and preferred
RoHS Compliant
Lead-free

TLF11251LD

The TLF11251 is an integrated half-bridge capable for 2.5A
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF11251LD
TLF11251LD
ea.
Data Sheet

Product details

  • Base Product
    TLF11251xx
  • Classification
    NA
  • Comments
    2.5 A current capability, integrated gate drivers, integrated level-shifters, Grade 0, Integrated PMOS and NMOS complementary output bridge
  • Enable (=Inhibit)
    no
  • Iout max
    2500 mA
  • Iq
    200 µA
  • ISO 26262
    QM
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3.5 V to 7 V
  • Over Voltage Protection
    no
  • Package
    PG-TQFP-48
  • Currently planned availability until at least
    2038
  • Product Group
    PMIC
  • Qualification
    Automotive
  • Regulator Type
    N/A
  • Reset
    no
  • Target Application
    Safe Computing, Safe Control, PMIC Companion
  • Tolerance
    N/A
  • VQ (multiple)
    N/A
  • Watchdog
    no
Recommended
OPN
TLF11251LDXUMA1
Product Status active and preferred
Infineon Package
PG-TSON-10
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSON-10
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

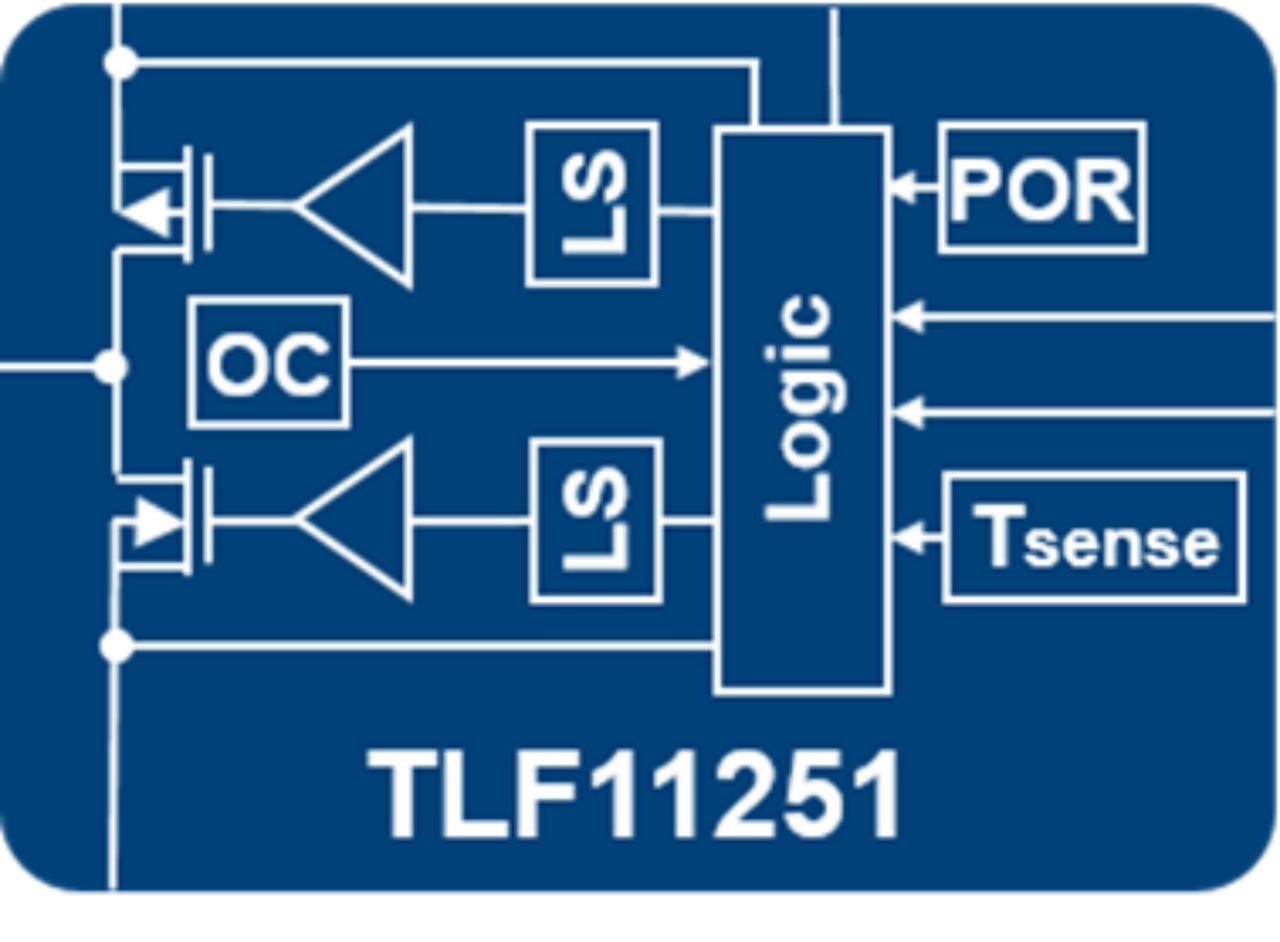

Integrated high-side/low-side MOSFET drivers & level shifting. Features: current sensing/limitation, over-temperature protection, & Power-On-Reset. TLF11251EP (PG-TSDSO-14) extended temp range, TLF11251LD (PG-TSON-10) for AOI. EVRC for 2nd gen TriCore™ AURIX™ microcontrollers. Connect to pre-regulator output for µC-LDO de-loading & efficiency. Compliant with EVRC concept.

Features

  • Integrated PMOS and NMOS complementary output bridge with 2.5 A current capability
  • Integrated gate drivers
  • Single control input with an integrated dead-time logic allows for optimized control and high efficiency
  • Output current sensing and limitation
  • Over-temperature protection
  • Low quiescent current
  • No external dead-time adjustment required
  • AEC Qualified
  • Grade 1 PG-TSON-10
  • Grade 0 PG-TSDSO-14

Benefits

  • Efficiency increase
  • Thermal optimization
  • Proven operation with high-end 2nd generation TriCore™ AURIX™ 32-bit microcontrollers (TC38x/TC39x)
  • Package line-up for all use cases
