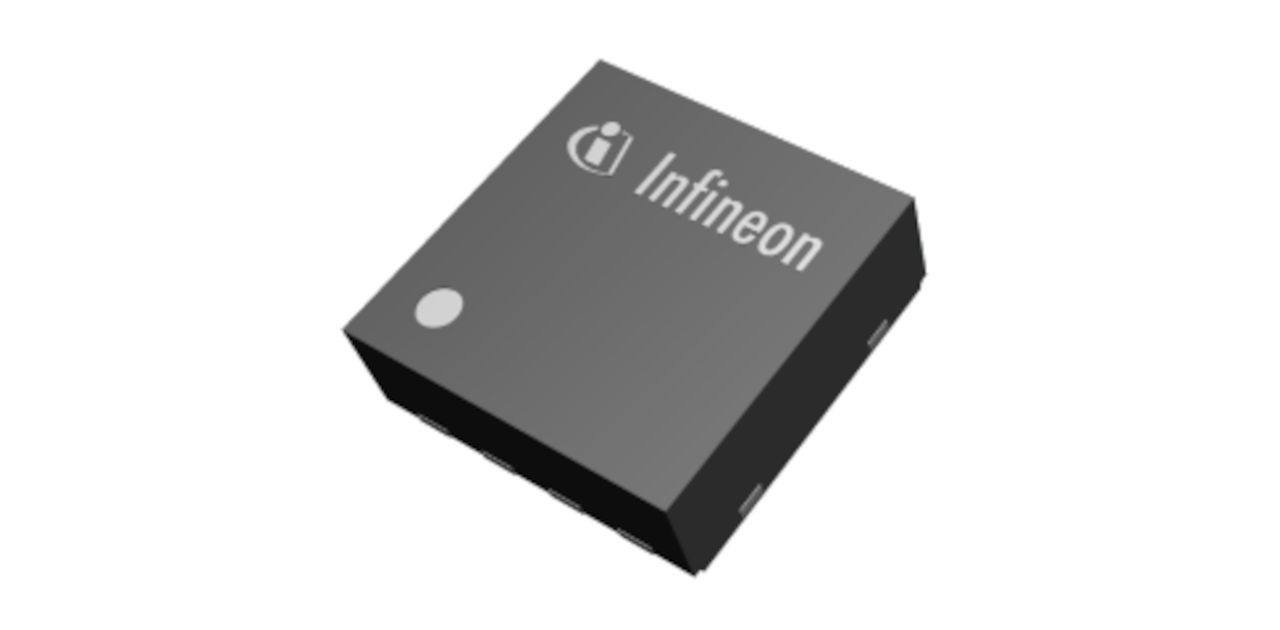

TLE9351BVLE

NEW
The TLE9351BVLE High Speed CAN FD transceiver for use in HS CAN networks for automotive and for industrial applications
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9351BVLE
TLE9351BVLE
Data Sheet

Product details

  • Additional Features
    Standby mode, Vio
  • Base Product
    TLE935
  • Bus Wake-Up Capability
    Yes
  • Family
    CAN Transceiver
  • Package
    TSON-8
  • Planned to be available until at least
    2038
  • Product Category
    Transceivers
  • Qualification
    Automotive
  • Quiescent Current
    < Max 20 µA on Vcc in Standby
  • Standards
    ISO11898-2
  • Supply Voltage
    5 V
  • Transmission Rate max
    5 MBit/s
  • Type
    CAN FD, CAN
  • Wake-up Inputs
    No
OPN
TLE9351BVLEXUMA1
Product Status coming soon
Infineon Package PG-TSON-8
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package PG-TSON-8
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE9351BVLE is a high-speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications. It is designed to fulfill the requirements of ISO 11898-2:2024 physical layer specification as well as SAE J1939 and SAE J2284. The TLE9351BVLE is available in a RoHS compliant, halogen free PG-TSON-8 package.

Features

  • Compliant with ISO 11898-2:2024
  • TSON-8 leadless package
  • CAN FD data frame up to 5 Mbit/s
  • Low EMI allows use without CMC
  • Excellent ESD robustness
  • TxD timeout function
  • Low leakage current in power-down state
  • Overtemperature protection
  • Bus wake-up pattern (WUP) function
  • Standby mode
  • VIO input for MCU interface
  • Green Product (RoHS compliant)

Benefits

  • Low current consumption
  • Excellent ESD performance
  • TSON-8 leadless package

Applications
