TLE92464ED

TLE92464ED is designed for control of 4 linear solenoids in automatic transmission, electronic stability control, and active suspension applications.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE92464ED
TLE92464ED
ea.
Data Sheet

Product details

  • Channels
    4
  • Classification
    ISO 26262-compliant
  • Comments
    4 Channel Integrated Constant Current Control IC
  • Operating Voltage
    4 V to 40 V
  • Output Current
    1.5 A
  • Currently planned availability until at least
    2038
  • Quiescent Current
    0,01mA
  • RDS (on) (multiple)
    115 mOhm
  • SPI
    32 Bit
Recommended
OPN
TLE92464EDXUMA1
Product Status active and preferred

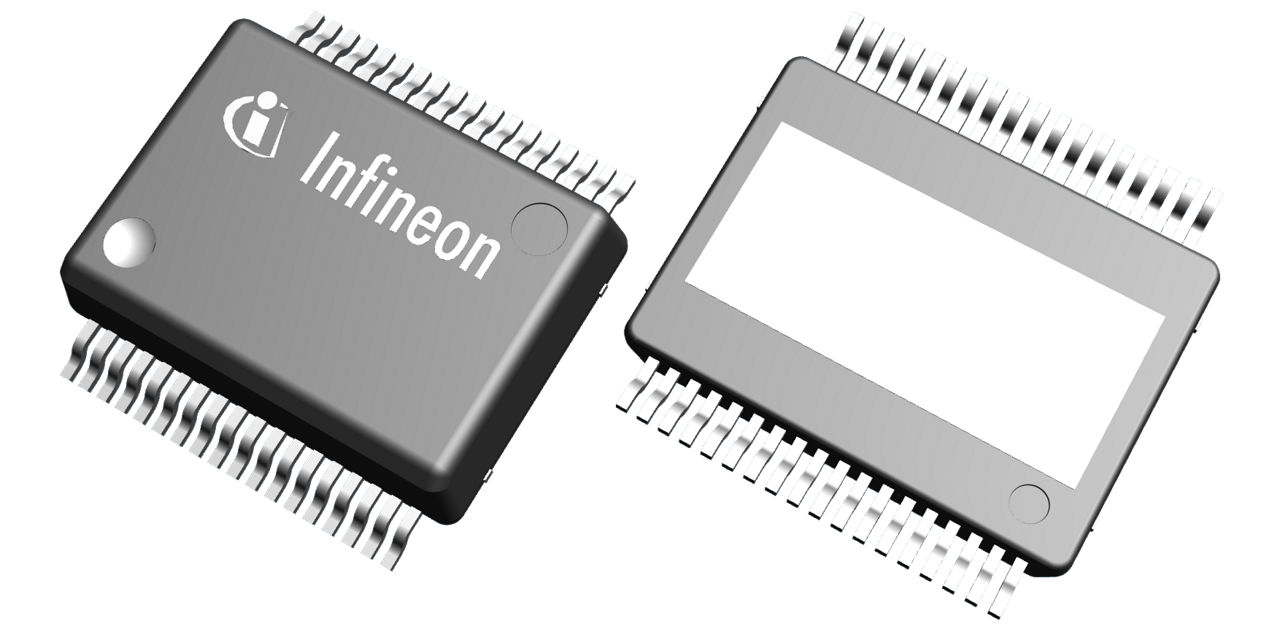

Infineon Package
PG-DSO-36
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-36
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE92464ED efficiently controls current through inductive loads with <1% error. It offers programmable target currents from 0-1500mA (15-bit resolution) and supports dither currents up to 1800mA. Its dither generator adds a programmable triangular/trapezoidal waveform to the setpoint. With integrated drive transistors and current sensing resistors, it minimizes external components. TLE92464ED is ISO 26262 compliant, ensuring ASIL C safety.

Features

  • Four independent low side channels
  • <1% current control accuracy
  • Programmable setpoint from 0mA to 1.5A
  • Load current including dither 1.8A
  • Current in parallel channel mode 2.7A
  • Integrated dither generator
  • Integrated sense resistor RSHUNT = 140mΩ
  • Excellent immunity to large load supply
  • Operation down to 3.5 V at VDD pin
  • 34 bit SPI with 8 bit CRC & SPI watchdog
  • Sophisticated protection and diagnostic

Benefits

  • Enables ASIL D on system level
  • Full temp range up to 175°C
  • ±1% Accuracy from -40°C to 150°C
  • Excellent Battery Ripple Rejection
  • simplifies 6CH TLE92466ED use.
  • Utilize TLE92466ED for software reuse
  • Scalable solution
  • Integrated Power Devices
  • Optimize component placement
  • Implement current limit, slew rate
  • Improved Short-to-Battery performance

Diagrams

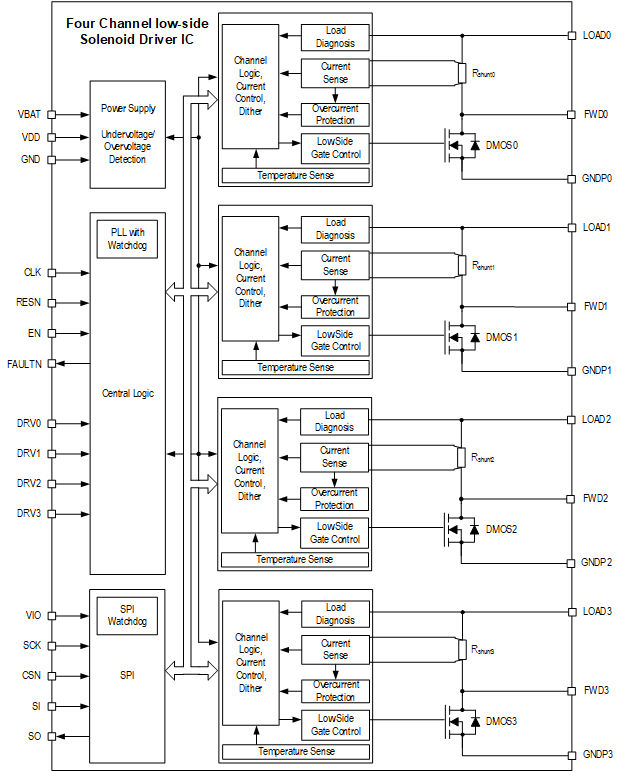

TLE92464ED_Block_diagram_4CHx
TLE92464ED_Block_diagram_4CHx
TLE92464ED_Block_diagram_4CHx TLE92464ED_Block_diagram_4CHx TLE92464ED_Block_diagram_4CHx
TLE92464ED_Block_diagram_4CHx TLE92464ED_Block_diagram_4CHx TLE92464ED_Block_diagram_4CHx
×
