TLE7268SK

The TLE7268SK is Infineon’s second generation DUAL LIN transceiver designed for data transmission rates up to 20 kbps.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE7268SK
TLE7268SK
ea.
Data Sheet

Product details

  • Additional Features
    Multiple Channel, 2 x LIN trx, INH, EN
  • Bus Wake-Up Capability
    Yes
  • Family
    LIN Transceiver
  • Features
    Multiple Channel, INH, EN, 2 x LIN trx
  • Planned to be available until at least
    2038
  • Qualification
    Automotive
  • Quiescent Current
    < 20 µA sleep mode
  • Standards
    LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4
  • Supply Voltage
    3.3 V, 5 V
  • Transmission Rate max
    20 kBit/s
  • Type
    LIN
  • Wake-up Inputs
    Bus Wake-up
Recommended
OPN
TLE7268SKXUMA1
Product Status active and preferred
Infineon Package

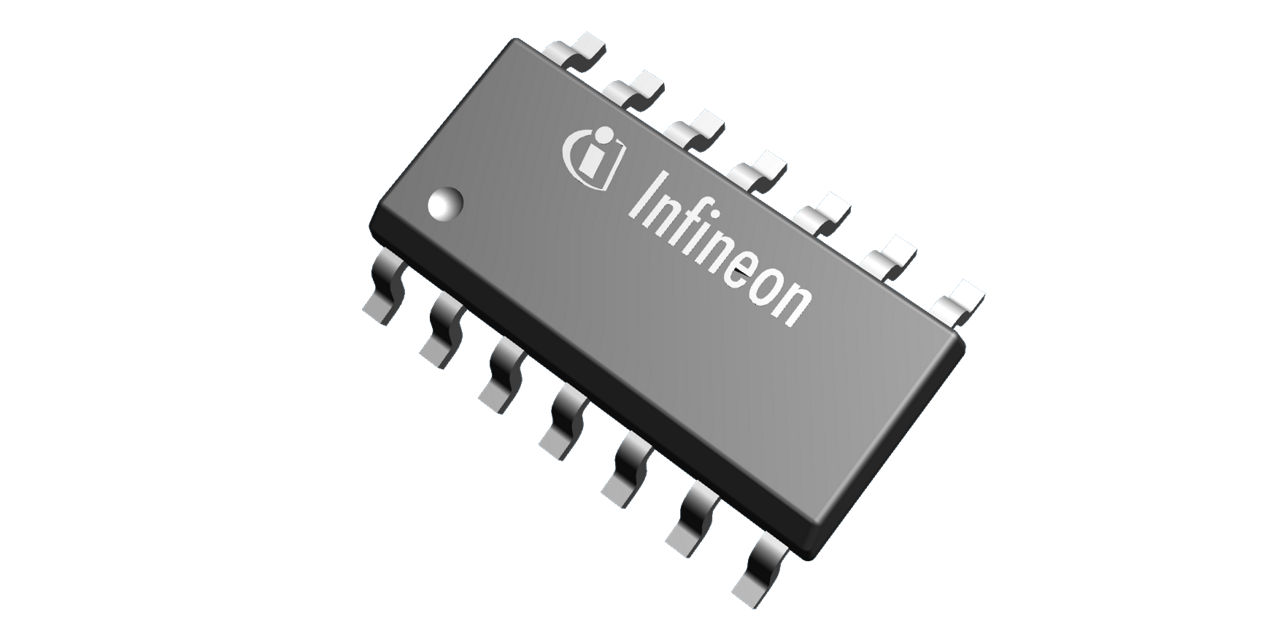

PG-DSO-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE7268SK in DSO-14 and TLE7268LC in tiny leadless TSON-14 (LTI) package are offered. In automotive body and interior electronics, LIN networks are increasing. TLE7268SK provides a modular PCB placement capability with other LIN transceivers like TLE7258SJ, offering flexibility and space-efficient layout. TLE7268 is suitable for gateways and ultrasonic parking modules with dedicated LIN bus connections.

Benefits

  • Two independent single-wire LIN transceivers in one device
  • Compliant to ISO 17987-4, LIN Specification 2.2 A and SAE J2602
  • Very low current consumption in Sleep mode with wake-up capability
  • Digital I/O levels compatible for 3.3 V and 5 V microcontrollers
  • Very high ESD robustness
  • Available in PG-DSO-14 and also in tiny PG-TSON-14 package
  • Pin and footprint compatible with single LIN transceivers such as TLE7257SJ, TLE7258SJ, and TLE7259-3GE
