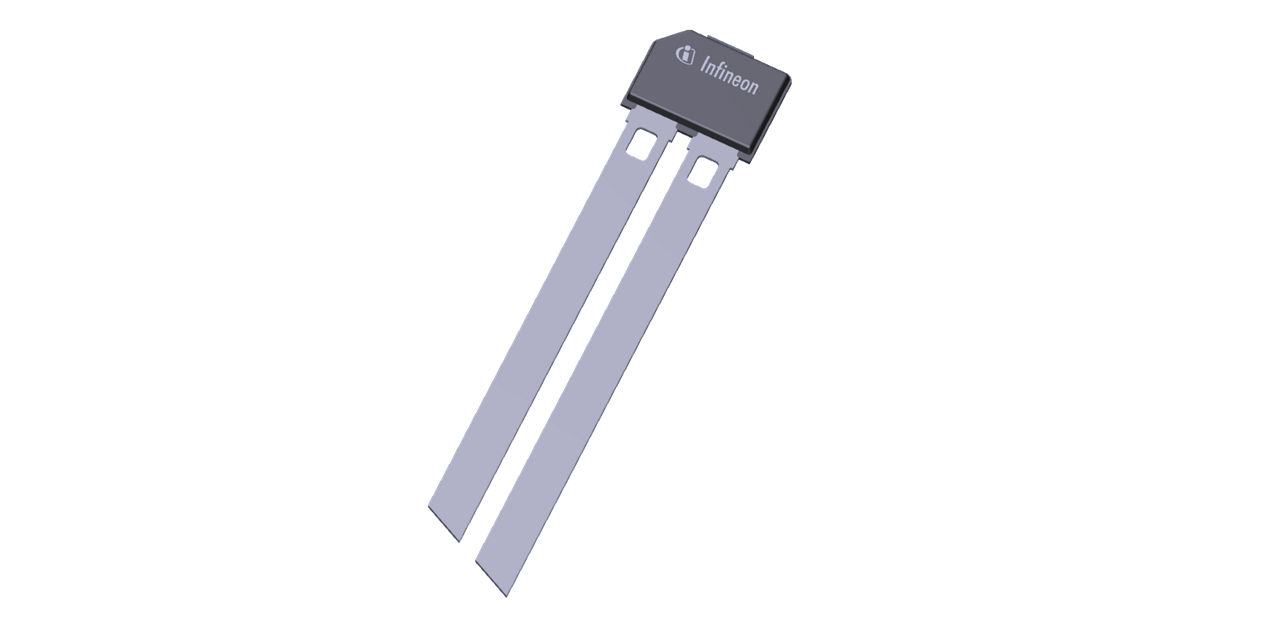

TLE5045IC-R050

XENSIV™ - TLE5045iC-R050 magnetic wheel speed sensor for vehicle control systems
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE5045IC-R050
TLE5045IC-R050
ea.
Data Sheet

Product details

  • Applications
    Wheel Speed Sensor
  • Budgetary Price €/1k
    0.72
  • C Package Available
    no
  • Chopped Monocell
    -
  • Classification
    ISO 26262-compliant
  • Direction Detection
    no
  • Enhanced ESD
    -
  • Interfaces
    Current
  • Planned to be available until at least
    2039
  • Programmable
    -
  • Technology
    GMR
  • True Power On
    -
  • Type of Hysteresis
    hidden adaptive
  • Vibration Suppression
    -
Recommended
OPN
TLE5045ICR050HALA1
Product Status active and preferred
Infineon Package
PG-SSO-2
Package Name N/A
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSO-2
Package Name -
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon's XENSIV TLE5045iC is an advanced wheel speed sensor, ideal for vehicle control systems. It offers best-in-class jitter performance, ensuring accurate rotational speed sensing. Its high sensitivity to magnetic fields over a wide temperature range makes it suitable for indirect tire pressure monitoring systems (iTPMS). It meets rigorous automotive standards with enhanced robustness to ESD and EMC, requiring no extra external components.

Features

  • Tailored for vehicle control systems
  • Low jitter 0.02% due to high switching
  • Two-wire current interface 7mA/14mA
  • integrated Giant Magneto Resistance (iGMR)
  • Robustness magnetic disturbances 2mT
  • Sensitivity enables outstanding air gap
  • Advanced EMC concept
  • Micro Break feature
