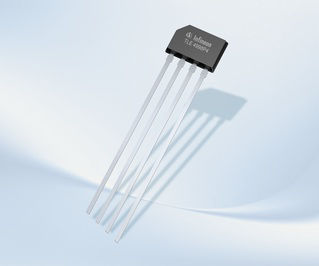

TLE4998P4

XENSIV™ - TLE4998P4 linear Hall IC providing a digital PWM signal as well as AEC-Q100 qualification
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4998P4
TLE4998P4
Data Sheet

Product details

  • Applications
    Linear Hall
  • Budgetary Price €/1k
    1.66
  • Classification
    ISO 26262-ready
  • Interfaces
    PWM
  • Package
    Leaded
  • Currently planned availability until at least
    2033
  • Programmable
    yes
Recommended
OPN
TLE4998P4HALA1
Product Status active and preferred
Infineon Package
PG-SSO-4
Package Name N/A
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SSO-4
Package Name -
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The linear sensor TLE4998P is designed for accurate rotation&position detection, and current measurement. It offers a digital PWM signal, ideal for direct decoding by units measuring rectangular signals. The IC is produced in BiCMOS technology with high voltage capability and reverse polarity protection. Digital signal processing with 16-bit DSP architecture ensures excellent long-time stability. PWM output frequency is selectable (122-1953 Hz).

Features

  • SPC protocol with enhanced interface
  • 20-bit Digital Signal Processing (DSP)
  • Digital temperature compensation
  • 16-bit overall resolution
  • Operates within automotive temp range
  • Low drift of O/P signal over temperature
  • Programmable parameters stored in EEPROM
  • Supply voltage 4.5 - 5.5 V
  • Operation between -200mT&+200mT
  • Reverse-polarity&overvoltage protection
  • Output short-circuit protection
  • On-board diagnostics (overvoltage)
