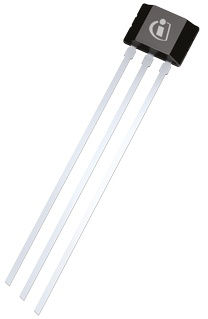

TLE4998C3C

XENSIV™ - TLE4998C3C linear Hall IC for highly accurate position detections as well as current measurement applications
Data Sheet
board
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4998C3C
TLE4998C3C
Data Sheet

Product details

  • Applications
    Linear Hall
  • Budgetary Price €/1k
    1.83
  • Classification
    ISO 26262-ready
  • Interfaces
    SPC
  • Package
    Leaded
  • Programmable
    yes
OPN
TLE4998C3CHAMA1
Product Status not for new design
Infineon Package PG-SSO-3
Package Name N/A
Packing Size 1500
Packing Type AMMO-PACK
Moisture Level N/A
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package PG-SSO-3
Package Name -
Packing Size 1500
Packing Type AMMO-PACK
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The Infineon linear Hall IC TLE4998C3C is tailored for precise angle, position detection, and current measurement. It offers a digital SPC signal using the SENT protocol and provides "range selection" and "ID selection" modes. Produced in BiCMOS technology, it features reverse-polarity protection, 16-bit DSP architecture, and high resolution for accurate measurements.

Features

  • SPC (Short PWM Code) protocol with enhanced interface features based on SENT (Single Edge Nibble Transmission,defined by SAE J2716)
  • 20-bit Digital Signal Processing (DSP)
  • Digital temperature compensation
  • 16-bit overall resolution
  • Operates within automotive temperature range
  • Low drift of output signal over temperature and lifetime
  • Programmable parameters stored in EEPROM with single-bit error correction: SPC protocol modes: synchronous transmission, dynamic range selection, ID selection mode,SPC unit time,Magnetic range and sensitivity (gain), polarity of the output slope,Offset,Bandwidth,Clamping levels,Customer temperature compensation coefficients,Memory lock Re-programmable until memory lock
  • Supply voltage 4.5 - 5.5 V (4.1 - 16 V in extended range)
  • Operation between -200 mT and +200 mT within three ranges
  • Reverse-polarity and overvoltage protection for all pins
  • Output short-circuit protection
  • On-board diagnostics (overvoltage, EEPROM error, start up)
  • Output of internal magnetic field values and temperature
  • Programming and operation of multiple sensors with common power supply
  • Two-point calibration of magnetic transfer function without iteration steps
  • High immunity against mechanical stress, EMC, ESD
  • Package with two capacitors:47nF(VDD to GND) and 4.7nF(OUT to GND)
  • Automotive qualified acc. to AEC-Q100
