TLE4973-AE35S5-S0001

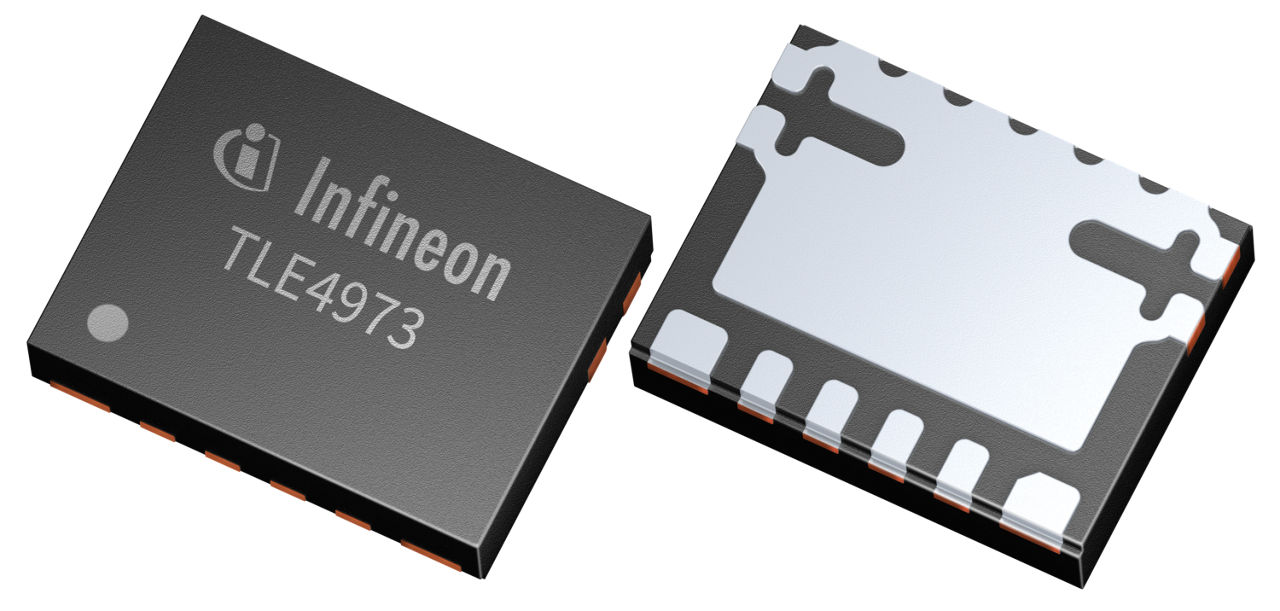

XENSIV™ - TLE4973-AE35S5-S0001 high accuracy coreless current sensor with digital control and diagnostic interface in a leadless VSON-6 package
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4973-AE35S5-S0001
TLE4973-AE35S5-S0001
Data Sheet

Product details

  • Accuracy
    2 %
  • Classification
    ISO 26262-compliant, AEC-Q100
  • Diagnosis
    OCD, OV, UV, diagnosis mode
  • Interfaces
    Analog
  • Measurement range
    34 mT
  • Currently planned availability until at least
    2038
  • Supply Voltage
    4.5 - 5.5
Recommended
OPN
TLE4973AE35S5S0001XUMA1
Product Status active and preferred
Infineon Package
PG-VSON-6
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VSON-6
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The Infineon TLE4973-AE35S5-S0001 works at 5 V and provides an analog output proportional to the magnetic field measured as well as over current detection output. Digital control and diagnostic interface provides temperature readout, safety status readout, read/write programming access to internal E2PROM, control of diagnosis mode. Infineon’s Hall technology enables accurate and highly linear measurement. The measurement range up to ±34 mT allows to sense currents up to 2 kA without the negative effects like hysteresis and saturation.

Features

  • High accurate coreless sensor
  • 5V supply voltage
  • Digital control interface
  • Very fast overcurrent detection
  • Programmable sensitivity
  • Programmable overcurrent threshold
  • ISO 26262-compliant (ASIL B)

Benefits

  • No hysteresis, no saturation
  • Protection against over currents
  • Very low power dissipation
  • Fit for safety critical application
  • Reliable measurement over lifetime

Applications
