TLE4801S16-S0000

XENSIV™ - TLE4801S16-S0000 enabling high accuracy, stray field robust inductive sensing
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

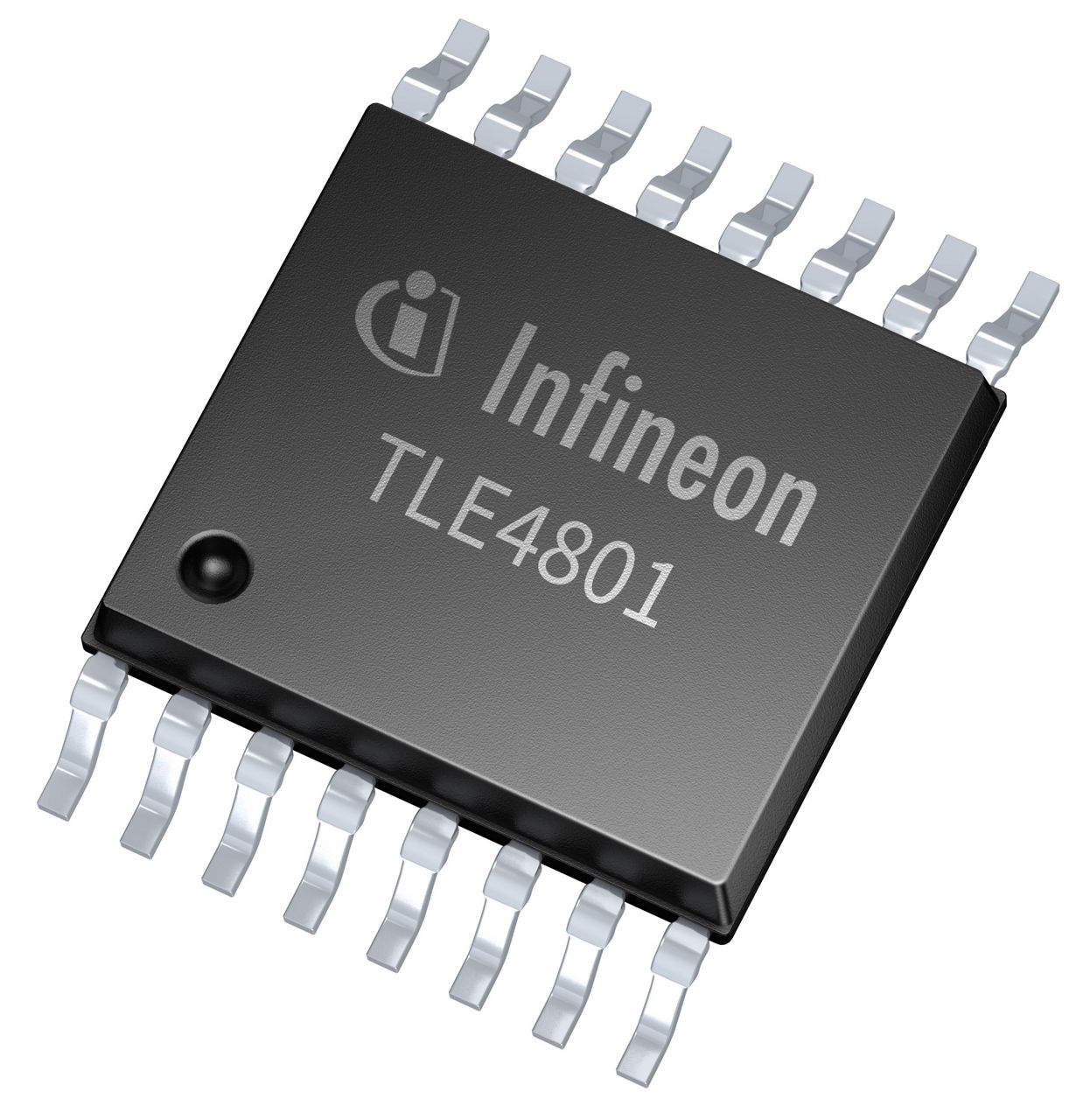

TLE4801S16-S0000
TLE4801S16-S0000
ea.
Data Sheet

Product details

  • Classification
    ISO 26262-compliant
  • Interfaces
    SENT
  • Package
    PG-TDSO-16
  • Planned to be available until at least
    2038
  • Supply Voltage
    -18 V to 28 V
  • Technology
    inductive
  • Temperature
    -40 °C to 150 °C
Recommended
OPN
TLE4801S16S0000XUMA2
Product Status active and preferred
Infineon Package
PG-TSSOP-16
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSSOP-16
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The inductive sensing products TLE480x support excellent stray field robustness providing intrinsically an significantly higher accuracy compared to magnetic sensor technologies. The design is done according ISO 26262 Safety Element out of Context and enables system design safety levels up to ASIL D. The TLE4802 includes an embedded security feature which enables for ISO 21434 compliance on system-level

Features

  • Stray field robust acc. ISO 11452-8:2015
  • Based on inductive measurement principle
  • Single device for torque and angle sensing
  • Includes calibration & configuration registers
  • Meets ASIL D acc. ISO 26262:2018 (SEooC)
  • Communication interface
  • SENT (Single Edge Nibble Transmission, SAE J2716) protocol
  • Voltage and rev. polarity protection
  • PG-TSSOP-16 SMD package
  • Grade 0: -40°C to 150°C
  • RoHS compliant and halogen-free package

Benefits

  • Saves cost of shielding
  • Supports high precision sensing
  • Saves costs and efforts for functional safe designs

Applications
