TLE4699E

The TLE4699E is a monolithic integrated low drop out fixed output voltage regulator for loads up to 200 mA.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4699E
TLE4699E
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    0.82
  • Dropout Voltage
    160 mV
  • Early Warning
    yes
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3.3 V to 45 V
  • Output Current max
    200 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    65 µA
  • Regulator Type
    General Purpose
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE4699EXUMA1
Product Status active and preferred
Infineon Package
PG-SSOP-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SSOP-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE4699, compatible with the TLE4299, is designed to supply microprocessor systems in automotive environments. It features integrated reset and protection circuits. Wide operating temperature range. Early warning function at pin SI. Reset threshold can be modified with optional resistor divider. Available in PG-DSO-14 and thermally enhanced PG-SSOP-14 EP packages.

Features

  • Output Voltage 5 V ± 2%
  • Current Capability 200 mA
  • Ultra Low Current Consumption
  • Very Low Drop Out Voltage
  • Below 1µA Current Consumption off mode
  • Reset Circuit Sensing the Output Voltage
  • O/P Active Low Down to VQ=1V
  • Integrated Early Warning Comparator
  • Excellent Line Transient Robustness
  • I ≤ +45 V
  • Reverse Polarity Protection
  • Short Circuit Protected

Benefits

  • Robust Protection Features
  • Wide input & temp range operation

Diagrams

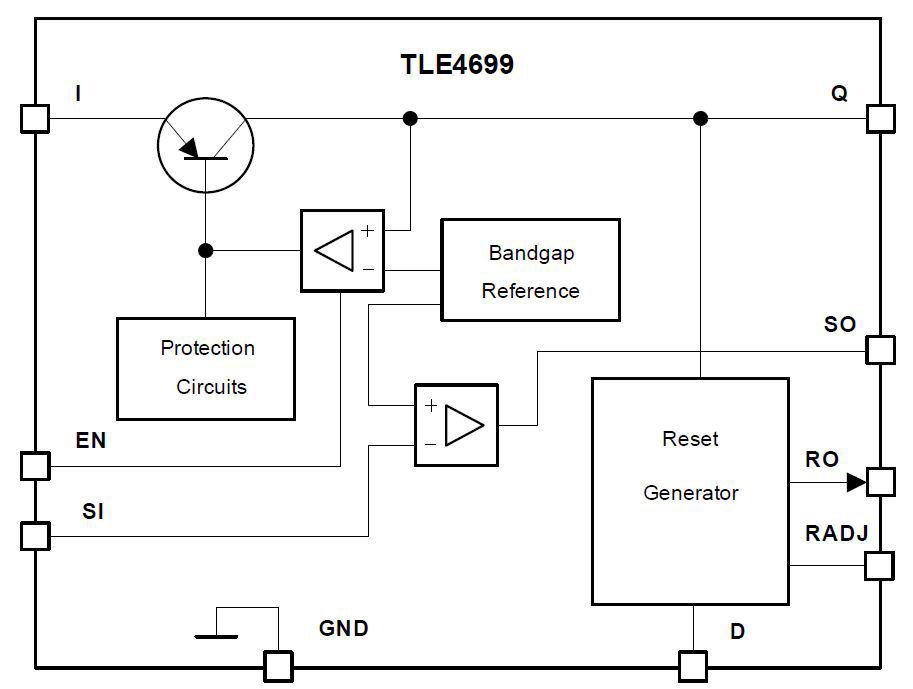

TLE4699-Block-Diagram
TLE4699-Block-Diagram
TLE4699-Block-Diagram TLE4699-Block-Diagram TLE4699-Block-Diagram
×
