TLE4678GM

END OF LIFE
The TLE4678GM is a monolithic integrated low dropout fixed output voltage regulator for loads up to 200 mA.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4678GM
TLE4678GM
Data Sheet

Product details

  • Accuracy
    2 %
  • Base Product
    n.a
  • Budgetary Price €/1k
    0.81
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.35 V to 45 V
  • Output Current max
    200 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    n.a
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    70 µA
  • Regulator Type
    General Purpose
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    yes
OPN
TLE4678GMXUMA2
Product Status discontinued
Infineon Package PG-DSO-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package PG-DSO-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE4678 is suitable for supplying microprocessor systems in automotive environments, featuring integrated reset and watchdog function and various protection circuits. The watchdog circuitry can be disabled when the output current drops below a programmable threshold, enabling a microcontroller to switch to stand-by mode. Additionally, it is available in a PG-DSO-14 package and in a small thermally enhanced PG-SSOP-14 exposed pad package.

Features

  • Output Voltage 5 V ± 2%
  • Current Capability 200 mA
  • Ultra Low Current Consumption
  • Very Low Dropout Voltage
  • Watchdog Circuit for Monitoring a Microprocessor with Programmable Load-dependent Activating Threshold
  • Reset Circuit Sensing the Output Voltage with Programmable Switching Threshold and Delay Time
  • Reset Output Active Low Down to V Q= 1 V
  • Separated Reset and Watchdog Output
  • Excellent Line Transient Robustness
  • Maximum Input Voltage -42 V ≤ V I ≤ +45 V
  • Reverse Polarity Protection
  • Short Circuit Protected
  • Over temperature Shutdown
  • Automotive Temperature Range -40 °C ≤ T j  ≤ 150 °C
  • Available in a small thermally enhanced PG-SSOP-14 package
  • Green Product (RoHS Compliant)
  • AEC Qualified

Benefits

  • Robust Protection Features
  • Wide Input Operation and Temperature Range

Applications

Diagrams

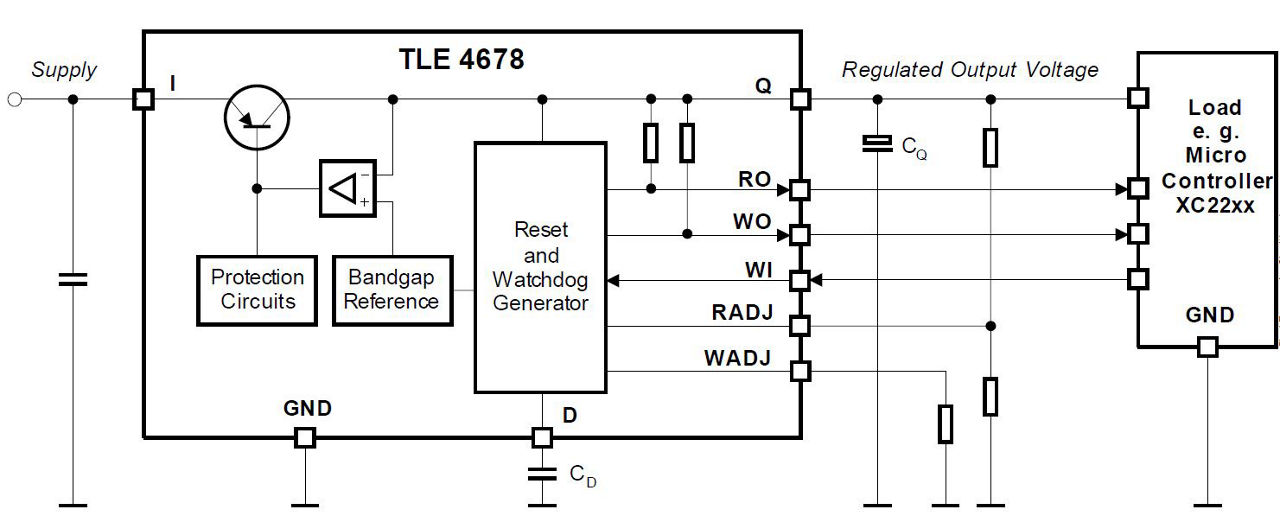

TLE4678-Block-Diagram
TLE4678-Block-Diagram
TLE4678-Block-Diagram TLE4678-Block-Diagram TLE4678-Block-Diagram
×
