TLE4476D

The TLE4476D is a monolithic integrated voltage regulator providing 2 output voltages, Q1 - 3.3 V and Q2 - 5 V.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4476D
TLE4476D
ea.
Data Sheet

Product details

  • Accuracy
    4 %, 4 %
  • Budgetary Price €/1k
    1.08
  • Dropout Voltage
    1200 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Hold
    no
  • Operating Temperature
    -40 °C to 170 °C
  • Operating Voltage
    4.5 V to 42 V, 5.7 V to 42 V
  • Output Current max
    430 mA, 350 mA
  • Output Voltage Type
    3.3 V, 5 V
  • Over Voltage Protection
    yes
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    300 µA
  • Regulator Type
    Application Specific - 24V
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE4476DATMA1
Product Status active and preferred
Infineon Package
PG-TO252-5
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-5
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The device is available in the PG-TO252-5-11 (D-Pak) package. Output 2 can be switched ON/OFF via the Enable input EN. The TLE 4476 is designed to supply microprocessor systems under the severe conditions of automotive applications and is therefore equipped with additional protection functions against overload, short circuit and over temperature.

Features

  • Output 1: 350 mA; 3.3 V ± 4%
  • Output 2: 430 mA; 5.0 V ± 4%
  • Enable Input for Output 2
  • Low Quiescent Current in OFF State
  • Wide Operation Range: up to 42 V
  • Reverse Battery Protection: up to 42 V
  • Wide Temperature Range: -40 °C to 170 °C
  • Over Voltage Protection up to 65 V
  • Over Temperature Protection
  • Overload Protection
  • Green Product (RoHS compliant)

Benefits

  • Robust Protection Features
  • Wide input & temp range operation

Diagrams

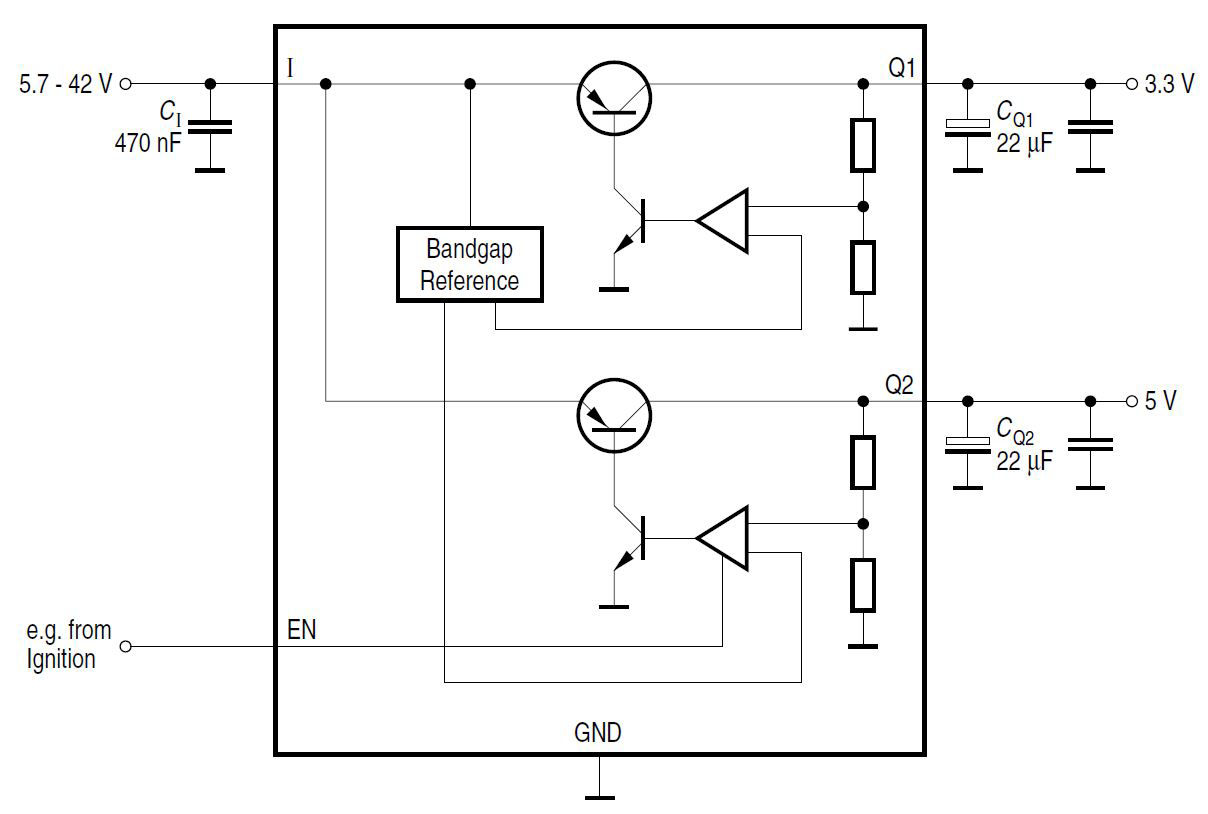

TLE4476-Block-Diagram
TLE4476-Block-Diagram
TLE4476-Block-Diagram TLE4476-Block-Diagram TLE4476-Block-Diagram
TLE4476-Application-Diagram TLE4476-Application-Diagram TLE4476-Application-Diagram
×
