TLE4471G

The TLE4471G is a monolithic integrated very low-drop triple voltage regulator.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4471G
TLE4471G
Data Sheet

Product details

  • Accuracy
    2 %, 0.5 %, 0.5 %
  • Budgetary Price €/1k
    2.11
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear Application Specific
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 40 V
  • Output Current max
    450 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    yes
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    1800 µA
  • Regulator Type
    Application Specific - 24V
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    yes
Recommended
OPN
TLE4471GAUMA1
Product Status active and preferred
Infineon Package
PG-DSO-20
Package Name N/A
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DSO-20
Package Name -
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE4471 device includes a watchdog for microcontroller supervision, an under voltage reset, a power on reset, and extended enabling features. The watchdog and reset timing can be chosen independently. It is available in a Power PG-DSO-20 package. Designed for automotive applications with protection against overload, short circuit, and over temperature. Tj = -40 to 150°C. Can be used in other applications as well.

Features

  • Triple Voltage Regulator
  • O/P V 5V with 450 mA Current Capability
  • Two tracked Outputs for 50 mA and 100 mA
  • Enable Function for main and tracked O/P
  • Reset with adjustable Threshold
  • Under voltage- and Power On-Reset
  • Independent Watchdog- and Reset delay
  • Wide Temperature Range
  • Over temperature Protection
  • Over voltage Protection
  • Reverse Polarity Proof

Benefits

  • Robust Protection Features
  • Wide input & temp range operation

Diagrams

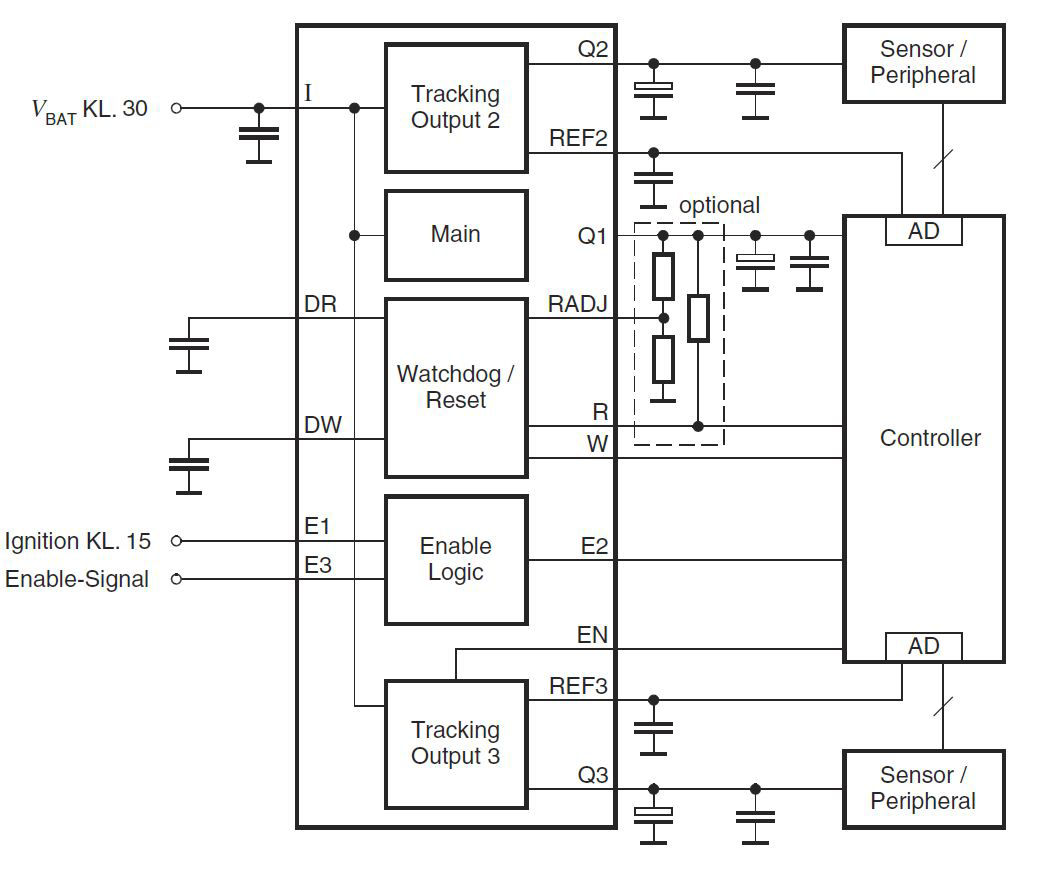

TLE4471-Application-Diagram
TLE4471-Application-Diagram
TLE4471-Application-Diagram TLE4471-Application-Diagram TLE4471-Application-Diagram

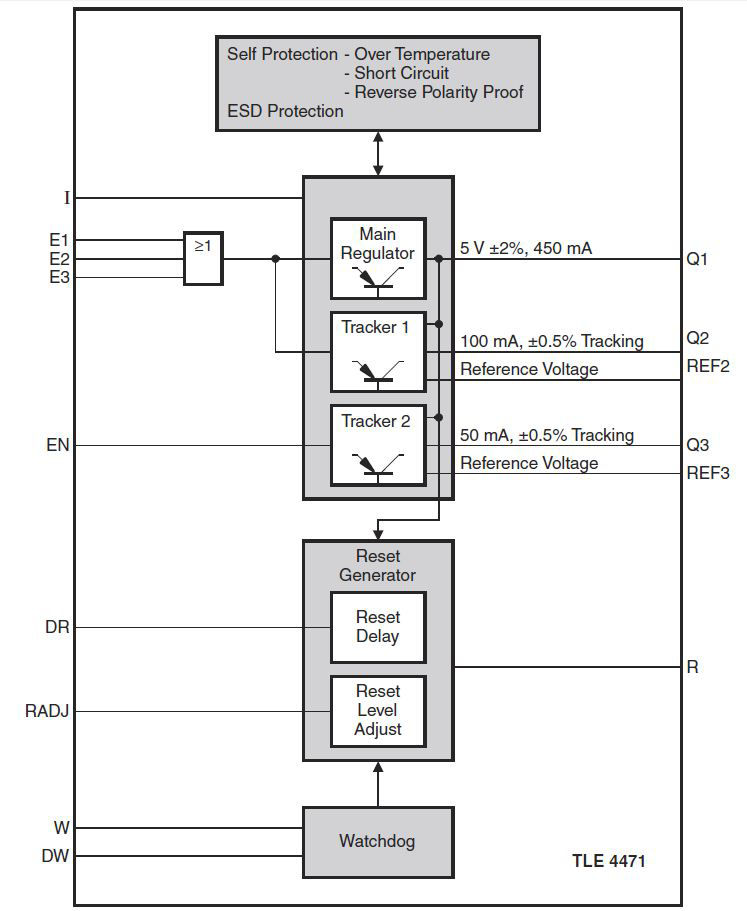

TLE4471-Block-Diagram TLE4471-Block-Diagram TLE4471-Block-Diagram
×
