TLE42694GM

The TLE42694GM is a monolithic integrated low dropout voltage regulator, especially designed for automotive applications.
Data Sheet

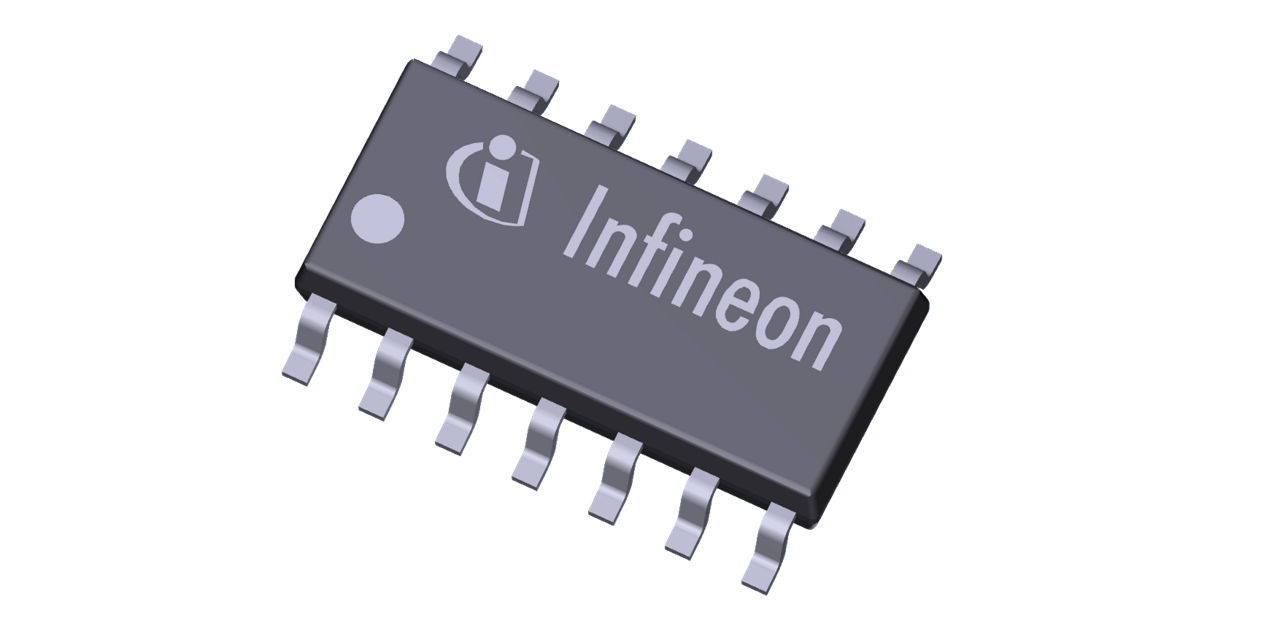

package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE42694GM
TLE42694GM
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Dropout Voltage
    250 mV
  • Early Warning
    Yes
  • Enable (=Inhibit)
    No
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    No
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 45 V
  • Output Current max
    100 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    No
  • Planned to be available until at least
    2038
  • Power Fail
    No
  • Power Good
    No
  • Qualification
    Automotive
  • Quiescent Current
    210 µA
  • Regulator Type
    General Purpose
  • Reset
    Yes
  • Status Output
    No
  • Watchdog
    No
Recommended
OPN
TLE42694GMXUMA2 TLE42694GMXUMA1
Product Status active and preferred not for new design
Infineon Package
PG-DSO-14
PG-DSO-14
Package Name N/A N/A
Packing Size 2500 2500
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 2a N/A
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock ea. in stock

Product Status
Active
Infineon Package
PG-DSO-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status not for new design
Infineon Package PG-DSO-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Regulate input voltage up to 45V to a stable 5.0V output, capable of driving loads up to 150mA. Features include short-circuit protection, over-temperature shutdown, and a reset signal for VQ,rt (4.65V). Programmable power-on reset delay with external capacitor. The sense comparator offers under-voltage monitoring. TLE42794 can replace TLE42694 if integrated resistors are not required.

Features

  • Output Voltage 5 V ± 2%
  • Ouput Current up to 150 mA
  • Very Low Current Consumption
  • Early Warning
  • Power-on and Undervoltage Reset with PDT
  • Reset Low Down to V Q = 1 V
  • Very Low Dropout Voltage
  • Output Current Limitation
  • Reverse Polarity Protection
  • Overtemperature Protection
  • Suitable for Automotive Electronics

Benefits

  • Robust Protection Features
  • Wide input & temp range operation
