TLE4267-2G

The TLE4267-2G is a 5-V low drop voltage regulator for automotive applications in a PG-TO263-7 package. It supplies an output current of > 400 mA.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4267-2G
TLE4267-2G
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Dropout Voltage
    300 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    yes
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 40 V
  • Output Current max
    400 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    yes
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    1300 µA
  • Regulator Type
    Application Specific - 24V
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE42672GATMA1
Product Status active and preferred
Infineon Package
PG-TO220-7
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO220-7
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The IC is shortcircuit-proof and has an overtemperature protection circuit.

Features

  • Output voltage tolerance ≤ ±2%
  • 400 mA output current capability
  • Low-drop voltage
  • Very low standby current consumption
  • Input voltage up to 40 V
  • Overvoltage protection up to 60 V
  • ESD protection up to 2000 V
  • Adjustable reset time
  • On/off logic
  • Overtemperature protection
  • Reverse polarity protection

Benefits

  • Robust protection features
  • integrated overvolatege detection

Applications

Diagrams

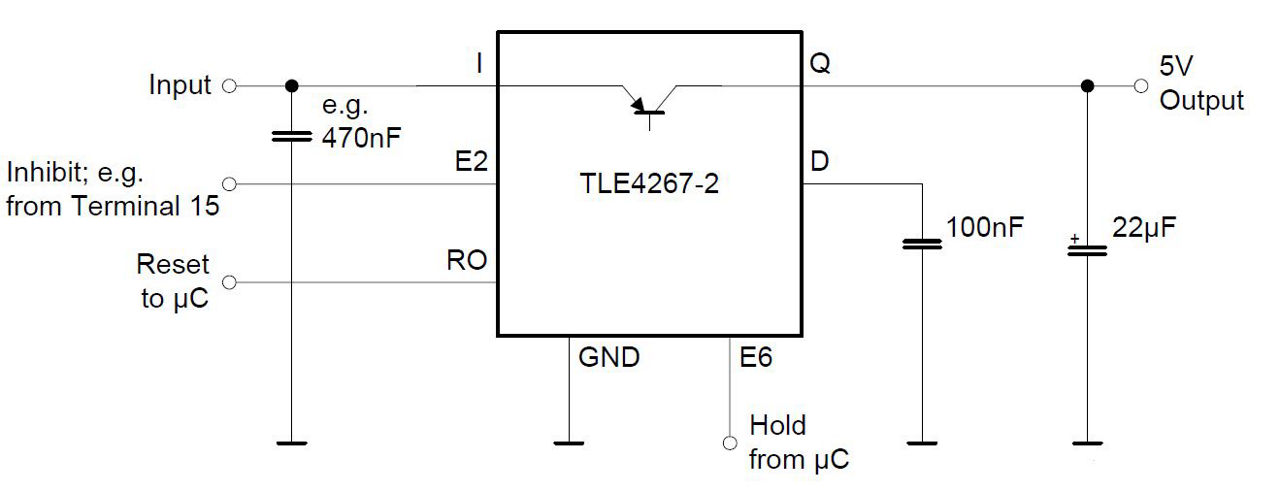

TLE4267-2-Application-Diagram
TLE4267-2-Application-Diagram
TLE4267-2-Application-Diagram TLE4267-2-Application-Diagram TLE4267-2-Application-Diagram

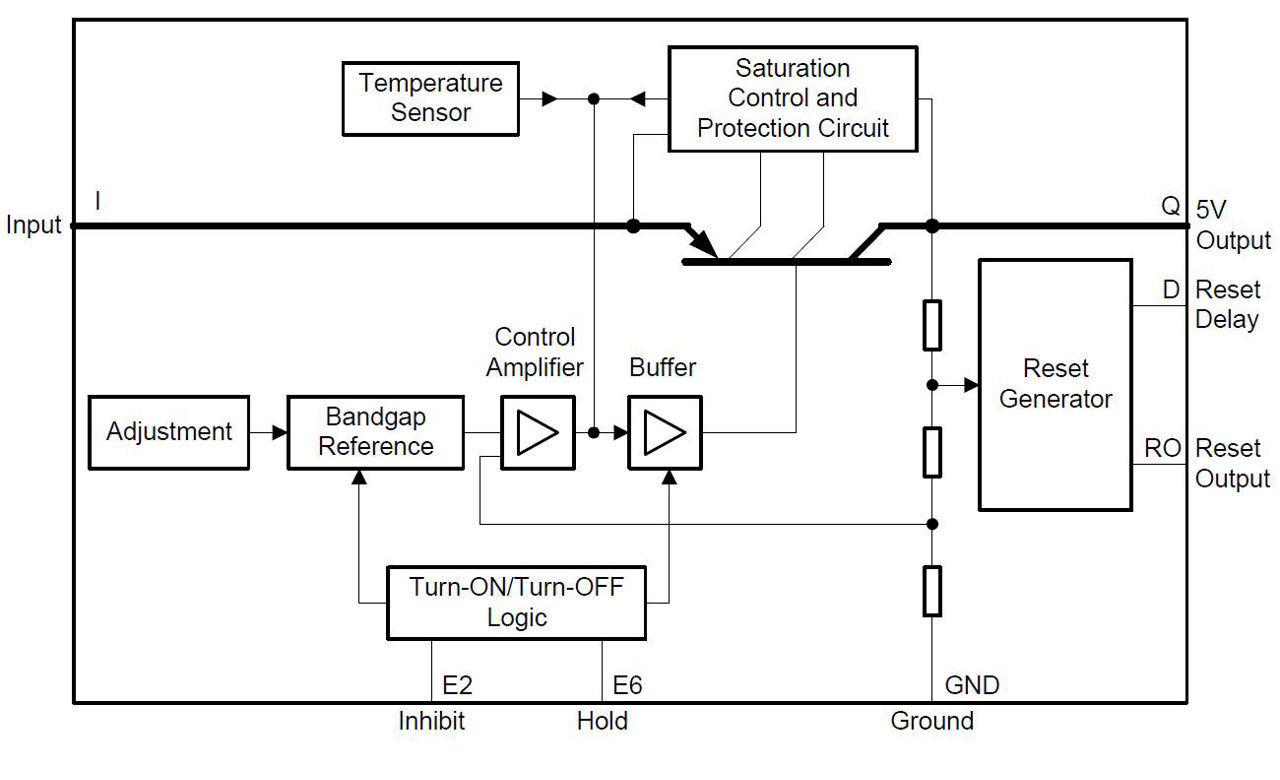

TLE4267-2-Block-Diagram TLE4267-2-Block-Diagram TLE4267-2-Block-Diagram
×
