TLE4266-2G

The TLE4266-2G is a monolithic integrated low-drop fixed voltage regulator which can supply loads up to 150 mA.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4266-2G
TLE4266-2G
ea.
Data Sheet

Product details

  • Accuracy
    3 %
  • Budgetary Price €/1k
    0.71
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 45 V
  • Output Current max
    100 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    40 µA
  • Regulator Type
    General Purpose
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
OPN
TLE42662GHTMA2
Product Status not for new design
Infineon Package
PG-SOT223-4
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-SOT223-4
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLE4266-2: Reduced quiescent current (<1µA OFF, 40µA ON). Low current alternative to TLE4266. PG-SOT223-4 package, pin compatible. Overload, short circuit, and overtemperature protection. Regulates input voltage up to 45V (±3% accuracy). Operating range: -40 to 150 °C. Turns on with high level at INH pin.

Features

  • Fixed output voltage 5.0 V or 3.3 V
  • Output voltage tolerance  ≤   ± 2%,  ± 3%
  • 150 mA current capability
  • Very low current consumption
  • Low-drop voltage
  • Overtemperature protection
  • Reverse polarity proof
  • Wide temperature range
  • Suitable for use in automotive electronics
  • Inhibit
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Robust protection features
  • Wide input operation and temperature range

Diagrams

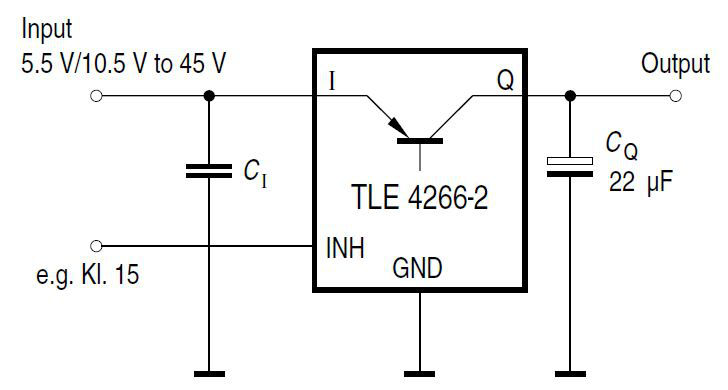

TLE4266-2-Application-Diagram
TLE4266-2-Application-Diagram
TLE4266-2-Application-Diagram TLE4266-2-Application-Diagram TLE4266-2-Application-Diagram

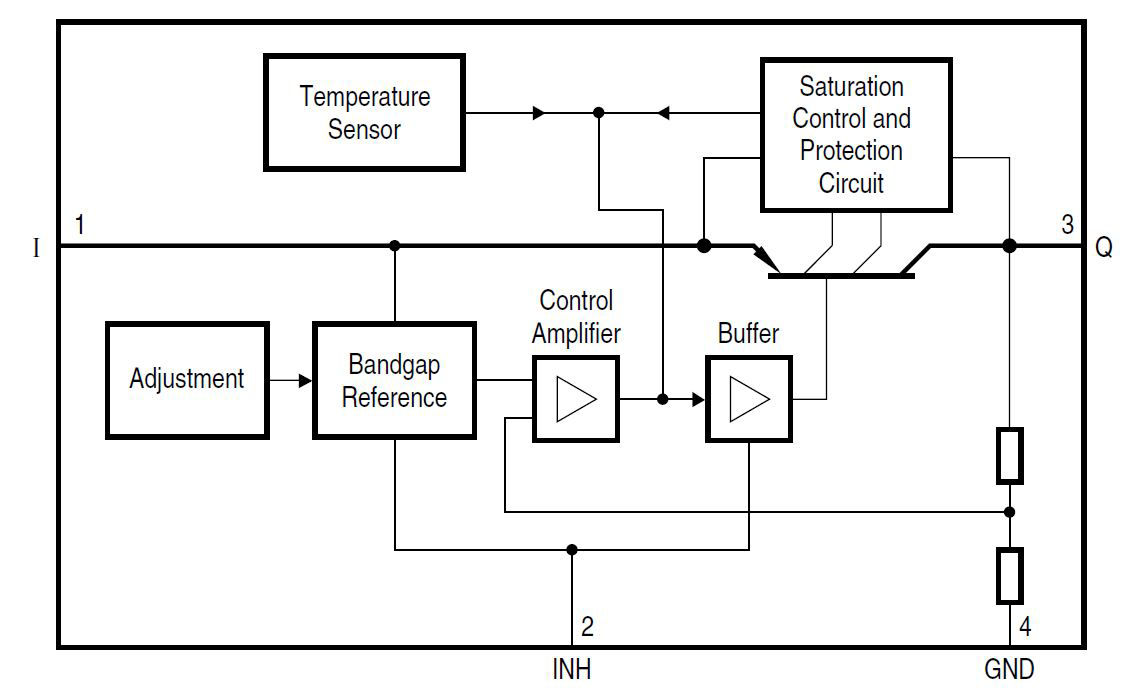

TLE4266-2-Block-Diagram TLE4266-2-Block-Diagram TLE4266-2-Block-Diagram
×
