TLE4253E

The TLE4253E is a monolithic integrated low-dropout voltage tracking regulator in small PG-DSO-8 packages.
Data Sheet
package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4253E
TLE4253E
ea.
Data Sheet

Product details

  • Accuracy
    0.5 %
  • Base Product
    TLE4253xx
  • Budgetary Price €/1k
    0.59, 0.59
  • Dropout Voltage
    280 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear Trackers
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3.5 V to 40 V
  • Output Current max
    250 mA
  • Output Voltage Type
    Tracking
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    120 µA
  • Regulator Type
    Trackers
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE4253EXUMA2 TLE4253EXUMA1
Product Status active and preferred not for new design
Infineon Package
PG-DSO-8
PG-DSO-8
Package Name N/A N/A
Packing Size 2500 2500
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 3 N/A
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status not for new design
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
IC designed for automotive applications, supplying off-board systems like sensors in engine management. Additional protection against reverse polarity and short circuit. Output voltage follows reference voltage with high accuracy. Input reference voltage can be 2.0 V or higher. Output can drive loads up to 250 mA. Shutdown mode reduces quiescent current. Suitable for low-power battery applications.

Features

  • Tight output tracking tolerance
  • Output voltage adjust down to 2.0 V
  • Stable with ceramic output capacitor
  • Flexibility of output voltage
  • 250 mA output current capability
  • Low dropout voltage
  • Very low current consumption in OFF mode
  • PG-DSO-8 packages
  • input voltage range -42 V to 45 V
  • Wide temperature range: -40 °C to 150 °C
  • Output short circuit to GND and battery

Benefits

  • Efficient and accurate V replication
  • Robust tracking power supply

Diagrams

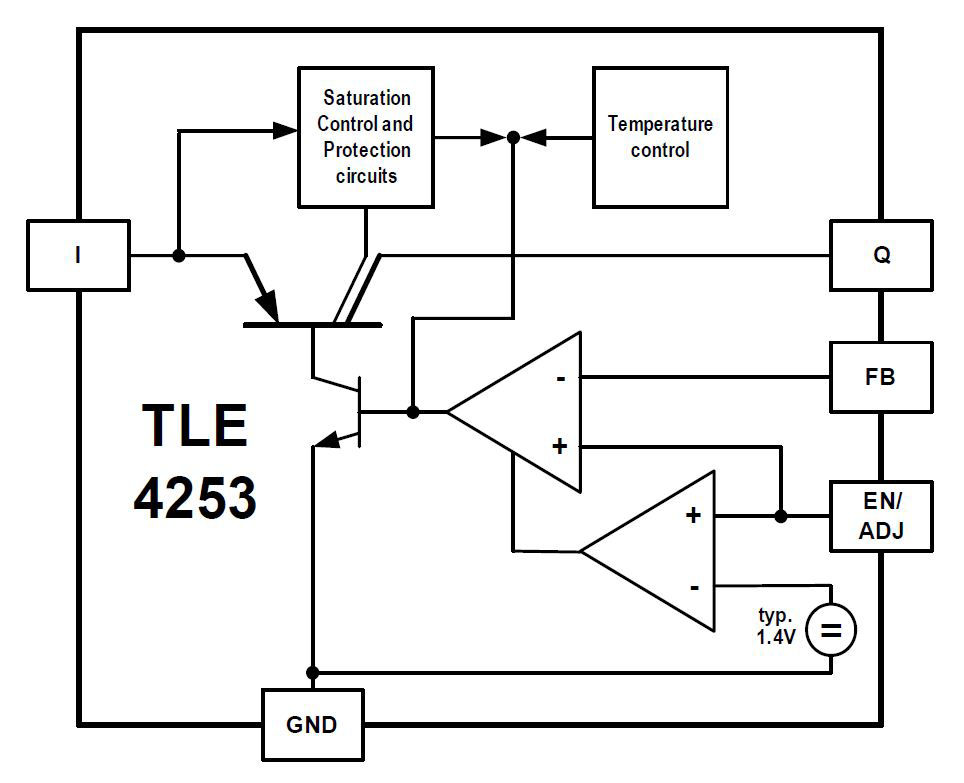

TLE4253-Block-Diagram
TLE4253-Block-Diagram
TLE4253-Block-Diagram TLE4253-Block-Diagram TLE4253-Block-Diagram
×
