Active and preferred
RoHS Compliant

TLE4252D

The TLE4252D is a monolithic integrated low-drop voltage tracking regulator in a very small SMD package PG-TO252-5-11.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4252D
TLE4252D
ea.
Data Sheet

Product details

  • Accuracy
    0.5 %
  • Base Product
    TLE4252xx
  • Dropout Voltage
    280 mV
  • Early Warning
    No
  • Enable (=Inhibit)
    Yes
  • Family
    OPTIREG™ linear Trackers
  • Hold
    No
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3.5 V to 40 V
  • Output Current max
    250 mA
  • Output Voltage Type
    Tracking
  • Over Voltage Protection
    No
  • Planned to be available until at least
    2038
  • Power Fail
    No
  • Power Good
    No
  • Qualification
    Automotive
  • Quiescent Current
    100 µA
  • Regulator Type
    Trackers
  • Reset
    No
  • Status Output
    No
  • Watchdog
    No
Recommended
OPN
TLE4252DATMA1
Product Status active and preferred
Infineon Package
PG-TO252-5
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-5
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLE4252: Designed for automotive off-board systems. Reverse polarity, short circuit protection. Output voltage follows reference voltage (up to 40V). Drive loads up to 250mA. Stand-by mode for low current consumption. Ideal for low-power battery applications.

Features

  • O/P track tolerance to reference ≤ ±0.2%
  • Output V adjust down to 1.5 V
  • 250 mA output current capability
  • Enable function
  • Very low current consumption in OFF mode
  • Wide operation R: up to 40 V
  • O/P protected against short circuit GND
  • Over temperature protection
  • Reverse polarity proof
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Efficient and accurate V replication
  • Robust tracking supply

Diagrams

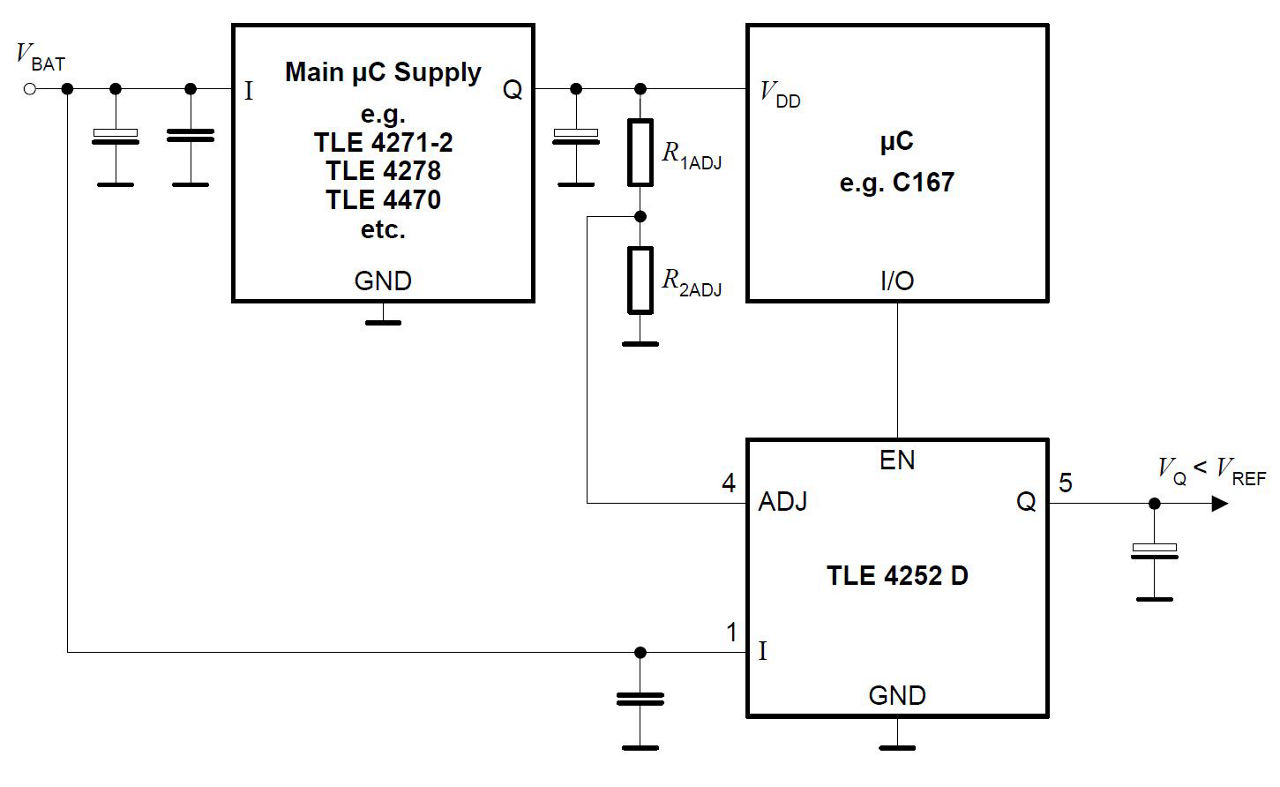

TLE4252-Application-diagram
TLE4252-Application-diagram
TLE4252-Application-diagram TLE4252-Application-diagram TLE4252-Application-diagram

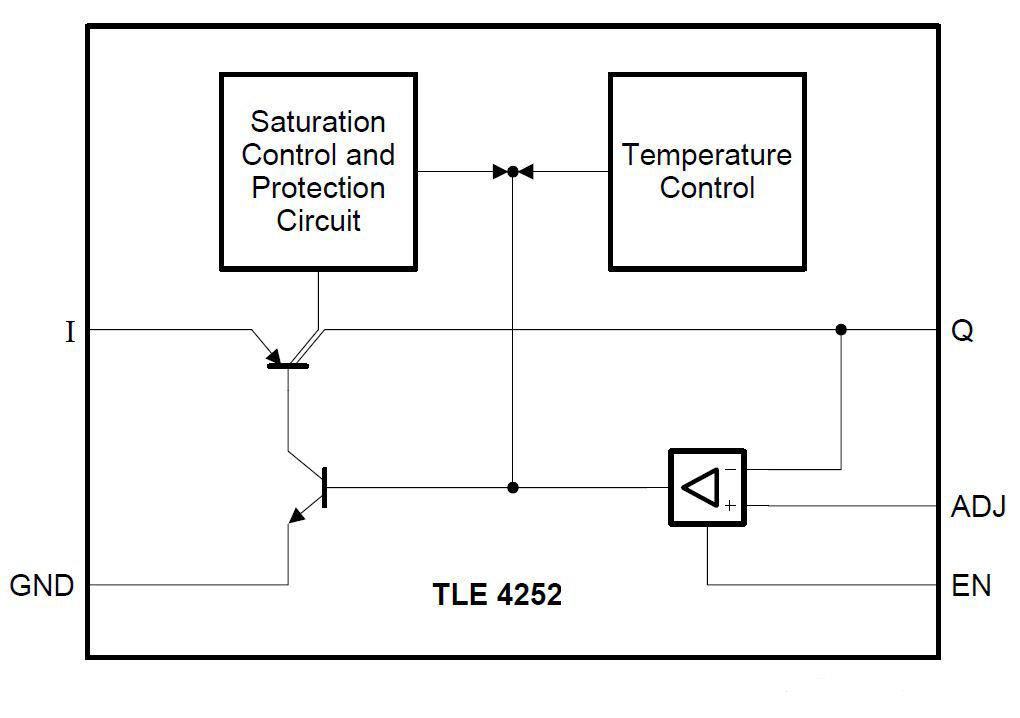

TLE4252-Block-diagram TLE4252-Block-diagram TLE4252-Block-diagram
×
