TDM22544D

TDM22544D Dual Phase 140 A OptiMOS™ Power Module
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TDM22544D
TDM22544D
Data Sheet

Product details

  • Dimensions
    10x9x8 mm
  • Features
    Analog temperature monitor, on-chip MOSFET current sensing and reporting, cycle-by-cycle overcurrent protection, overtemperature protection, thermal shut-down
  • Input Voltage
    4.25 V to 16 V
  • Iout
    80 A
  • Iout max
    160 A
  • Moisture Sensitivity Level
    3
  • Output Voltage
    0.225 V to 3 V
  • Package
    LG-MLGA-72
  • Qualification
    Industrial
  • Switching Frequency max
    2 MHz
  • Type
    Multiphase
Recommended
OPN
TDM22544DXUMA1
Product Status active and preferred
Infineon Package
LG-MLGA-72
Package Name N/A
Packing Size 300
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
LG-MLGA-72
Package Name -
Packing Size 300
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

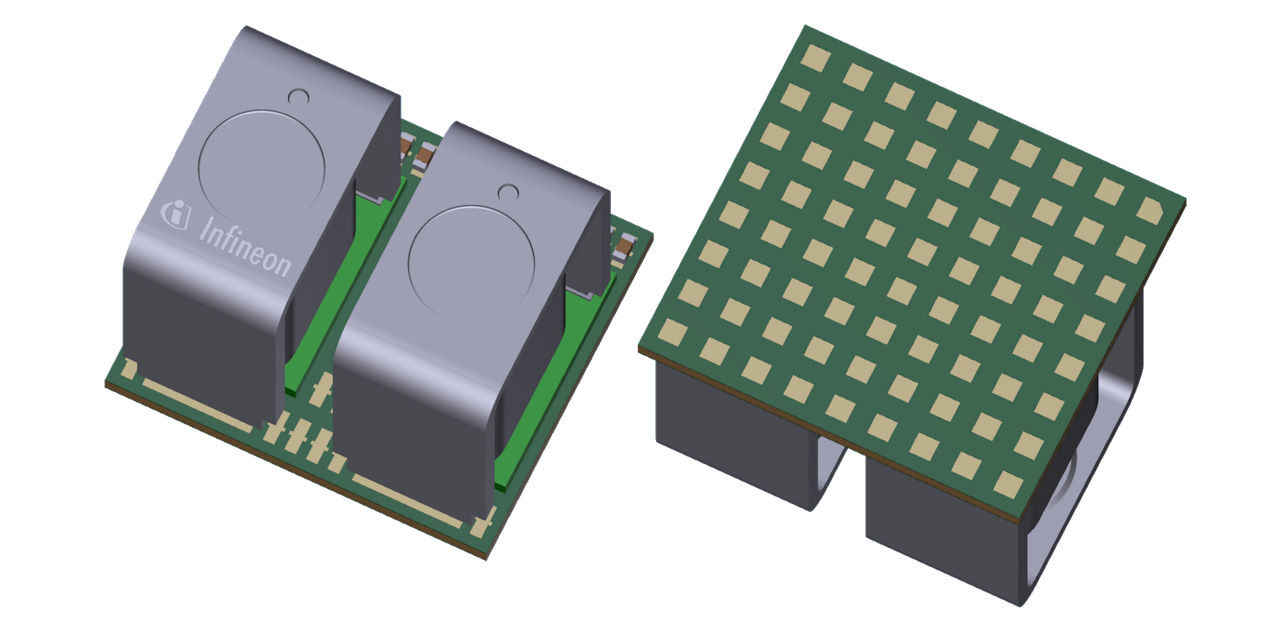

The dual OptiMOS™ 6 power module co-packages two smart power stages, two power inductors, and decoupling capacitors to implement two independent synchronous buck converters into a small 10x9x8 mm package. The package is optimized for PCB layout, heat transfer, driver/MOSFET control timing, and minimal switch node ringing.

Features

  • Integrated 5.3uF input capacitors
  • Integrated decoupling capacitors
  • Integrated bootstrap capacitors
  • 70 A per stage thermally managed
  • 120 A per phase peak
  • 4.25 V to 16 V input voltage
  • Current sensing and reporting at 8 uA/A
  • 8 mV / C temperature analog output
  • 0.225 V to 3 V output voltage range
  • Operation up to 2 MHz
  • Cycle-by-cycle OCP & flag

Benefits

  • High power density solution (>1 A/mm2)
  • Best-in-class TCO
  • Ease of use
  • Improves thermal management
  • Improves system efficiency
  • Improves signal integrity
  • Enables reduction in PDN losses
