SAK-TC399XE-256F300S BD

Trace, Measurement and Calibration in the target system
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SAK-TC399XE-256F300S BD
SAK-TC399XE-256F300S BD
Data Sheet

Product details

  • # of cores / lockstep cores
    6/4
  • A/D Input Lines
    124
  • ASIL/SIL support
    ASIL-D/SIL-3
  • CAN Nodes
    12
  • Classification
    ISO 26262-compliant
  • DMA Channels
    128
  • DSP Functionality
    Yes
  • eMMC
    Yes
  • External Bus Interface
    yes
  • Family
    AURIX™ 2G
  • Floating Point Unit
    Yes
  • Hardware Accelerator
    no
  • LIN
    12
  • Number of ADC Modules
    12
  • On-chip Clock Generation
    yes
  • On-chip Voltage Regulator
    yes
  • Oscillator Watchdog
    yes
  • Program Memory
    16 MByte
  • Real Time Clock
    yes
  • SPI
    6
  • SRAM (incl. Cache)
    6912 kByte
  • Temperature
    -40°C - +125°C
  • Type of Memory
    Flash
  • Watchdog Timer
    yes
OPN
TC399XE256F300SBDKXUMA2
Product Status on request

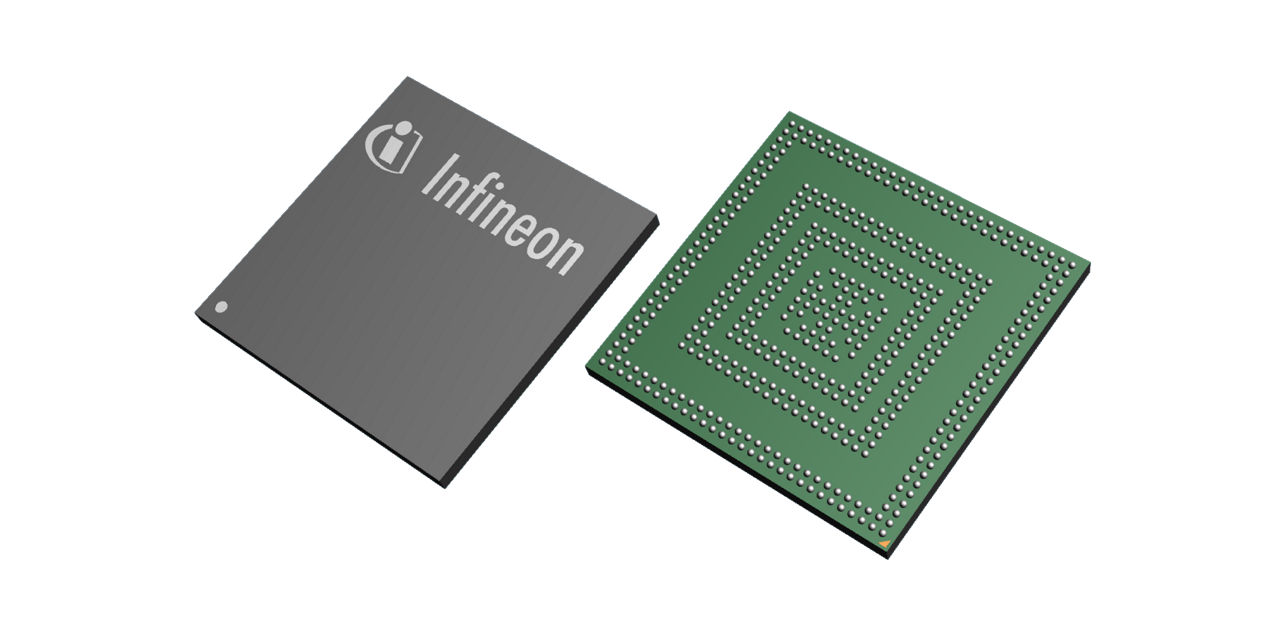

Infineon Package
PG-LFBGA-516
Package Name N/A
Packing Size 500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package
PG-LFBGA-516
Package Name -
Packing Size 500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The SAK-TC399XE-256F300S BD belongs to the TC39x Emulation Devices, . It has the same feature set as the TC39x standard family with additional debug and tracing capabilities. The TC39xXE offers support for calibration, rapid prototyping, instrumentation and debug/emulation.TC39xXE is based on TC39x. It can be used to emulate:
  • TC39x standard devices (6 CPUs)
  • TC38x standard devices (4 CPUs)
MCDS tracing can be evaluated using the free of charge MCDS Trace Viewer tool which comes with the DAS installation www.infineon.com/DASCompatibility Full compatibility with TC39x standard devices. For TC38x systems the following points need to be considered:
  • Thermal design and power supply need to support the higher TC39xXE power consumption
  • SW needs to be tolerant to the different CHIPID and JTAGID values
  • The upper 12 ASCLIN modules (out of 24) of TC38x may not be used

Features

  • 6 TriCore running at 300 MHz
  • 16 MB flash/ ECC protection
  • 6,9 MB SRAM/ ECC protection (additional 4 MB EMEM)
  • 1 Gbit Ethernet, 12xCAN FD  , 2xFlexRay, 12xLINs,  4xQSP , 2xI²C , 25xSENT, 6xPSI, 2xHSSL, 4xMSC , 1x eMMC/SDIO, GTM, CCU6, GPT12, HSM
  • LFBGA-516 package
  • Single voltage supply 5 V or 3.3 V
  • Temperature : 40°C to 125°C
  • 4 MB Extension Memory (EMEM) for calibration and tracing (2 MB)
  • Multi-Core Debug Solution (MCDS)
  • Parallel and time aligned trace of cores and busses
  • Powerful trigger conditions
  • On-chip logic analyzer functions
  • Additional DAP interface (DAPE) for connecting a second independent tool
  • Injector for faults and stress (IFS)
  • Aurora Gigabit Trace (AGBT) support
  • CPUs have full access to all emulation resources, enabling all kind of interfaces (e.g. Ethernet) as tool connection

Benefits

  • Higher software/system quality and faster time to market with best in class:
  • Multi-core debugging and trace
  • Trace based measurement
  • Rapid prototyping
  • Calibration
  • Strong AURIX 1G compatibility
  • Maintains investment in tools and knowledge
  • Early availability of attractive tooling solutions
  • Minimizes the  risk
  • Scalable tooling options from very cost effective to highest performance
  • Consistent architecture over the whole family for all packages
  • Different tool combinations due to two DAP interfaces
  • Very cost effective trace
